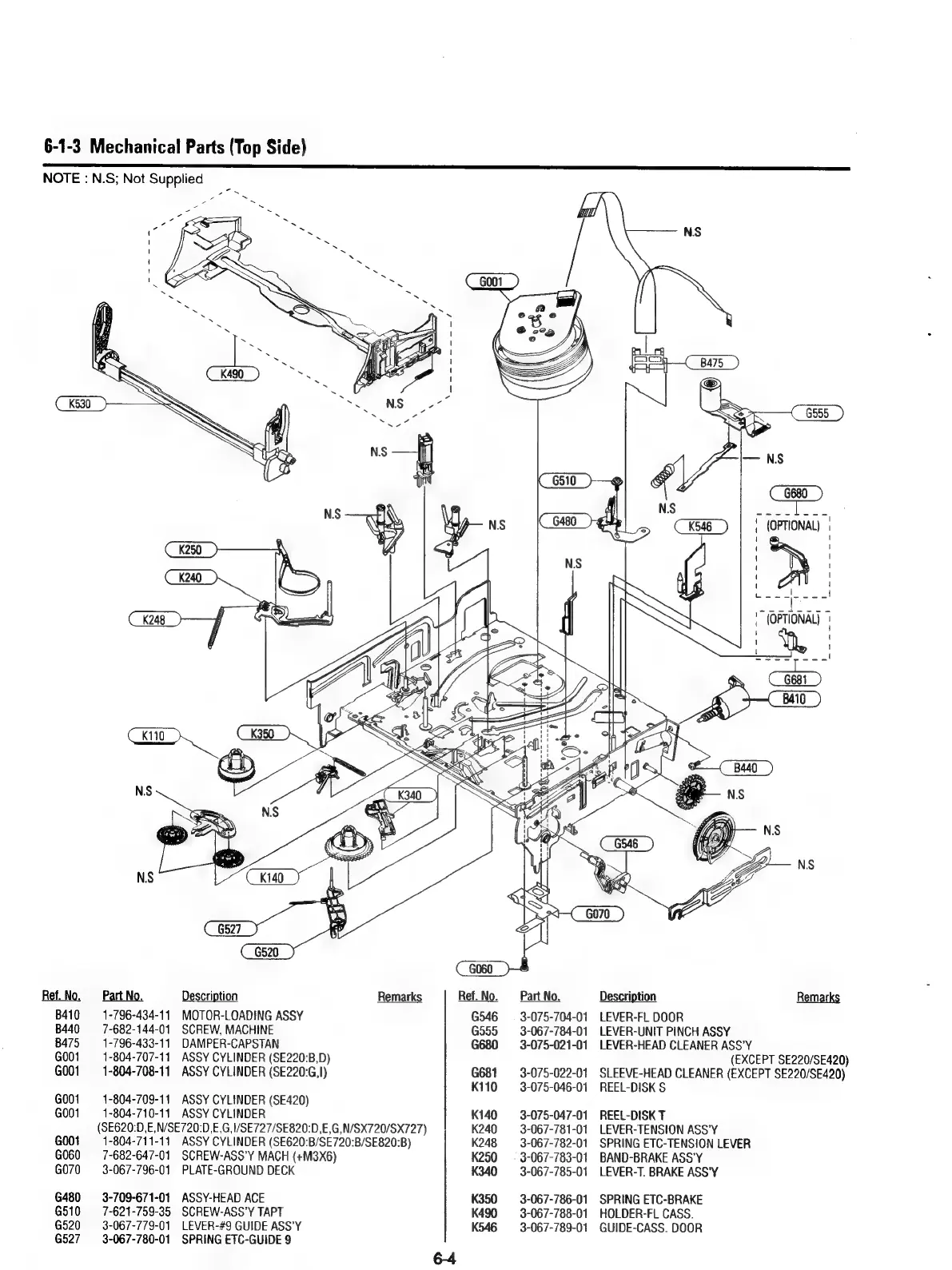

6-1-3 Mechanical Parts (Top Side)
NOTE : N.S; Not Supplied
Ref. No.
B410
B440
B475,
G001
G001
G001
G001
G001
G060
G070
G480
G510
G520
G527
m—e ee -—-—-/
Part No. Description Remarks Ref.No. Part No.
1-796-434-11 MOTOR-LOADING ASSY G546 = 3-075-704-01
7-682-144-01 SCREW, MACHINE G555 3-067-784-01
1-796-433-11 DAMPER-CAPSTAN G680 3-075-021-01
1-804-707-11 ASSY CYLINDER (SE220:B,D)
1-804-708-11 ASSY CYLINDER (SE220:G,1) G681 —3-075-022-01
K110 3-075-046-01
1-804-709-11 ASSY CYLINDER (SE420)
1-804-710-11 ASSY CYLINDER K140 3-075-047-01
(SE620:D,E,N/SE720:D,E,G,I/SE727/SE820:D,E,G,N/SX720/SX727) K240 3-067-781-01
1-804-711-11 ASSY CYLINDER (SE620:B/SE720:B/SE820:B) K248 3-067-782-01
7-682-647-01 SCREW-ASS’Y MACH (+M3X6) K250 = 3-067-783-01
3-067-796-01 PLATE-GROUND DECK K340 3-067-785-01
3-709-671-01 ASSY-HEAD ACE K350 3-067-786-01
7-621-759-35 SCREW-ASS’Y TAPT K490 3-067-788-01
3-067-779-01 LEVER-#9 GUIDE ASS’Y K546 3-067-789-01
3-067-780-01
SPRING ETC-GUIDE 9
Remarks
Description
LEVER-FL DOOR
LEVER-UNIT PINCH ASSY
LEVER-HEAD CLEANER ASS’Y
(EXCEPT SE220/SE420)
SLEEVE-HEAD CLEANER (EXCEPT SE220/SE420)
REEL-DISK S$
REEL-DISK T
LEVER-TENSION ASS’Y
SPRING ETC-TENSION LEVER
BAND-BRAKE ASS’Y
LEVER-T. BRAKE ASS'Y
SPRING ETC-BRAKE
HOLDER-FL CASS.
GUIDE-CASS. DOOR
