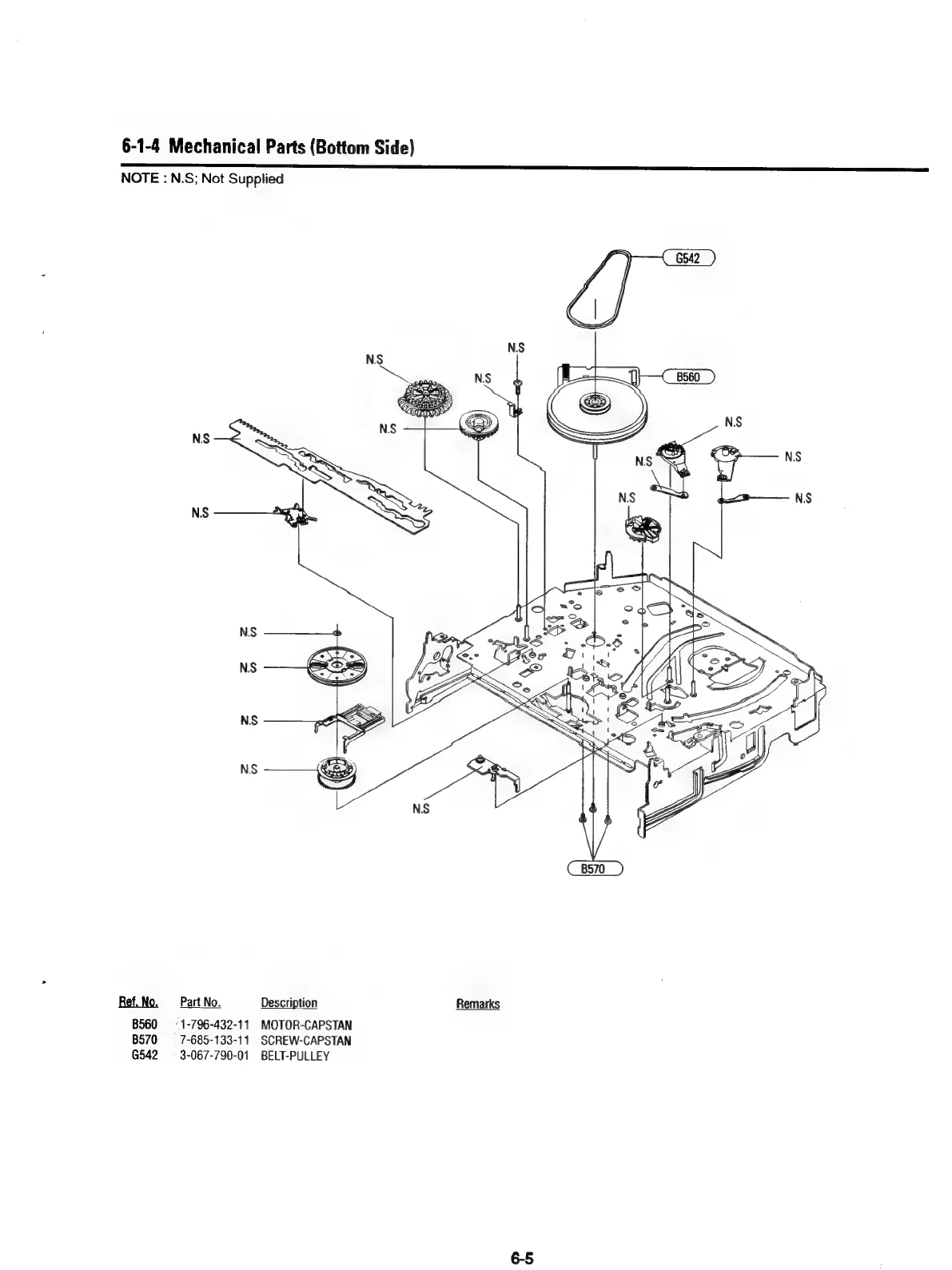

6-1-4
Mechanical
Parts
(Bottom
Side)
NOTE
:
N.S;
Not
Supplied
Bef.No.
Part
No.
Description
Remarks
B560
=:
1-796-432-11
MOTOR-CAPSTAN
B570
=
7-685-133-11
SCREW-CAPSTAN
G542
=
3-067-790-01
BELT-PULLEY
6-5
