Connecting
a
satellite
tuner,
CATV
system
The

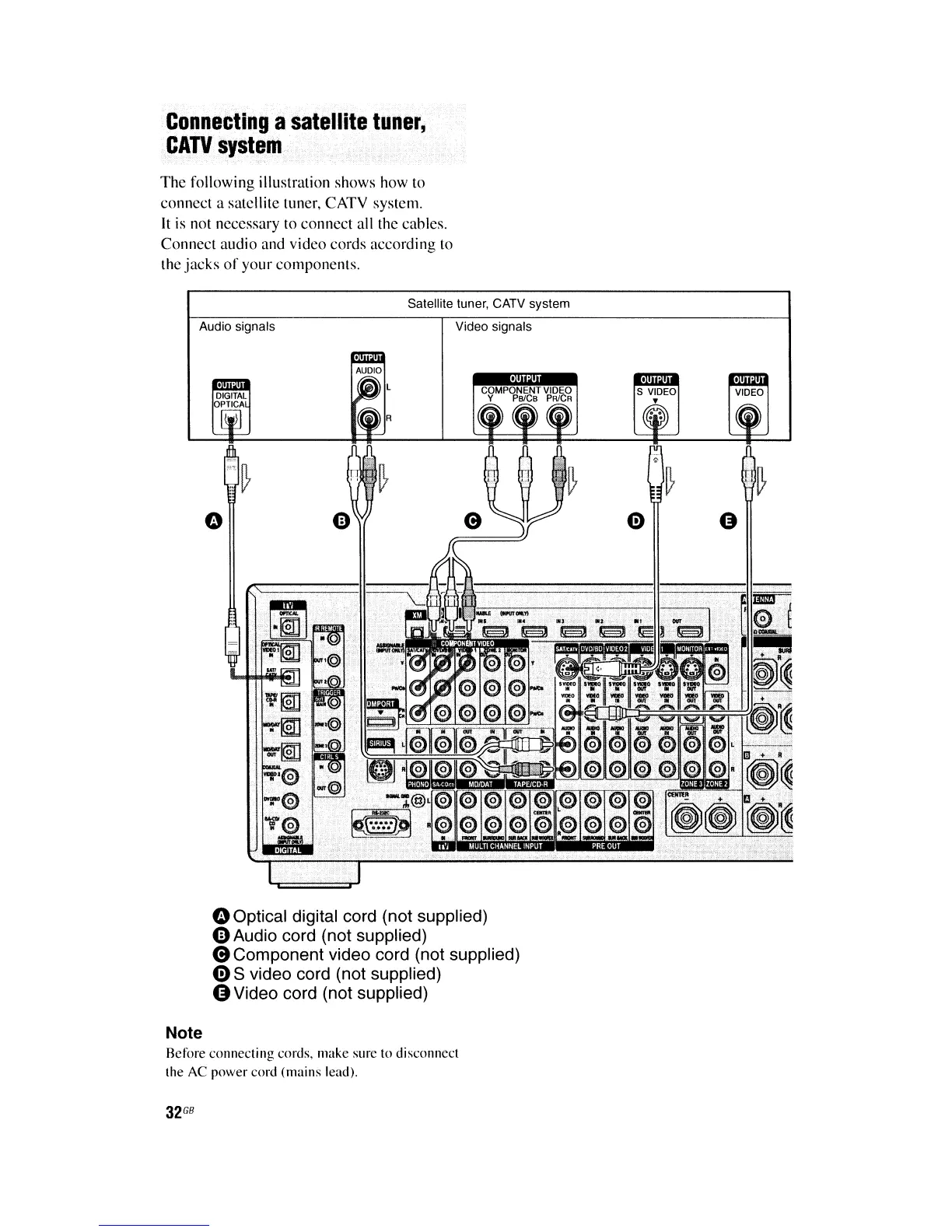

following illustration shows how to
connect a satellite tuner, CATV system.
It
is
not necessary to connect all the cables.
Connect audio and video cords according to
the
jacks
of
your components.
Satellite tuner, CATV system
Audio signals Video signals
oOptical digital cord (not supplied)
oAudio cord (not supplied)
eComponent
video cord (not supplied)
e S video cord (not supplied)
GVideo cord (not supplied)
Note
Before
connecting cords. make sure to disconnect
the
AC
power
cord (mains lead).
