HEADPHONE OUT & MONITORING
The Si Compact features a comprehensive monitoring system. The active monitor signal is always
available on the headphone output (located below the armrest near fader 1) with level controlled
by the Monitor Level encoder but can also be patched in parallel to other outputs on the console,
see PATCHING.
The monitor signal nominally follows the main LR signal but a number of sources can be selected
from the MONITOR page on the touch screen.

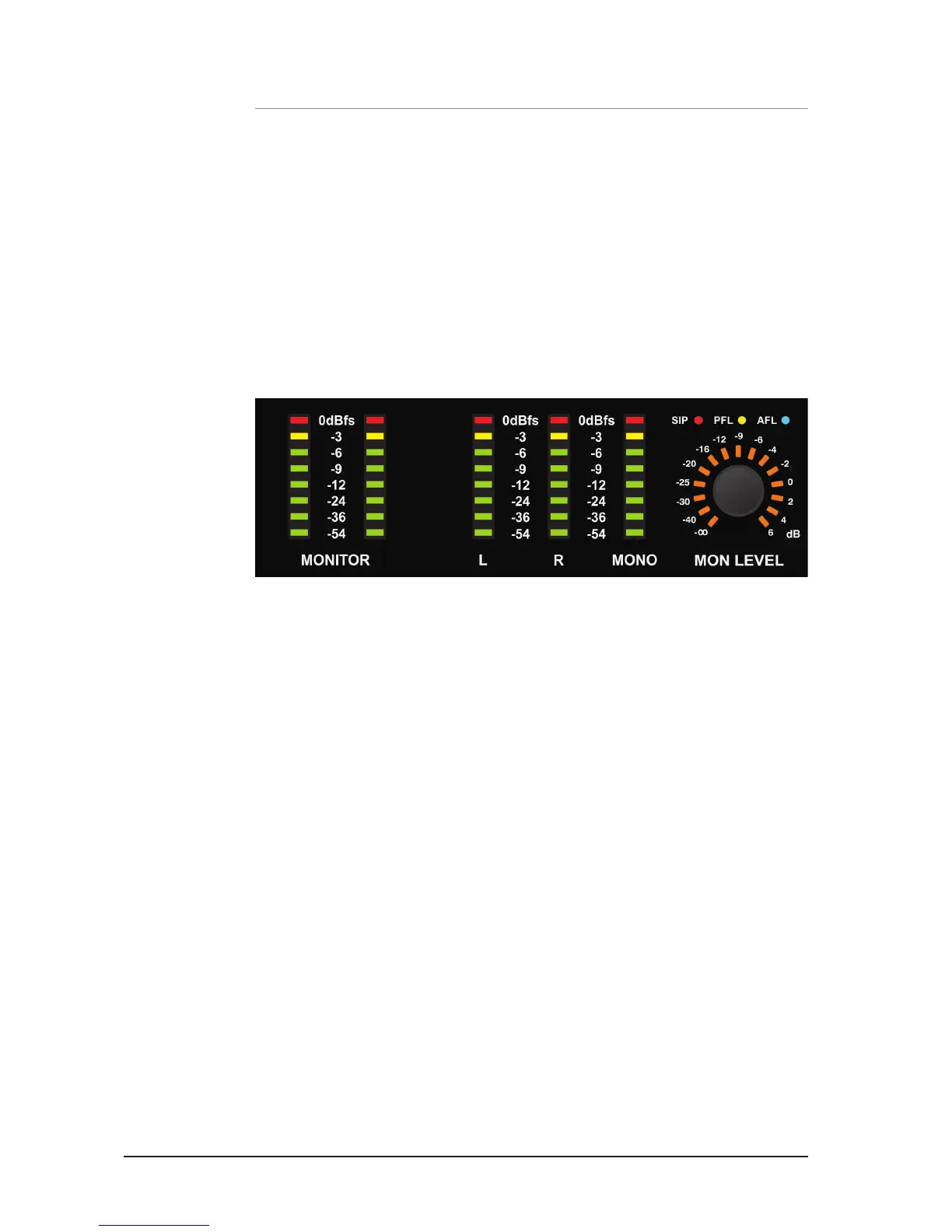

The stereo MONITOR meters provide a visual indication of the overall level in the monitor system.
The selected monitor source is always over-ridden by any active AFL or PFL signal, the presence of
such is indicated by illumination of the PFL or AFL lights and the illumination of the SOLO CLEAR key.
