4.14.1 Firmware flash programming
The latest firmware binary can be downloaded from STSW-WBC2FW.
To load the firmware into STWBC2:
Step 1. Run the STM32CubeProgrammer.exe
Step 2. Select STLINK, set the parameters as shown in the picture and click [Connect]

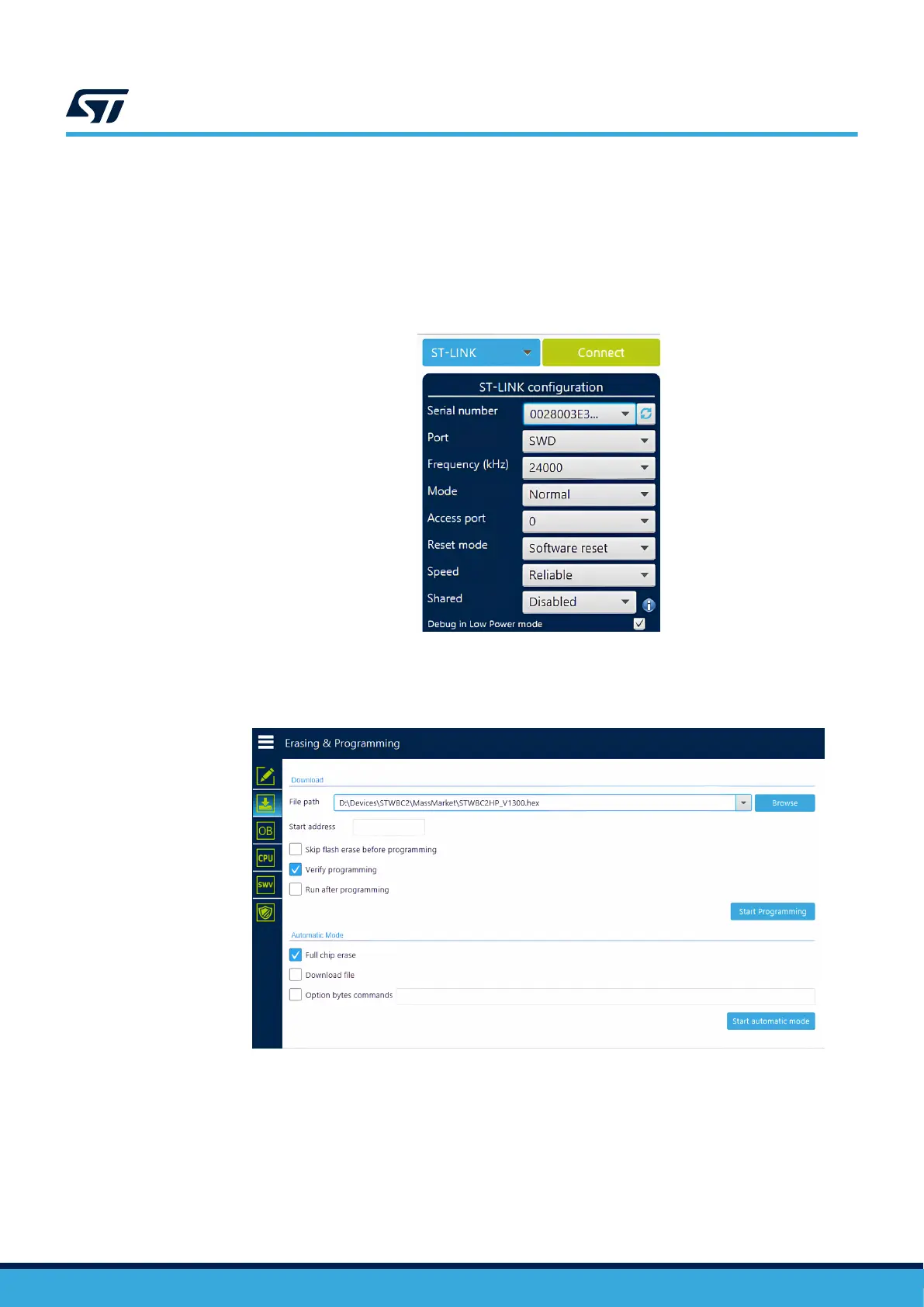

Figure 11. STLINK parameters
Step 3. Choose [Erasing and Programming], choose the path to the firmware file and click
[Start Programming]
Figure 12. Programming the chip
Step 4. When the process is finished, restart the board
Step 5. You can check the firmware version in the GUI
UM3286
Device description and operation
UM3286 - Rev 1
page 19/84
