7.2.4
VIN, Vbuck, and Vdoubler
Use wider tracks for Vin, Vbuck and Vdoubler
. The input capacitors shall be as close to the IC as possible. Place
the DC-DC buck components close to STWBC2 to minimize area of the resulting current loops.

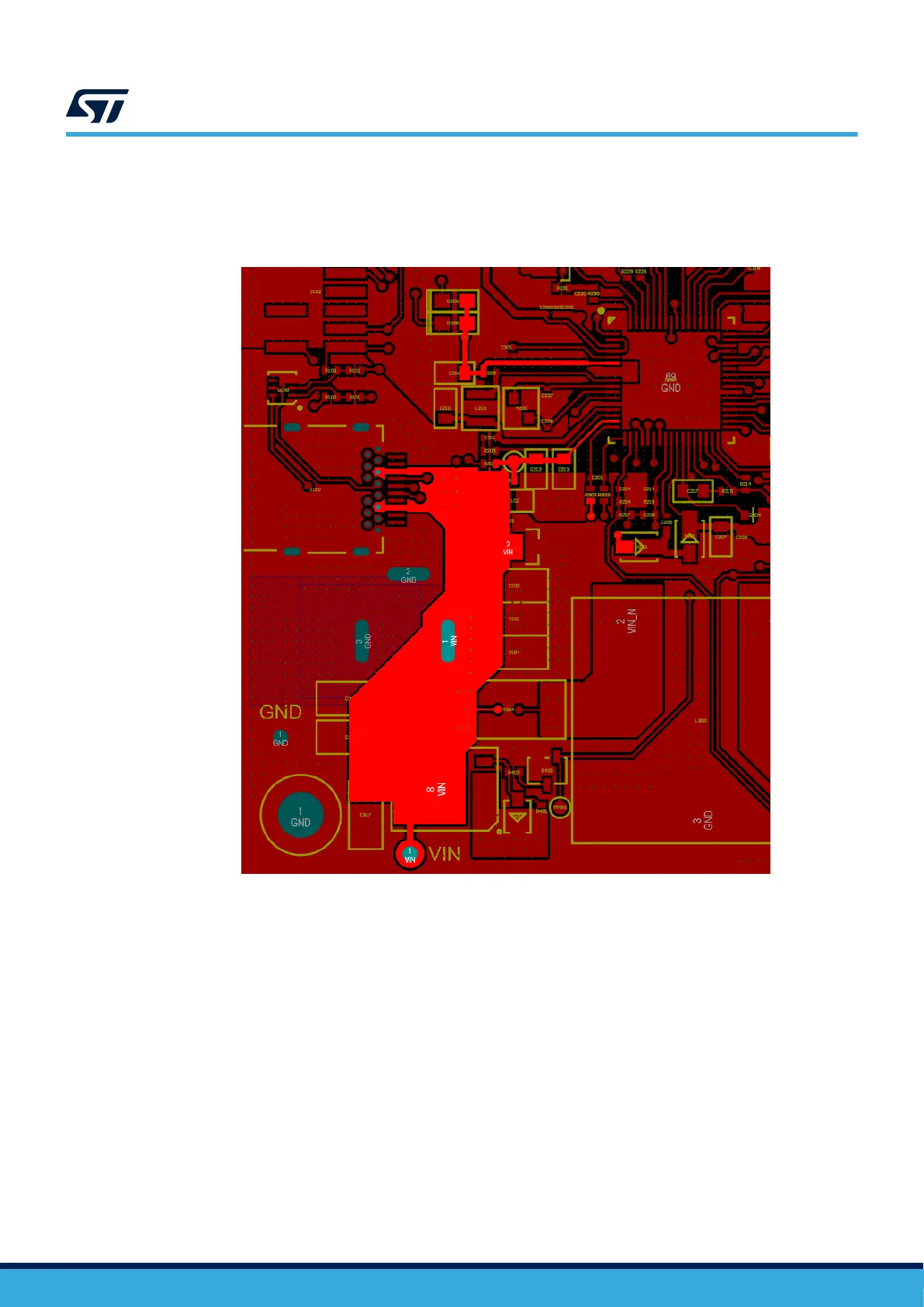

Figure 51.
Larger tracks of DC-DC buck, VIN
UM3286
Designing a wireless power transmitter based on STEV
AL-WBC2TX70 evaluation board
UM3286
-
Rev 1
page 67/84
66
68
