6.6.2
Analog and digital ping

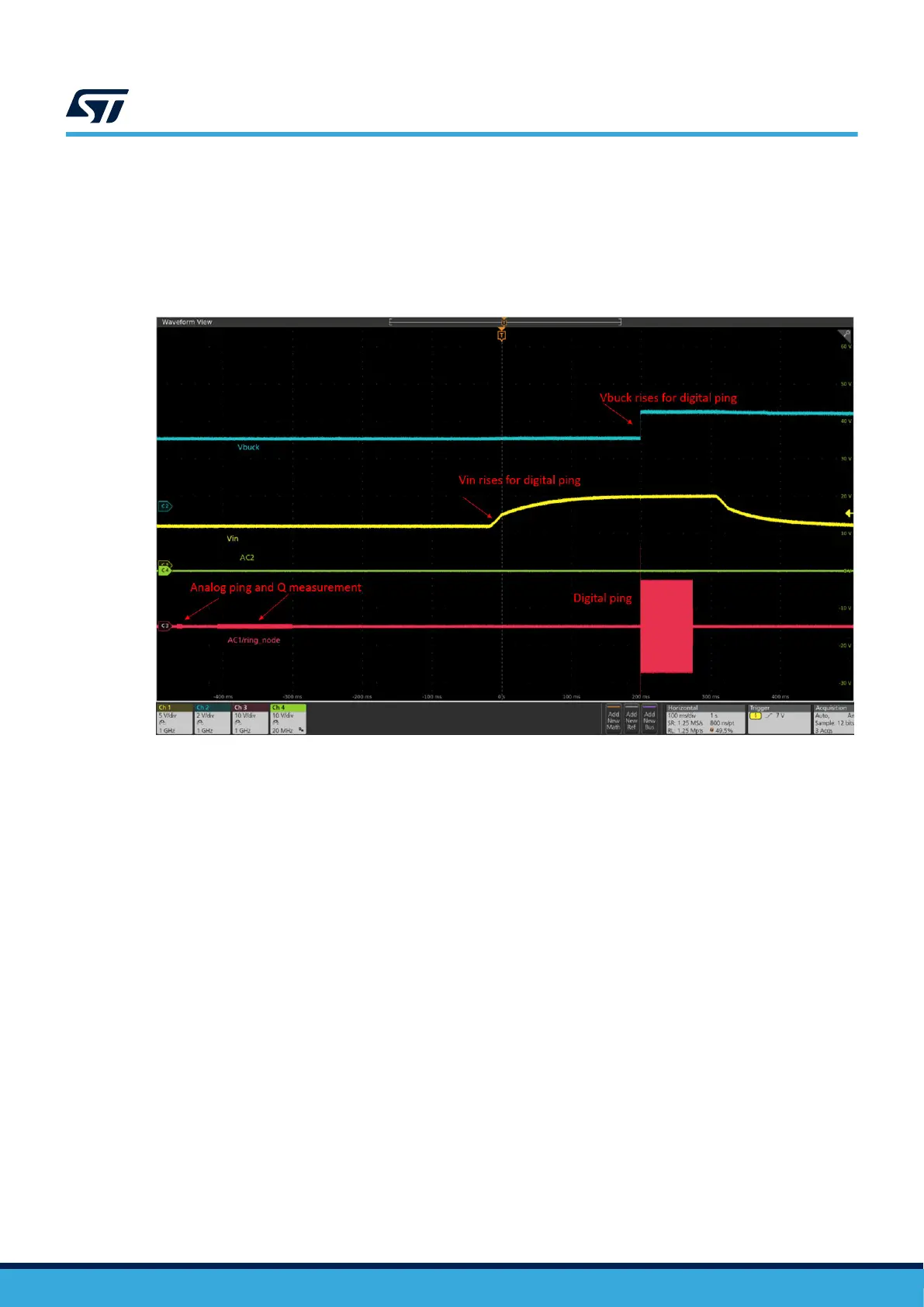

The following figure shows analog ping (presence detection) on AC1. Then a Q factor measurement follows.
After that, the USB PD raises its voltage from 5 V to 9 V
, the Vbuck is raised to 5 V and finally a digital ping is
executed.
Note:
AC2 is inactive as the ping is performed in half bridge mode.
Figure 41.
Analog and digital ping
UM3286
STEV
AL-WBC2TX70 description
UM3286
-
Rev 1
page 59/84
58
60
