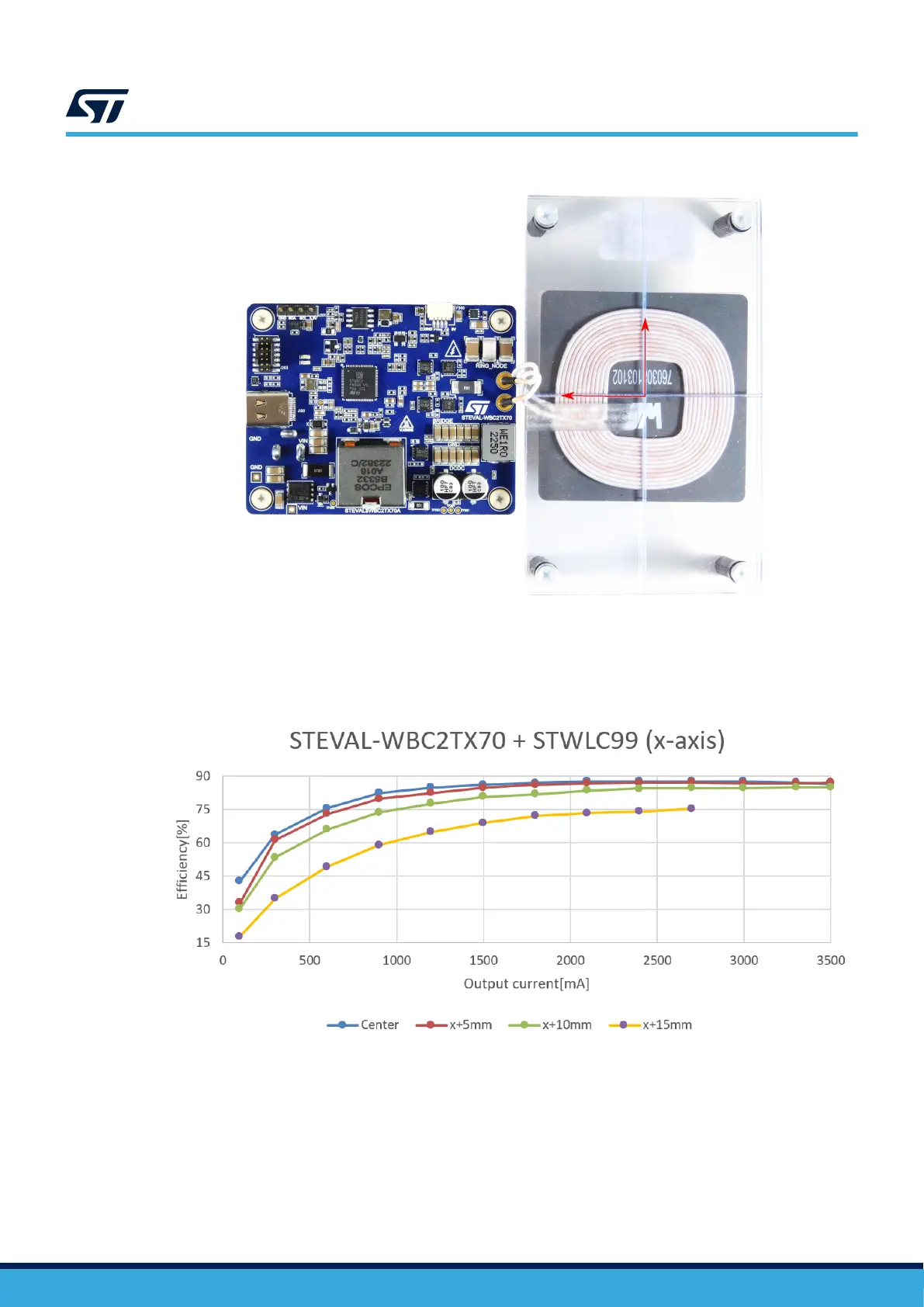

Figure 43.
Setup for offset test
X
Y
The maximum efficiency achieved with this setup was 87.66%.
Efficiency curves for various misalignments in the X and Y axis are shown in the figures below:
Figure 44.
X-axis offset impact on efficiency
