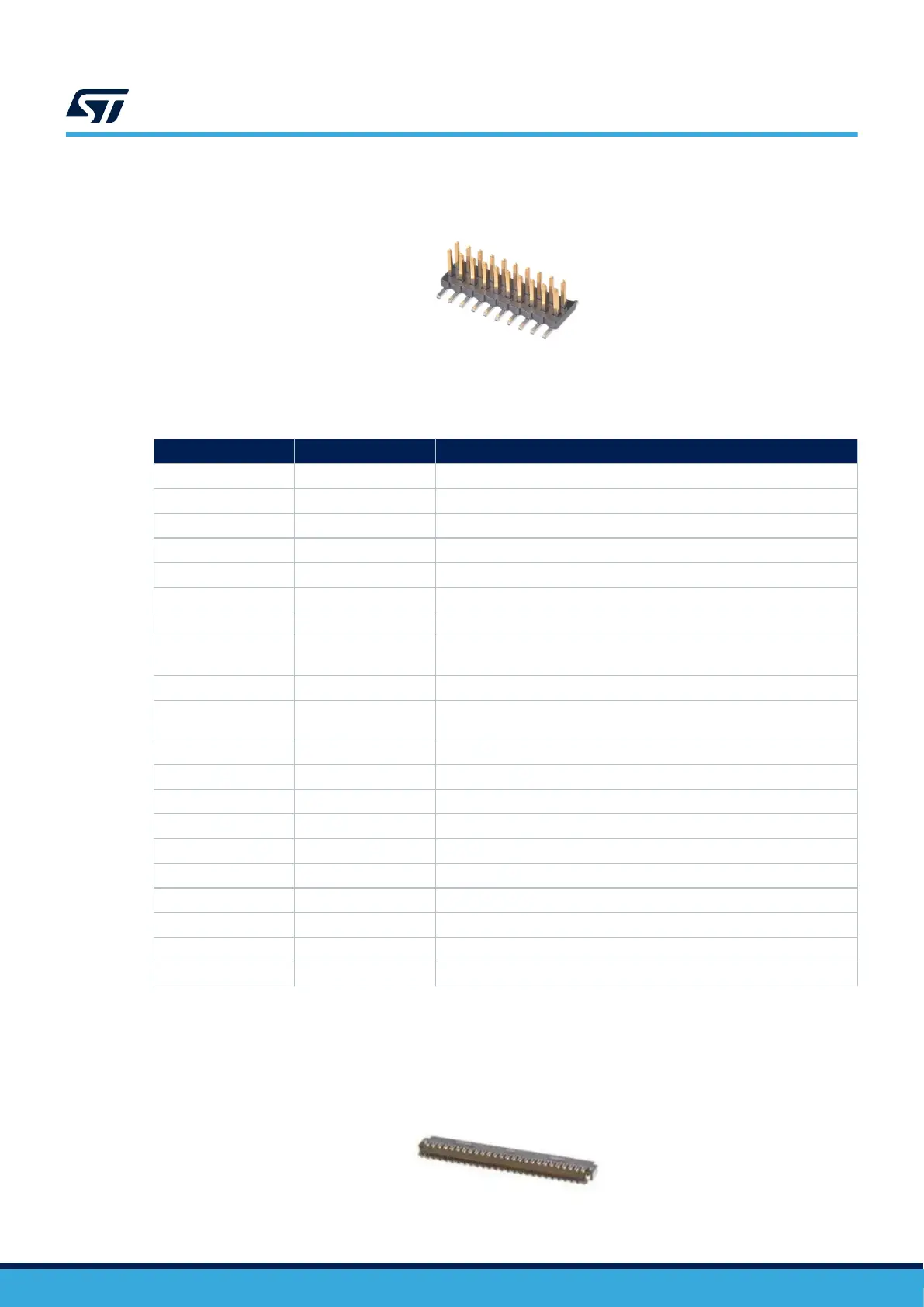

15.8 MIPI20 connector (CN18)
Figure 21. MIPI20 connector CN18
The related pinout for the MIPI20 connector is listed in Table 25.
Table 25. MIPI20 connector CN18 pinout
MIPI20 pin CN18 Designation
1 VCC Target VCC
2 SWDIO/JTMS Target SWDIO using SWD protocol or target JTMS using JTAG protocol
3 GND Ground
4 SWCLK/JCLK Target SWCLK using SWD protocol or target JCLK using JTAG protocol
5 GND Ground
6 JTDO/SWO Target SWO using SWD protocol or target JTDO using JTAG protocol
7 KEY Not connected
8 JTDI
Not used by SWD protocol, target JTDI (T_JTDI) using JTAG protocol, only
for external tools
9 GND Ground
10 NRST
Target NRST using SWD protocol or target JTMS (T_JTMS) using JTAG
protocol
11 TgtPwr 5 V target power to the target MCU (to be disconnected)
12 TRACECLK Trace clock
13 TgtPwr 5 V target power to the target MCU (to be disconnected)
14 TRACED0 Trace Data0
15 GND Ground
16 TRACED1 Trace Data1
17 GND Ground
18 TRACED2 Trace Data2
19 GND Ground
20 TRACED3 Trace Data3
15.9 TFT LCD display connector (CN7)
To connect the 1.54-inch TFT LCD display, the STM32H573I-DK board includes a 0.3 mm pitch FPC connector
(
CN7).
Figure 22. TFT LCD display connector CN7
UM3143
MIPI20 connector (CN18)
UM3143 - Rev 1
page 34/53
