Figure 4
and
Figure 5
show the locations of these features on the STM32H573I-DK.

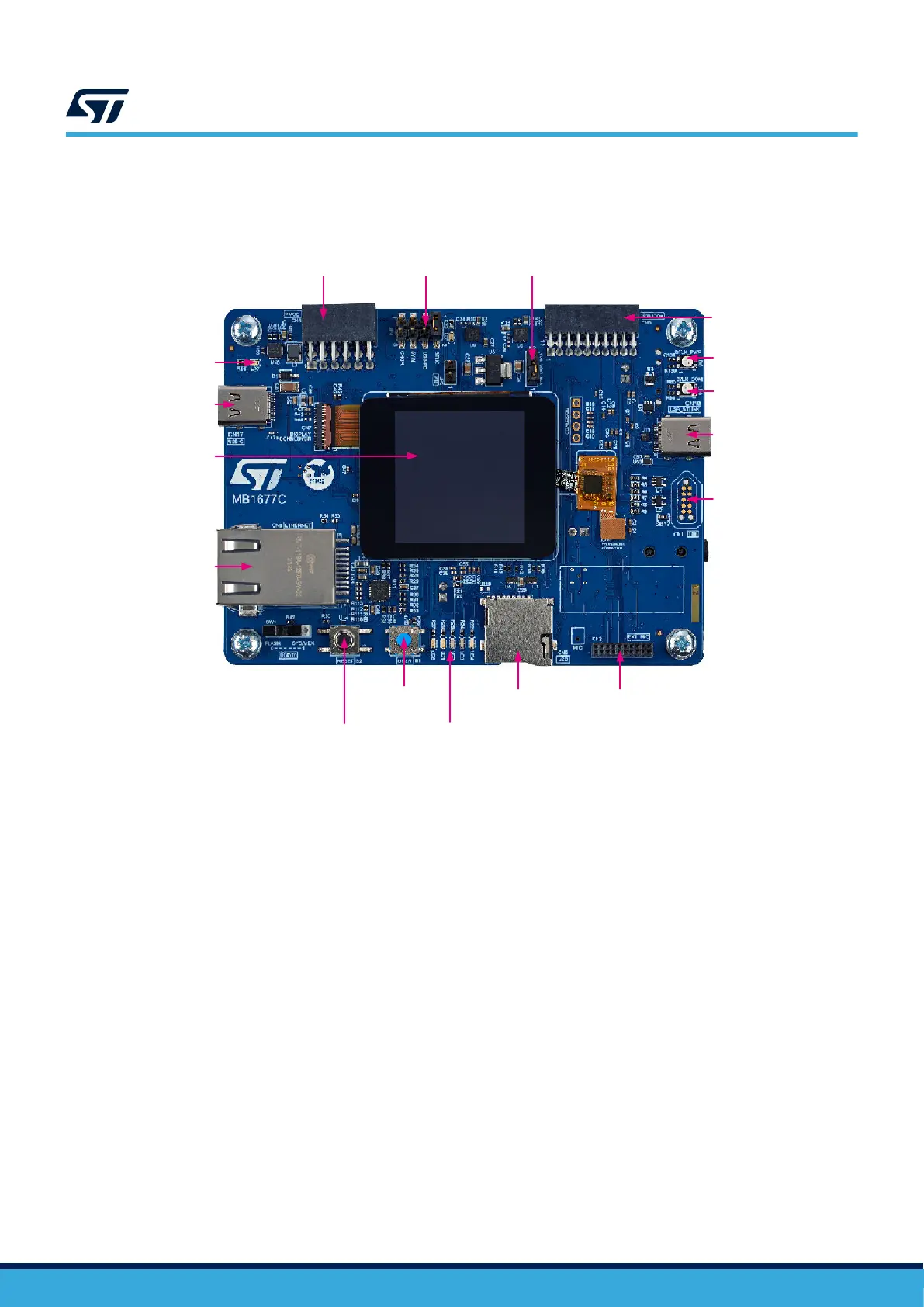

Figure 4.
STM32H573I-DK PCB layout: top side
DT71724V1
Pmod™
connector (CN6)
Power source
selection (JP4)
VDD_MCU power
selection (JP2)
STMod+
connector (CN3)
ST
-LINK power
LED (LD8)
ST
-LINK COM
LED (LD9)
ST
-LINK USB
connector (CN10)
T
AG connector
(CN1)
Audio connector
(CN2)
microSD
connector (CN5)
User LEDs
(LD1, LD2, LD3, LD4)
User button
(B1)
Reset button
(B2)
USB V
BUS
LED
(LD7)
U
s
er
U
SB
c
on
ne
ct
or
(
C
N1
7)
LCD (HW4)
Ethernet RJ45
connector (CN8)
UM3143
Hardware layout
UM3143
-
Rev 1
page 9/53
