STIHL TS 460 19

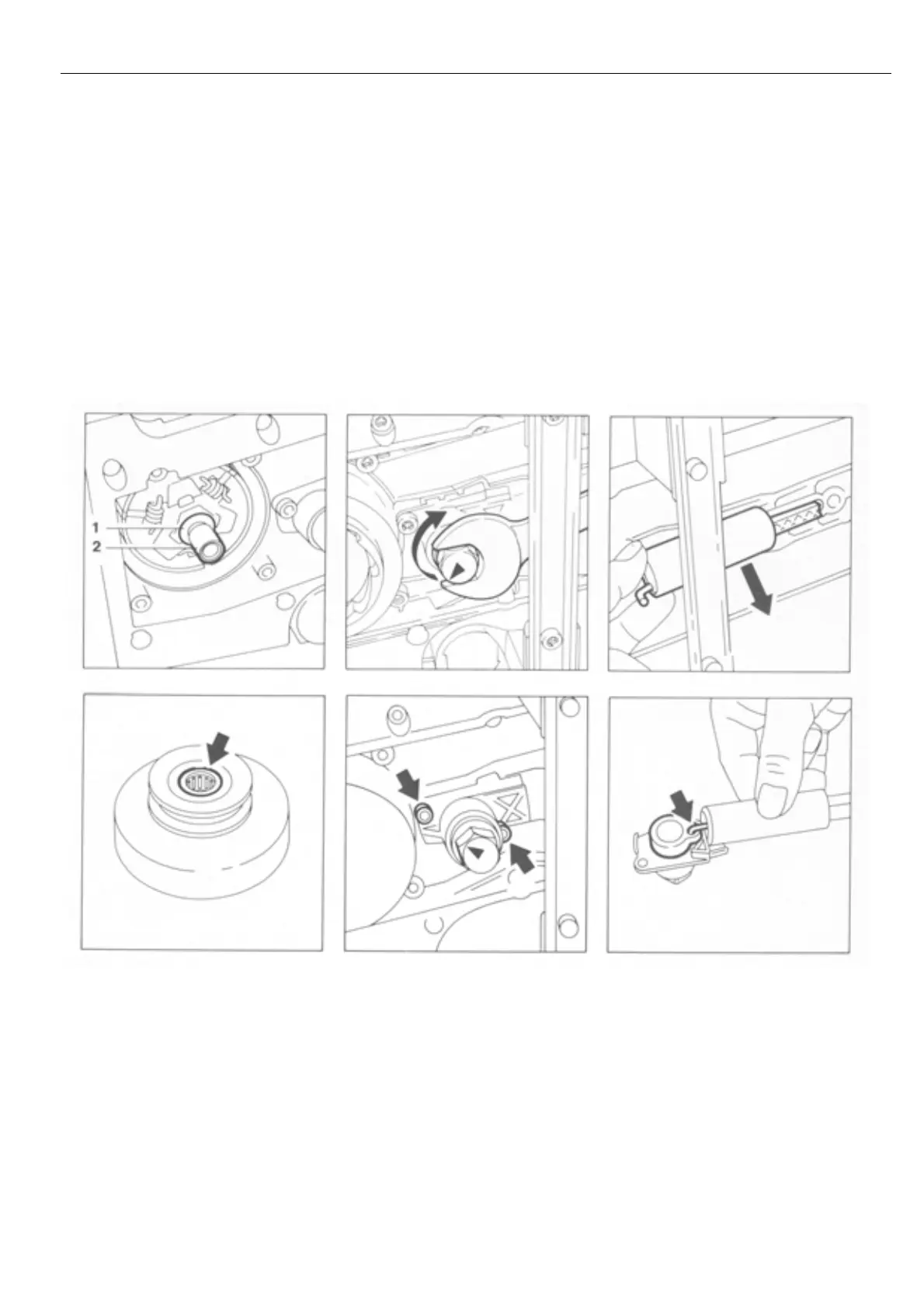

3.5 Clamp
Top:
1 = Wheel
2 = Bushing
Bottom:
Properly positioned needle sleeve
Bottom:
Mounting screws
of clamp
Top:
Removing the throttle trigger interlock
Below:
Attaching the tension rod
Top:
Relieving tension of the clamp
- Remove bushing and wheel from
crankshaft stub.
The parts are assembled in
reverse order.
Note: Insert assembly pins on
thicker, beaded side of needle
sleeve and press in from side on
which the clutch drum is located
until they are flush with the inner
edge of the V-belt pulley.
- Remove the V-belt, see 3.3.
-Turn hexagon nut on clamp
counterclockwise until inner
spring is completely slack.
- Take out clamp mounting
screws, remove clamp.
- Remove throttle trigger interlock
from recess in housing.
The parts are assembled in
reverse order.
Note: Insert hooks of tension rod in
hole and put both parts together.
Tighten mounting screws to 4.0 Nm.
