Stihl Cutquik TS 460 User Manual

STIHL TS 460 46

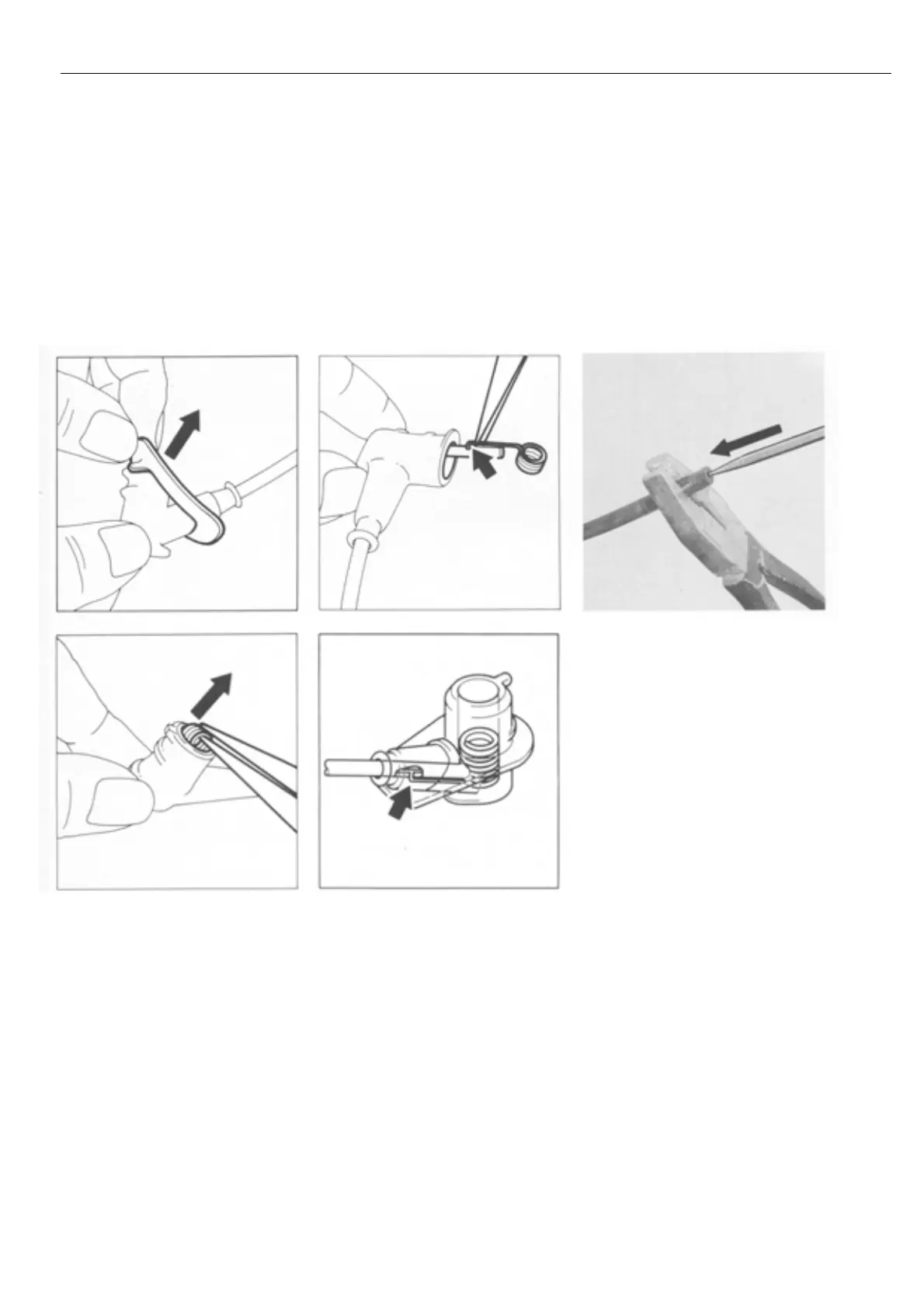

Top:
Removing the dust seal
Bottom:
Removing the torsion spring from the
spark plug terminal
Top:
Attaching the torsion spring
Bottom:
Proper positioning of the torsion
spring in the seat of the spark plug
terminal
Piercing center of ignition
lead
- Pinch the hook of the torsion
spring into the center of the
lead, i.e. about 10 mm from
the end of the lead.
- Pull the lead back into the
terminal so that the torsion
spring locates properly inside it.
- Fit the dust seal on the spark
plug terminal.
- Slide insulating tube and
grommet (thin end first) onto
ignition lead.
Note: Use a pointed tool to pierce
the center of the other end of the
ignition lead which screws onto the
module.
- Mount ignition module, see
6.1.2.2.
- Remove shroud, see 6.1.5.
- Pull the dust seal off the spark
plug terminal and slip it down
and off the ignition lead.
- Use a suitable pair of pliers
to grip the torsion spring and
pull it out of the spark plug
terminal.
- Unhook the torsion spring
from the ignition lead and
slip the spark plug terminal
off the lead.
- Cut new ignition lead to
length (see parts list or cut
to same length as old lead).
- Coat end of the ignition
lead (about 20 mm) with
oil.
- Fit spark plug terminal over
the ignition lead.
- Use suitable pliers to grip the
end of the ignition lead inside
the spark plug terminal and pull
it out.
