TS 410, TS 420
English
21

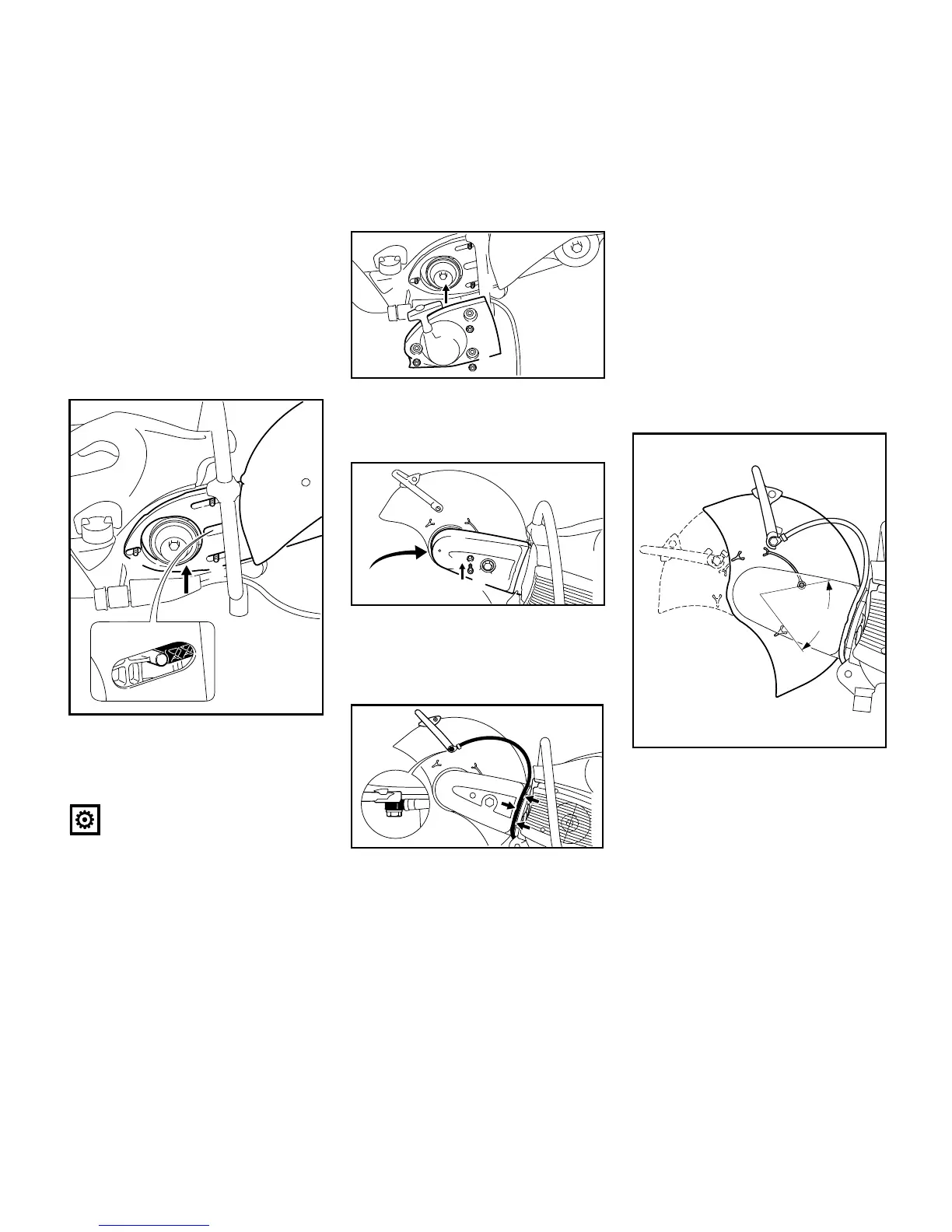

N Insert the square nut into the guide
in the guard and hold it in place
N Screw in the shorter banjo bolt(6)
and washer at the adjusting lever
and tighten up with the combination
wrench
Mount "cast arm with guard" – guard on
the outboard side
N Press the oblong holes(1) in the
"cast arm with guard" on to the
studs(2), guiding the ribbed V
-
belt
over the front pulley
NOTICE
The belt action must run smoothly.
N The belt tensioner(3) must sit close
to the lug(4)
N Fit the "starter cover with rewind
starter"(5) over the studs(2)
N Tighten up the nuts(6) by hand
N Push the V
-
belt guard(7) into place
N Screw in the bolt(8) and tighten up
Connect water connection
N Insert the longer banjo bolt(1)
through the connector(2) of the
water attachment – observe the
position of the connector
N Insert the square nut into the guide
in the guard and hold it in place
N Fit the support with the longer banjo
bolt on the adjusting lever(3) –
screw in the banjo bolt and tighten
with the combination wrench
N Insert the water hose into the guide
in the V
-
belt guard (arrow) from the
shut-off cock towards the guard –
avoid tight radiuses
Checking the adjustment range of the
guard
N Rotate the guard forwards and
backwards as far as possible –
adjustment range (A) must be
limited by the stop pin
Continue as described in the chapter
“Tensioning the V
-
belt”.
1
1
2
2
370BA008 KN
1
2
4
3
6
6
2
2
2
370BA051 KN
6
5
8
370BA077 KN
7
1
1
370BA078 KN
2
3
370BA076 KN
A
