TS 44026

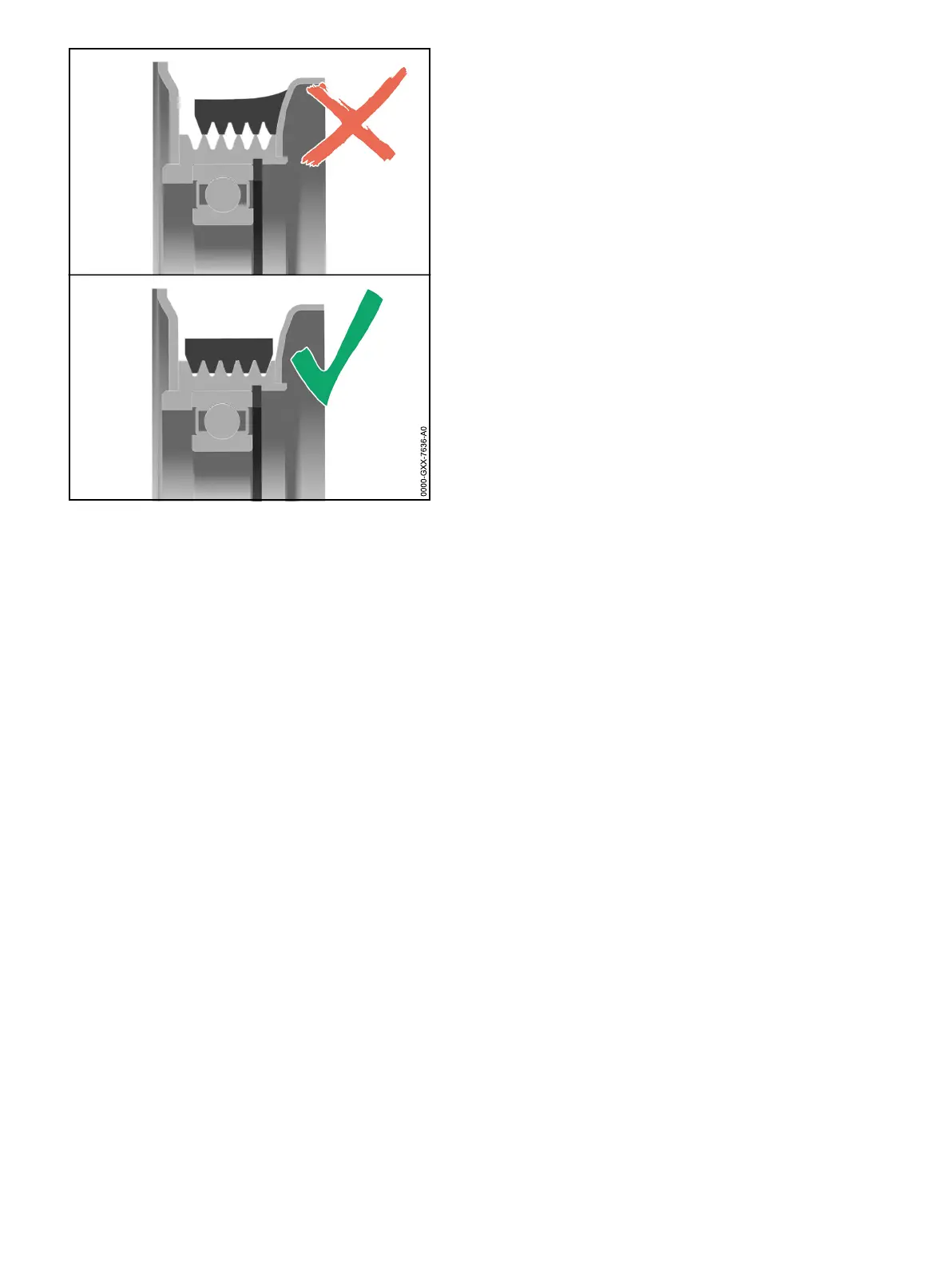

N Carry out a visual inspection. The profile of the V belt
lines up with the profile of the belt pulley.
N Tighten nut (12).
N Actuate top brake lever (7) and hold it there.
N Remove locking pin (arrow) 4130 893 7800.
N Slowly release top brake lever (7).
N Place “starter cover with rewind starter” (4) in
position.
N Insert screws (3) and tighten.
N Place guard (2) in position.
N Insert screw (1) and tighten.
