Siderail Operation Guide
NURSE CONTROL FUNCTIONS (OUTSIDE SIDERAIL)
Button Button Name Button Function
1
Brake LED
LED flashes when Brakes are not engaged.
LED is “Off” when brakes are engaged.
2
Cardiac Chair
Press to activate the Cardiac Chair function.
• The Knee will raise.
• The back will raise to approximately 60
0
• The bed will tilt to approximately −10
0
reverse
Trendelenburg (foot end down).
3
Bed/Litter Up Press to raise the Bed/Litter.
4
Bed/Litter Down Press to lower the Bed/Litter.
5
Nurse Call Push to activate Nurse Call.
6
Knee Gatch Up Press to raise the Knee Gatch.
7
Knee Gatch Down Press to lower the Knee Gatch.
8
Fowler Up Press to raise the Fowler.
9
Fowler Down Press to lower the Fowler.
Note: The intent of the nurse call light on the siderails is to ensure the patient immediately knows which button to push
to contact the nurse station. Turning the light off may compromise this ability, especially in a darkened room.

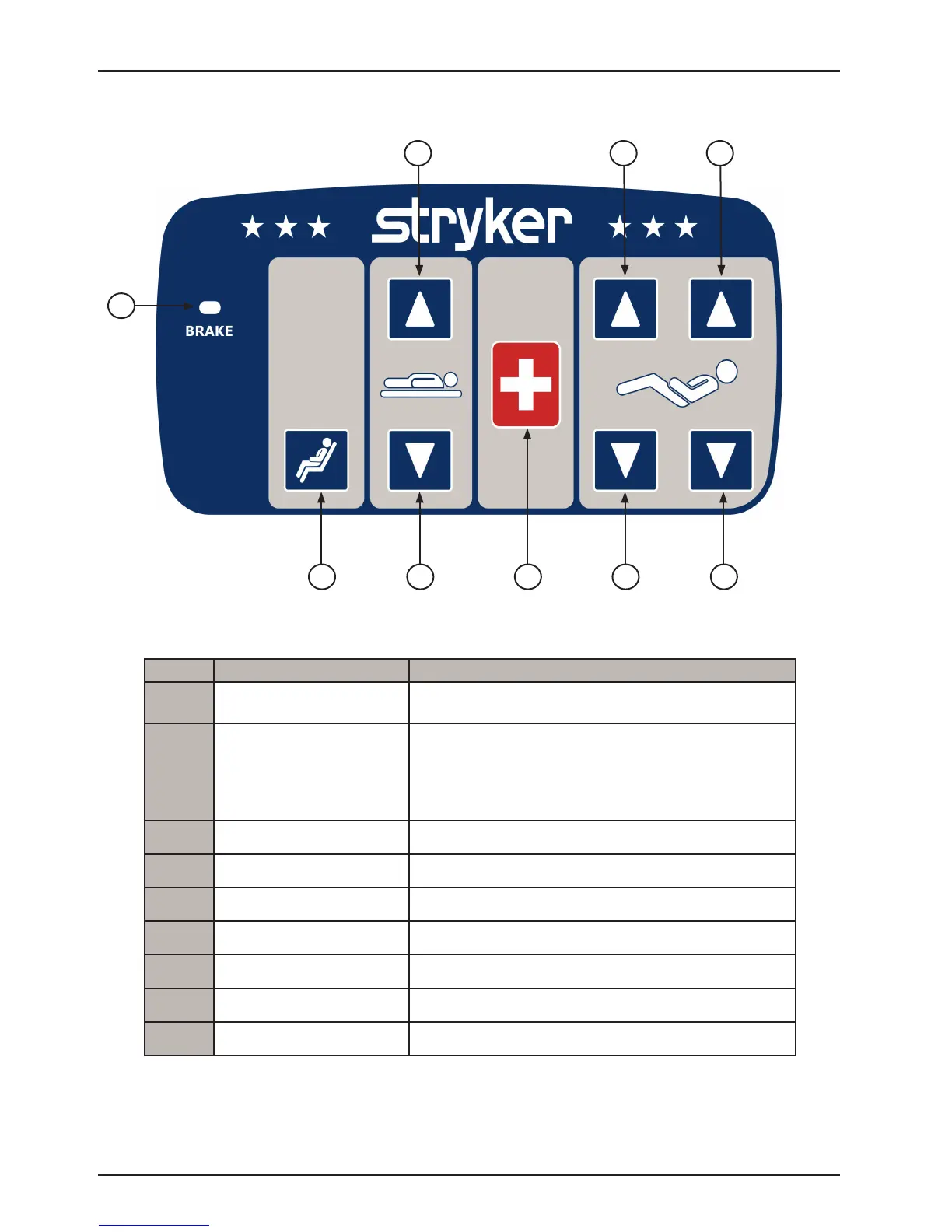

LEFT OUTER SIDERAIL SHOWN
(Right Outer Siderail same as the Left)
