LED Name: Function LED Color
A
Bed Motion Lock LED: LED is illuminated if Bed Motion is locked; blinking if
motion is attempted when lock is “On”.
AMBER
B
Fowler 30
0
+ Lock LED: LED is illuminated if Fowler 30
0
+ is locked; blinking if
locked and Fowler motion is attempted while Fowler is at 30
0
; flashes if lock
condition is violated by CPR.
AMBER
C
Patient Control Fowler Lock LED: LED is illuminated if the Patient Fowler Lock
is “On”.
AMBER
D
Patient Control Gatch Lock LED: LED is illuminated if the Patient Gatch Lock
is “On”.
AMBER
E
Patient Control Bed Up/Down Lock LED: LED is illuminated if the Patient Bed
Up/Down Lock is “On”.
AMBER
F
Zone 1 LED: LED is illuminated when Bed Exit is “On” and Zone 1 activated;
flashes if a Bed Exit event occurs.
AMBER
G
Zone 2 LED: LED is illuminated when Bed Exit is “On” and Zone 2 activated;
flashes if a Bed Exit event occurs.
AMBER
H
Zone 3 LED: LED is illuminated when Bed Exit is “On” and Zone 3 activated;
flashes if a Bed Exit event occurs.
AMBER

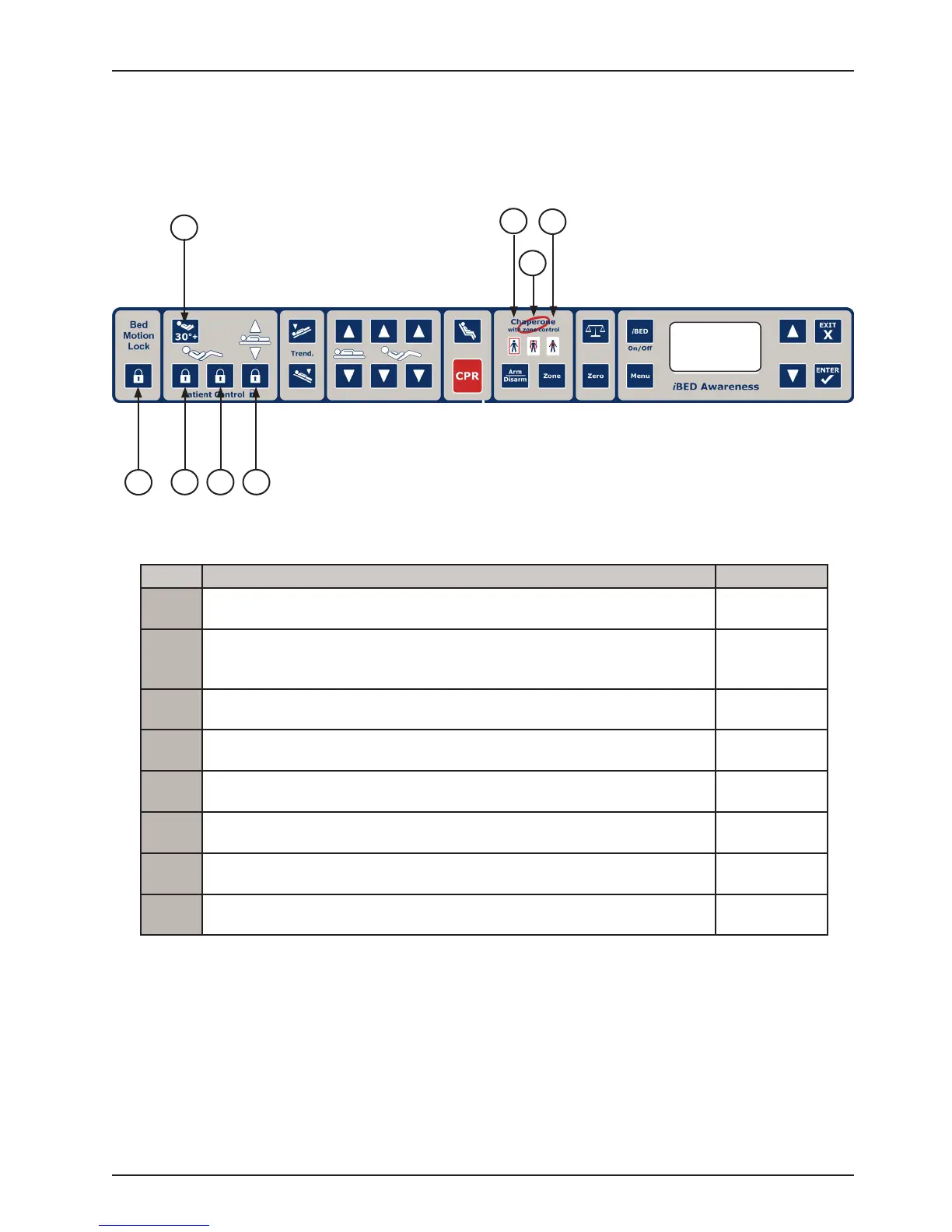

LED INDICATORS: FOOTBOARD
The LED’s inform the operator of various product conditions as listed below.
Footboard Operation Guide
A
B
DC E
F
H
G
