Stryker 3002 - Patient Control Functions (Inside Siderail)

www.stryker.com 3006 -109-101 REV A 23
Return To Table of Contents

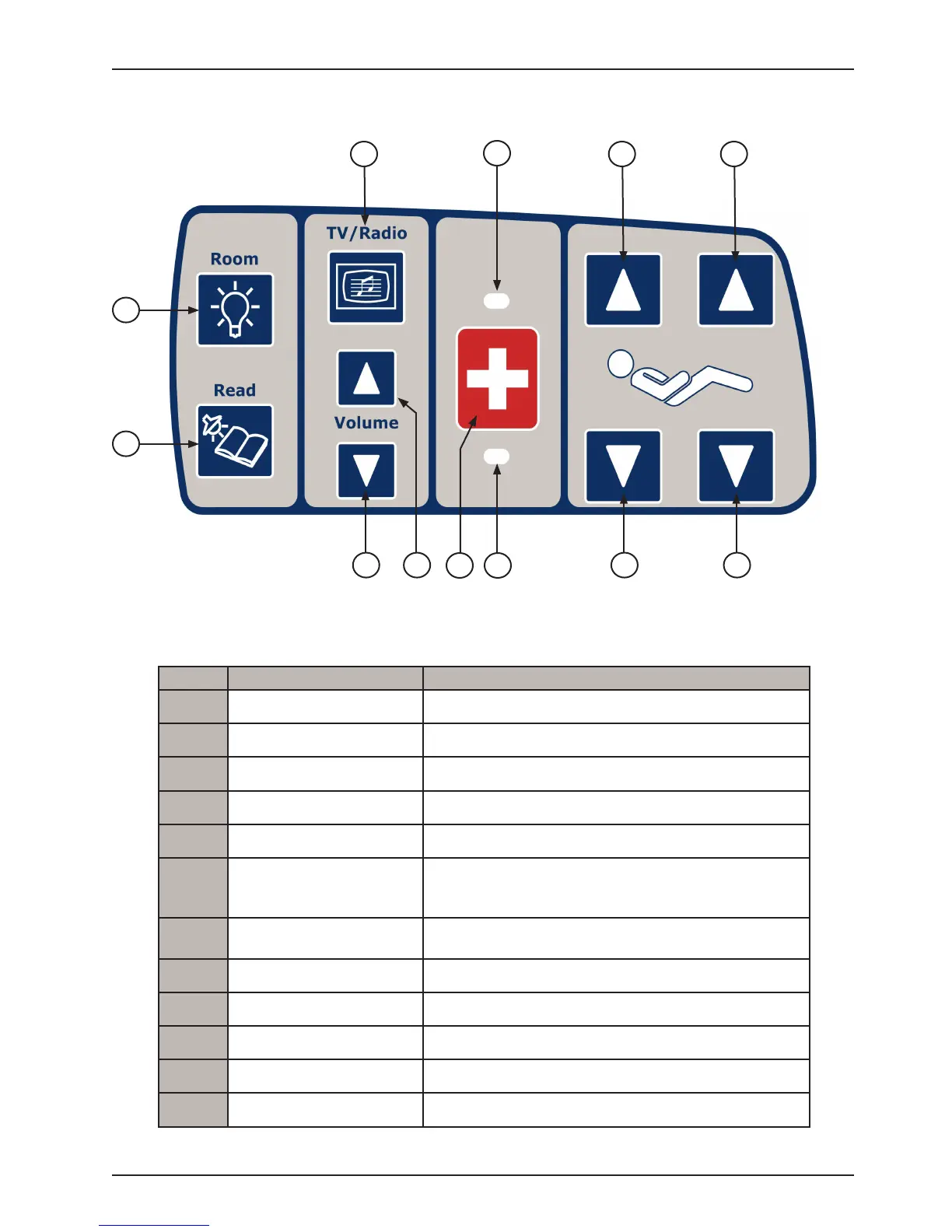

PATIENT CONTROL FUNCTIONS WITHOUT OPTIONAL SMART TV (INSIDE SIDERAIL)
LEFT INSIDE SIDERAIL SHOWN
(Right Inside Siderail same as the Left with exception of the Nurse Call and Nurse
Answer LED. LED 7 and 8 will change positions on the right inner siderail )
Button Button Name Button Function
1
TV / Radio Press to turn TV or radio on and to select a channel.
2
Room Light Press to turn the room light On/Off.
3
Bed Overhead Light Press to turn the bed overhead light On/Off.
4
TV/Radio Volume Down Press to decrease volume; TV or Radio.
5
TV/Radio Volume Up Press to increase volume; TV or Radio.
6
Nurse Call
Press to activate Nurse Call.
Note: Yellow LED will light when button is pushed.
Green LED will light with Nurse Station acknowledgment.
7
Nurse Call LED
Illuminates amber when nurse call has been pressed by
patient.
8
Nurse Call Answer LED Illuminates green when answered by Nurse.
9
Fowler Up Press to raise the Fowler.
10
Fowler Down Press to lower the Fowler.
11
Knee Gatch Down Press to lower the Knee Gatch.
12
Knee Gatch Up Press to raise the Knee Gatch.
2
9
10
12
114
6
1
3
5
Siderail Operation Guide
7
8
