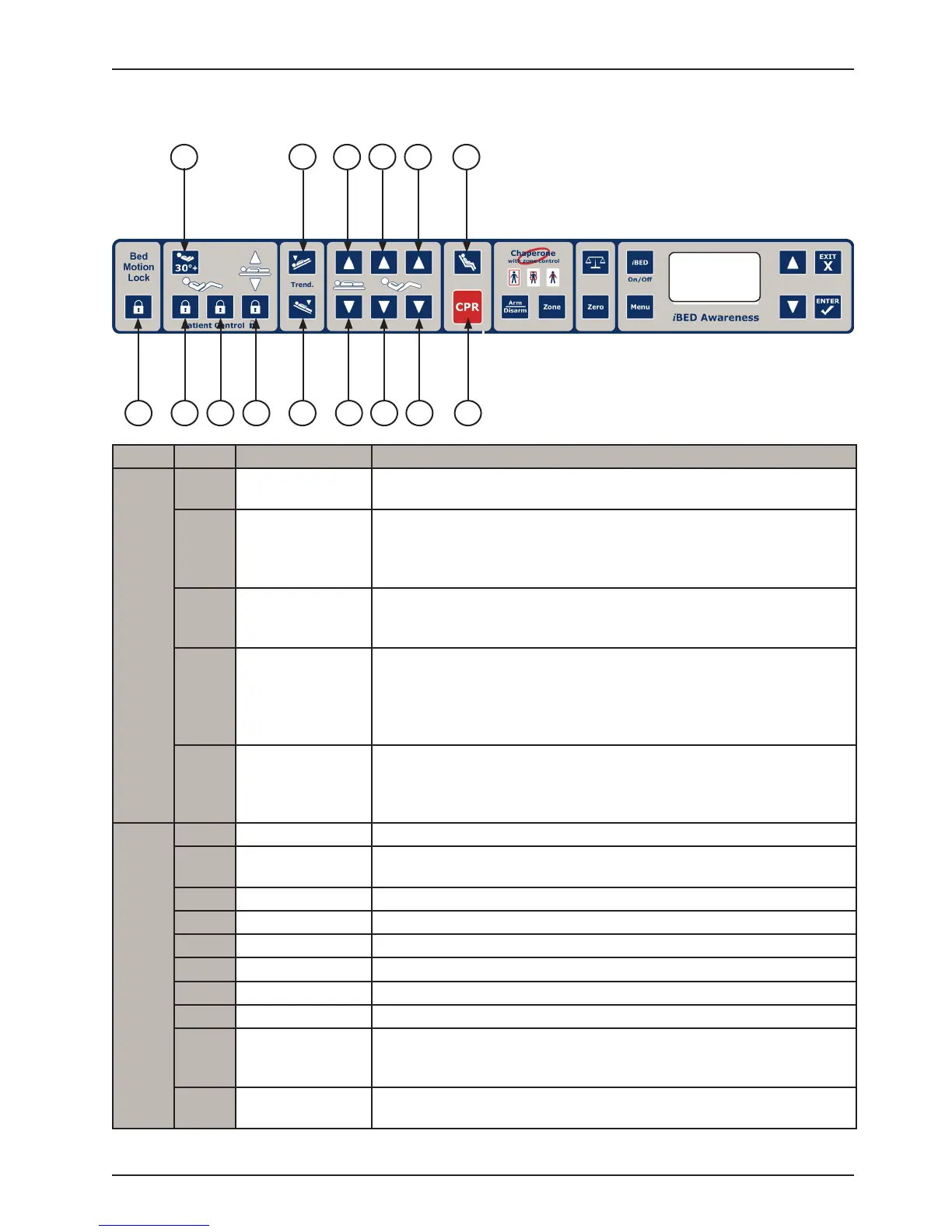

FOOTBOARD CONTROL PANEL FUNCTIONS
Footboard Operation Guide
Button Name Function
LOCKS
1
Bed Motion Lock
Locks all motion on bed. The Bed Motion Lock button will illuminate when
activated.
2
Fowler 30
0
+
Moves bed out of trend and raises the Fowler to 30
0.
The Fowler 30
0
+ but-
ton and dashboard light will illuminate when activated. Note: The Fowler will
not go below 30
0
once the Fowler 30
0
+ lock is activated. However, it may
be raised or lowered in the 30
0
to 60
0
range.
3
Patient Fowler Lock
Locks out Fowler control at all locations (Siderail, Pendant, Head End) with
the exception of the operator controls located on the Footboard. The Patient
Fowler Lock button will illuminate when activated.
4
Patient Gatch Lock
Locks out Gatch control at all locations (Siderail, Pendant, Head End).
The Patient Gatch Lock button will illuminate when activated. This function
also prevents the auto contour of the Gatch when motion is used. Note:
Auto contour is the feature of the bed that when fowler is actuated, Gatch
automatically moves with the Fowler.
5
Patient Bed
Up/Down Lock
Locks out Bed Height control at all locations (Siderail, Pendant, Head End)
with the exception of the operator controls located on the Footboard. The
Patient Bed Up/Down Lock button and Bed Motion dashboard light will
illuminate when activated.
MOTION
6
Trendelenburg Lowers head end and raises foot end of bed.
7
Reverse
Trendelenburg
Lowers foot end and raises head end of bed
8
Bed/Litter Up Raises Bed/Litter.
9
Bed/Litter Down Lowers Bed/Litter.
10
Fowler Up Raises Fowler.
11
Fowler Down Lowers Fowler.
12
Knee Gatch Up Raises Knee Gatch.
13
Knee Gatch Down Lowers Knee Gatch.
14
Cardiac Chair
When activated, the knee will raise, the Fowler will raise or lower to
approximately 60
0
degrees and the bed will tilt to approximately -10
0
Reverse
Trendelenburg (foot end down).
15
CPR Drop
Activates electronic CPR function; flattens litter and puts bed in low
height.
