IBED
®
AWARENESS MONITORING AND ALARMS
Low Height
• If the low height state changes:

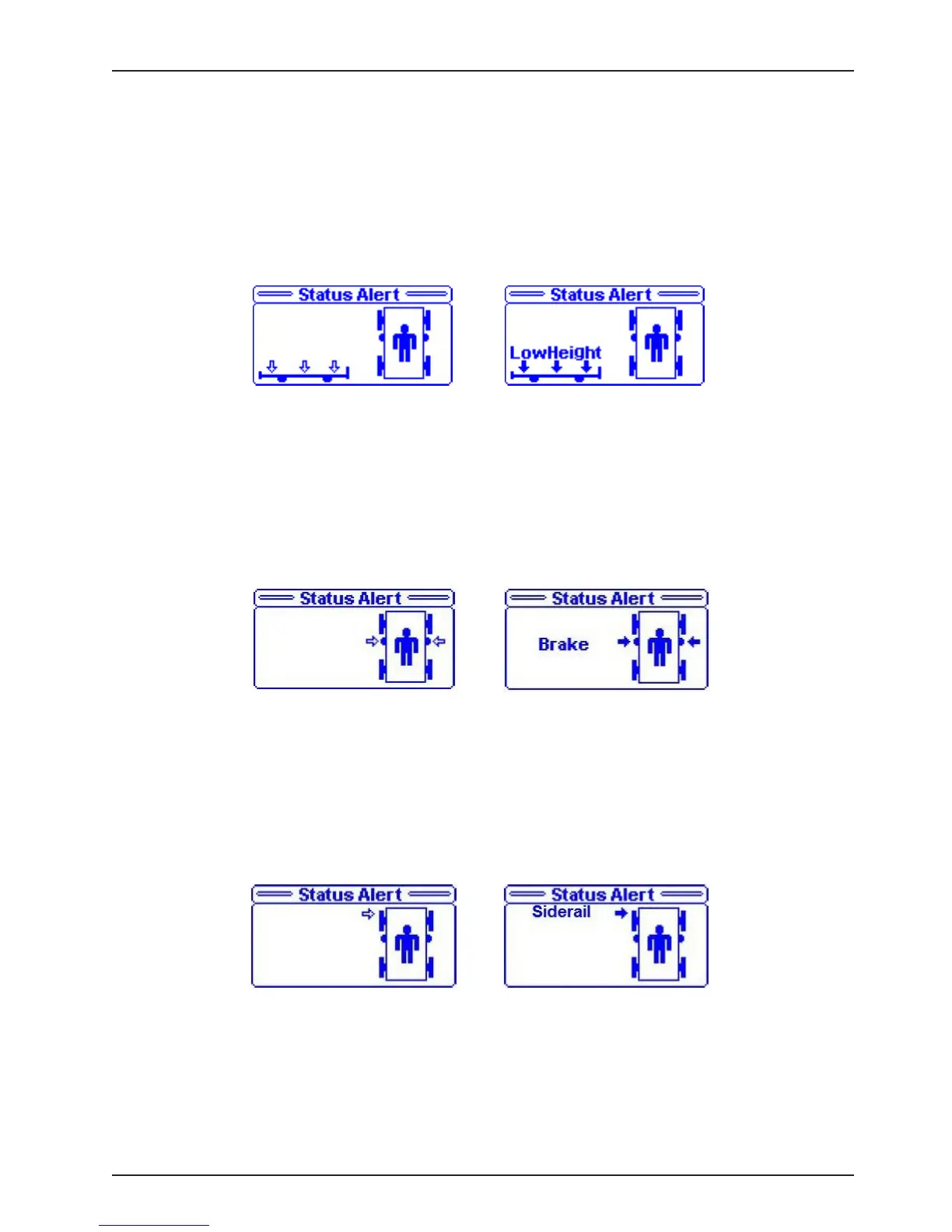

1. The low height LED on the dashboard blinks and the display screen flashes between the message in
Figure 13 and the message in Figure 14.
Brakes
• If the brake state changes:
1. The brake LED on the dashboard blinks and the display screen flashes between the message in Figure
15 and the message in Figure 16.
Siderails
• If the siderail state changes:
1. The siderail LED on the dashboard blinks and the display screen flashes between the message in Figure
17 and the message in Figure 18.
Note
The arrow pointing to the siderail in Figure 17 and 18 will change depending on the siderail position in alarm.
Figure 14
Figure 13
Figure 15
Figure 16
Footboard Operation Guide
Figure 17
Figure 18
