Stryker 3002 - Optional Infrared (IR) Module; IR Module Components and Functions

www.stryker.com 3006 -109-101 REV A 45
Return To Table of Contents
Item Name Function
1
IR (Infrared) Module Cable
Connects to the bed and provides power and signal
communications.
2
IR (Infrared) Lens
Provides infrared communications with the iBed
Locator.
3
iBed Locator Connection LED
Provides connection status for IR (infrared)
communications with iBed Locator.
Slow Flash - attempting to connect to iBed Locator.
Solid LED - iBed Locator connected.
Rapid Flash - Error condition detected.
OFF - iBed Locator is not trying to connect. This
occurs only on Zoom
®
and Battery Backup beds when
the brake is released.
4
Wireless (WiFi) Connection LED
Provides connection status for WiFi (wireless)
communications with wireless access point.
Slow Flash - WiFi attempting to connect.
Solid LED = WiFi connected.
Rapid Flash - WiFi was not connected after 6 minutes
and timed out.

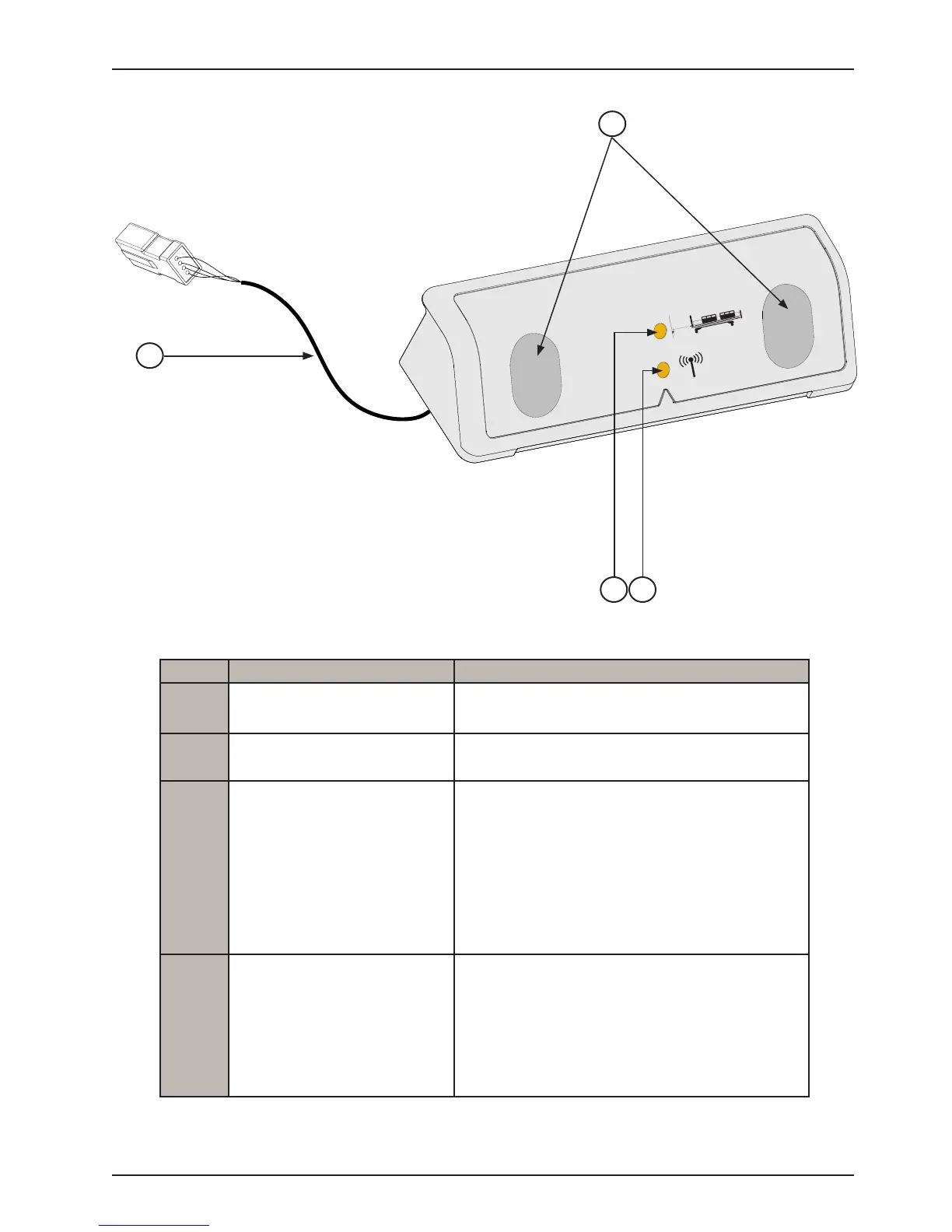

Optional Infrared (IR) Module
2
1
3 4
