Preventative Maintenance

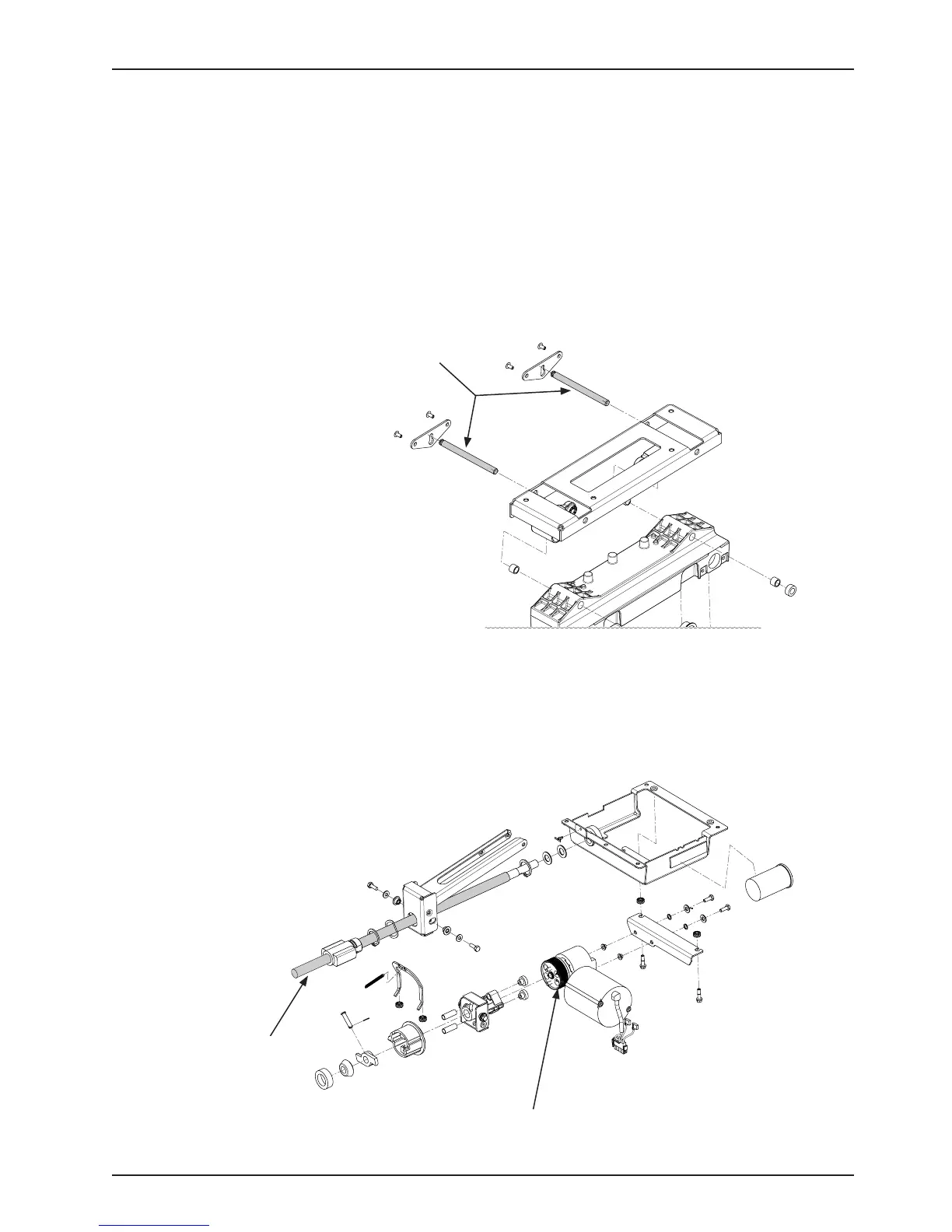

GREASE POINTS
1. H/E Glide Rod
2. Ball Screw
3. Brake Spring
Siderail Assembly
(Reference p/n: 3006-400-105 (Head End) and 3006-400-300 (Foot End)
1. Apply Syn-Tech NS-18191-G grease (p/n 3000-200-700) to Glide Rod surface.
Glide Rod
Ball Screw
Brake Spring
Fowler Drive Assembly (Reference p/n: 3006-300-550)
1. Apply Mobile #28 grease to entire length of ball screw.
2. If dry, apply a thin film layer of Syn-Tech grease (p/n 3000-200-700) to the outside of the brake spring.
Head End
shown
