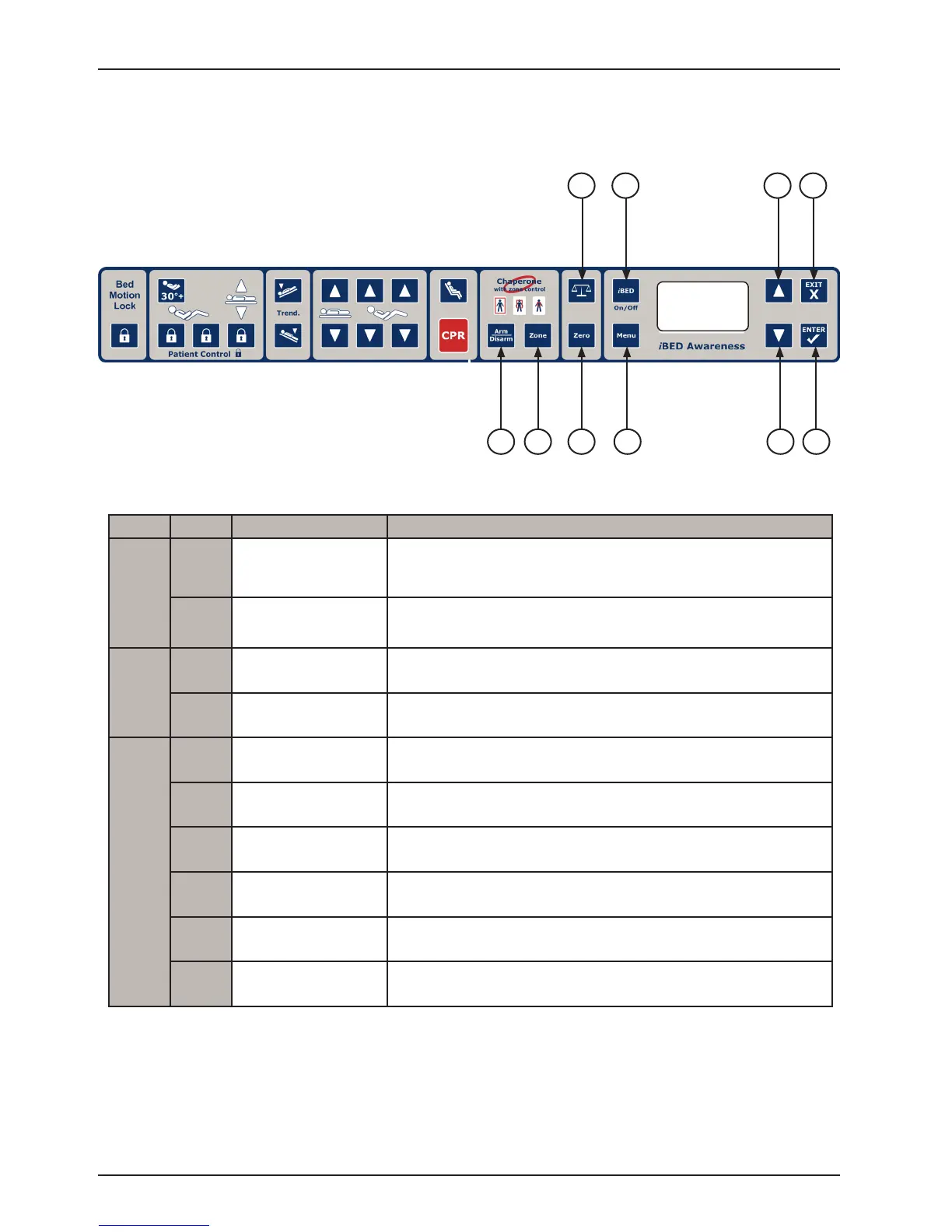

FOOTBOARD CONTROL PANEL FUNCTIONS (CONTINUED)
Footboard Operation Guide
Button Name Function
BED EXIT
16
Bed Exit Arm/Disarm
Activates Bed Exit system. The selected zone graphic will illuminate
when activated. When Bed Exit is in alarm mode, press and hold
“Arm/Disarm” to turn Bed Exit “Off”.
17
Zone Control Changes the Zone.
SCALE
18
Scale Displays scale information on screen.
19
Zero Zeroes Bed.
iBED/MENU
20
On/Off Turns iBed
®
Awareness system ON/OFF.
21
Menu Accesses MENU selections.
22
Menu Up Scroll Up through menu.
23
Menu Down Scroll Down through menu.
24
Exit
Exits or Escapes from menu selection; also used to Cancel
operations.
25
Enter Selects menu item; also used to Save operations.
