102 6390-009-002 REV D www.stryker.com

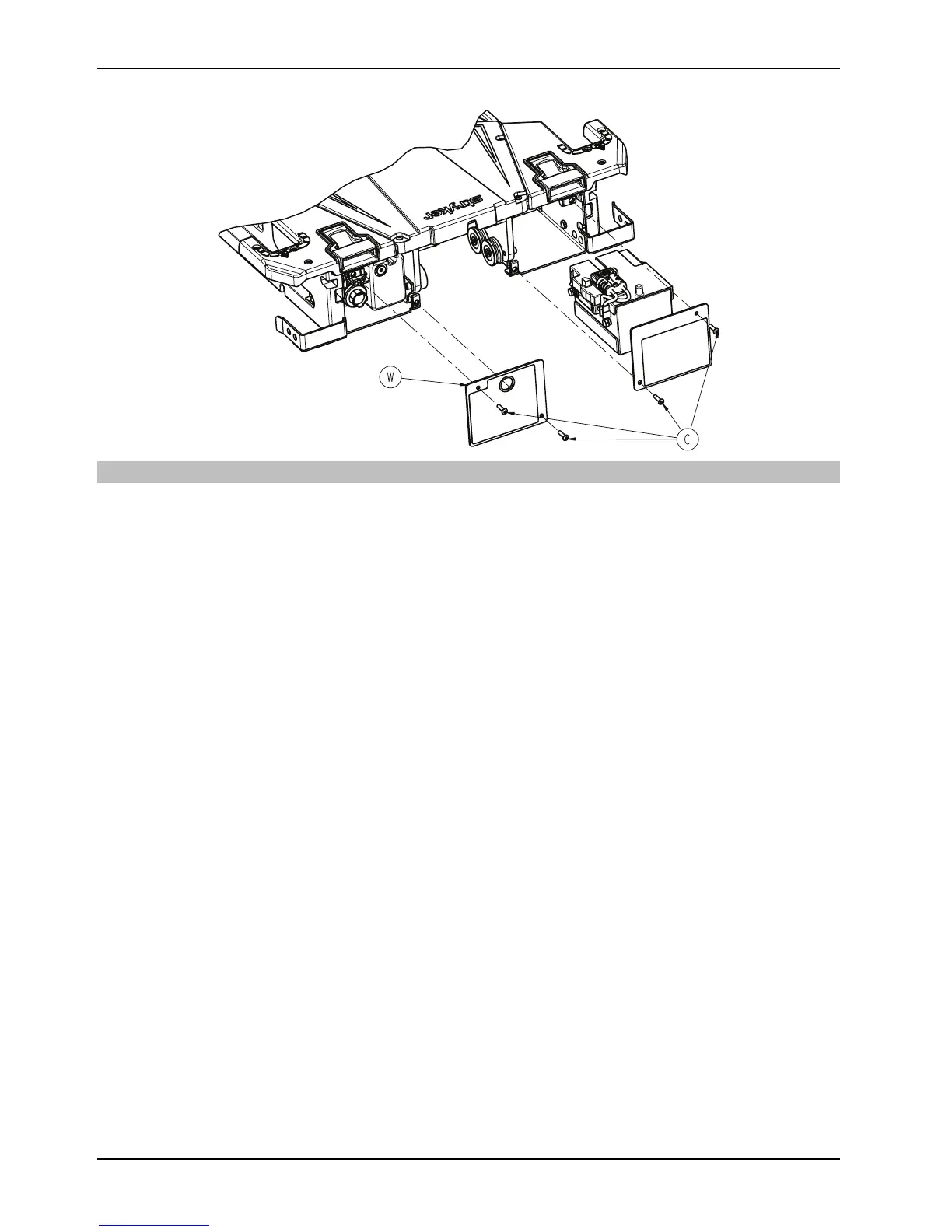

Trolley assembly
Item Number Name
Quantity
A 0004-658-000
Socket head cap screw
3
B 0004-665-000 Button head cap screw
4
C
0004-666-000 Button head cap screw 16
E 0008-082-000
Socket head set screw
1
F 0016-132-000 Nylock hex nut
1
H 0027-778-000
Slic pin
1
K 0038-111-000 Zip tie
1
L 0038-896-000 Extension spring
1
M 6390-001-015
Trolley main frame on page 103
1
N 6390-001-016 Trolley arm assembly on page 124
1
P 6390-001-040 Hydraulic cylinder rod end assembly
1
R 6390-001-041
Side cover, right
1
T 6390-001-042
Side cover, left
1
U 6390-101-047 Wing cover, right
1
V 6390-101-048
Wing cover, left
1
W 6390-101-062
Trolley rear cover plate, left
1
Y 6390-101-063 Trolley rear cover plate, right
1
AA 6390-001-309 Arm hinge pin 2
AB 6390-001-311 Hinge cover plate 2
AC
6390-001-313
Cylinder clevis pin
1
AD 6390-001-377 Angle sensor link
1
AJ 6390-101-420 Trolley top cover
1
AL 0011-454-000 Plain washer
1
