74
6390-009-002
REV
D
www.stryker.com
Service
Primary
coil
replacement,
head
end
(Continued)
A
B
C
A
B

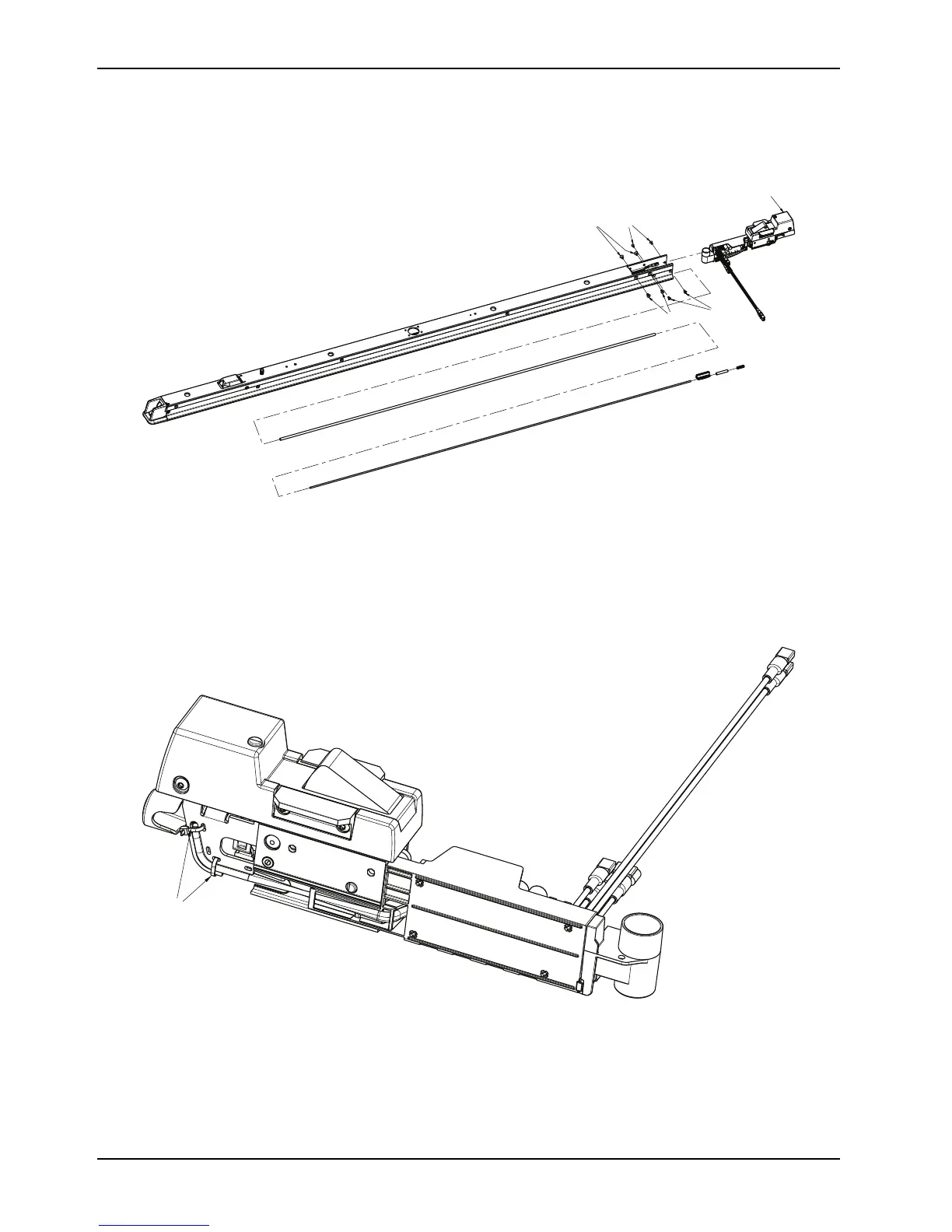

Figure
43:
Remove
the
anchor
pawl
assembly
from
the
anchor
8.
Unplug
the
power
cables
from
the
extension
cable
from
the
anchor.
9.
Unplug
the
two
coil
wires
from
the
inductive
primary
board.
10.
Using
diagonal
pliers,
cut
the
cable
ties
(D)
that
secure
the
coil
wires
to
the
wire
management
strap
(
Figure
44
on
page
74
).
D
Figure
44:
Remove
cable
ties
79
