6390-009-002
REV
D
75
Service
Primary
coil
replacement,
head
end
(Continued)
11.
Using
a
T25
Torx
driver,
remove
the
four
button
head
cap
screws
(E)
that
secure
the
two
retainer
wings
and
remove
the
retainer
wings
(

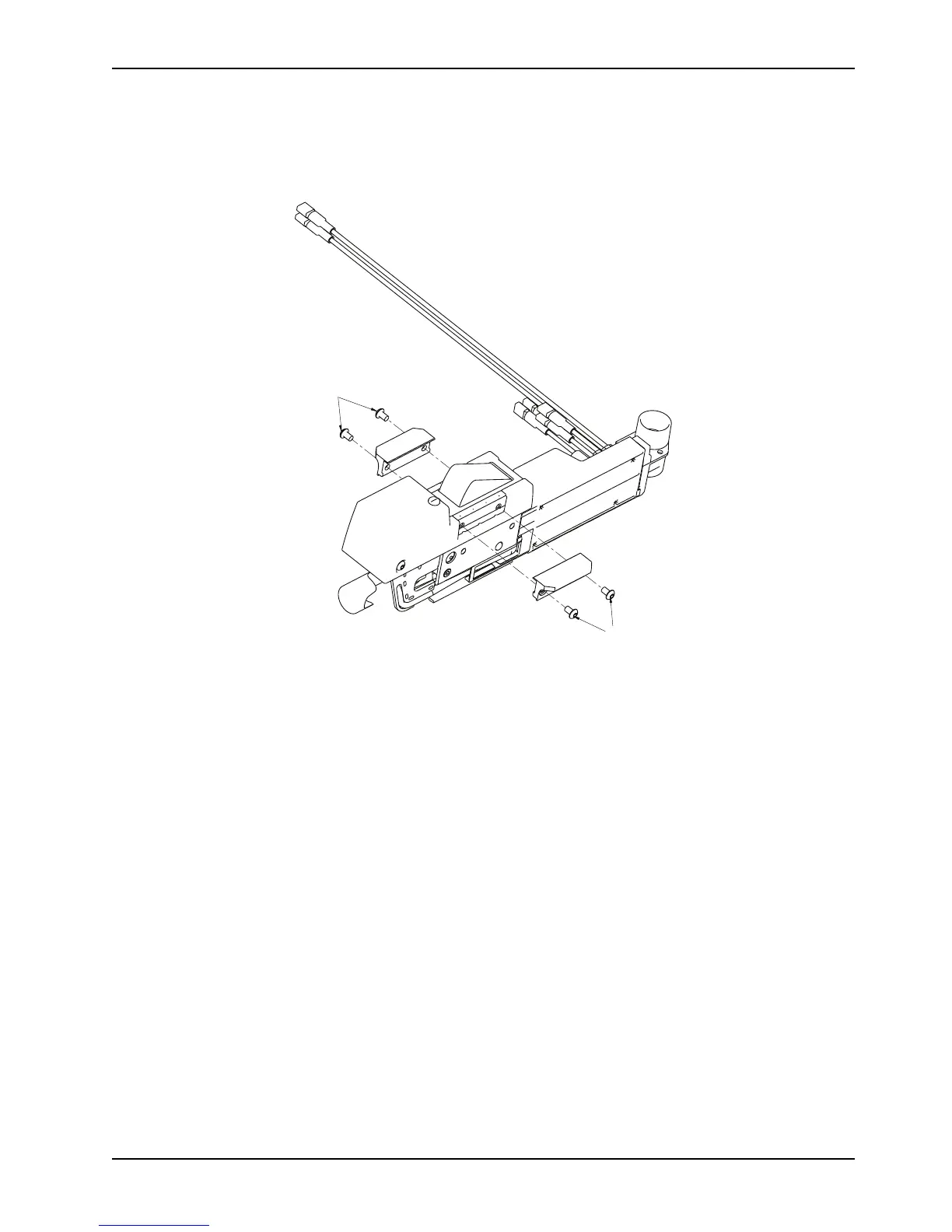

Figure
45
on
page
75
).
Save
all
parts.
E
E
Figure
45:
Remove
the
retainer
wings
80
82
Table of Contents
Table of Contents
7
Warning/Caution/Note Definition
11
Summary of Safety Precautions
12
Pinch Points
13
Introduction
14
Product Description
14
Indications for Use
14
Expected Service Life
14
Contraindications
14
Specifications
15
Standards with Required Options
17
Product Illustration
18
Important Contact Information
18
Contact Information
19
Serial Number Location
19
Date of Manufacture
19
Cleaning
20
Suggested Cleaners
20
Preventive Maintenance
21
Regular Inspection and Adjustments
21
Every Month
21
Every Three Months
21
Every Twelve Months
22
Installation Checklist
22
Flat Roller and V-Guide Part Replacement Schedule
24
Transfer Lock Bearing Part Replacement Schedule
24
Maintenance Record
26
Training Record
27
Quick Reference Replacement Parts
28
Troubleshooting
30
Transfer/Cot Does Not Move out of the Transport Position
30
Trolley Does Not Roll Smoothly
30
Trolley Rolls Part of the Way and Stops
31
Trolley Makes Noise While Rolling
31
Trolley Leds
31
Cot Release Button Does Not Unlock the Cot from the Trolley
32
Trolley Release Handles
32
Trolley Does Not Lock in the Loading Position
33
Trolley will Not Unlock from the Transfer Position
33
Trolley Pump Runs for an Extended Time after Cot Jog up
33
Cot Does Not Lock into the Trolley and Leds Flash Amber
33
Cot Locks into the Trolley at the Loading Position but Leds Are Not on
34
Cot will Not Jog up When Released from the Transport Position
34
Cot will Not Jog up High Enough When Released from the Transport Position
35
Cot Takes a Long Time to Jog up
35
Lifting Arms Do Not Lower, but the Cot Legs Extend When You Press the Extend (+) Button
35
Lifting Arms Lower, but the Cot Legs Do Not Extend When You Press the Extend (+) Button
36
Lifting Arms Lower Cot too Quickly When You Press the Extend (+) Button
36
Lifting Arms Lower the Cot too Slowly When You Press the Extend (+) Button
36
Trolley Does Not Lower Smoothly When You Press the Extend (+) Button
36
Trolley Hydraulic Motor Is Noisy When You Press the Extend (+) or Retract (-) Button
37
Lifting Arms Do Not Lower Cot Low Enough When You Press the Extend (+) Button
37
Cot Drifts down or Goes into High Speed Retract When You Press the Retract (-) Button
37
Cot Legs Are Retracted, but the Cot Is Not Lifted by the Lifting Arms When You Press the Retract (-) Button
38
Cot Is Lifted by the Lifting Arms but the Cot Legs Do Not Retract When You Press the Retract (-) Button
38
Trolley Lifts the Cot too Slowly When You Press the Retract (-) Button
38
Lifting Arms Lift the Cot too Quickly When You Press the Retract (-) Button
38
Trolley Does Not Lift Smoothly When You Press the Retract (-) Button
39
Cot Does Not Lift High Enough
39
Cot Does Not Jog down Once in the Transport Position
39
Trolley Manual Release Button Does Not Lower the Lifting Arms
40
Trolley Manual Release Button Lowers the Lifting Arms, but Not Smoothly
40
Trolley Error LED Indicates an Error (Solid Amber)
40
Trolley Control Panel Does Not Move the Lifting Arms
40
Trolley Stops Part Way While Rolling to the Transport Position
40
Trolley Makes Noises While Rolling
41
Trolley Is in the Transport Position with a Cot and the Trolley Leds Are Not Illuminated Green
41
Trolley Is in the Transport Position and the Cot Is Not Locked in at the Foot End
41
Transfer Does Not Lock into the Anchor
41
Service
43
Transfer Removal
43
Trolley Removal
43
Cover Removal and Replacement
46
Manual Release Button Assembly Removal and Replacement
48
Control Board Assembly Removal and Replacement
50
Master On/Off Switch Replacement
51
Trolley Actuator Assembly Replacement
52
Hydraulics Assembly Removal and Replacement
54
Hydraulic Cylinder Rod End Replacement
57
Communication Board Replacement
58
Inductive Coil Replacement
59
Trolley Position Sensor (TPS) Replacement
61
Flat Roller and V-Guide Roller Replacement
64
Hydraulic Cylinder Removal and Replacement
65
Velocity Fuse Removal and Replacement
67
Non-Locking Manual Valve Removal and Replacement
68
Hose Removal and Replacement
69
Pump / Motor Assembly Replacement
71
Motor Cable Removal and Replacement
72
Motor Replacement
73
Pressure Compensated Flow Control Valve Replacement
74
Battery Replacement
75
Filling the Reservoir
76
Primary Coil Replacement, Foot End
77
Primary Coil Replacement, Head End
79
Transfer Lock Bearing Removal and Replacement
82
Power-LOAD Assembly
84
Assembly Kit, Power-LOAD - 6390-001-054
87
Anchor Assembly
88
Anchor Pawl Assembly, Head End
91
Anchor Plunger Assembly, Middle
95
Transfer Assembly
96
Foot End Fastener Assembly
102
Transfer Trolley Lock Assembly
103
Trolley Assembly
104
Trolley Main Frame
109
Trolley/Transfer Interface Mechanism
123
Wing Assembly, Left
124
Hydraulics Assembly
125
Manifold Assembly
126
Trolley Manual Release Assembly
128
Trolley Arm Assembly
130
Arm, Left
131
Arm, Right
132
Trolley Actuator Assembly - 6390-001-028
133
Floor Plate, Install Components
134
Wheel Guide, Optional
135
Wheel Guide Assembly, Optional - 6390-001-017
136
Power-LOAD Assembly, MTS - 639000550010
137
Recycling Passport - 6390-101-023
140
Recycling Passport - 6390-001-024
141
Recycling Passport - 6390-001-066
142
Recycling Passport - 6390-001-013
143
Recycling Passport - 6390-001-015
144
Recycling Passport - 6390-001-015
145
Recycling Passport - 6390-001-043
146
Recycling Passport - 6390-001-035
147
Recycling Passport - 6390-001-015
148
EMC Information
149
Warranty
152
