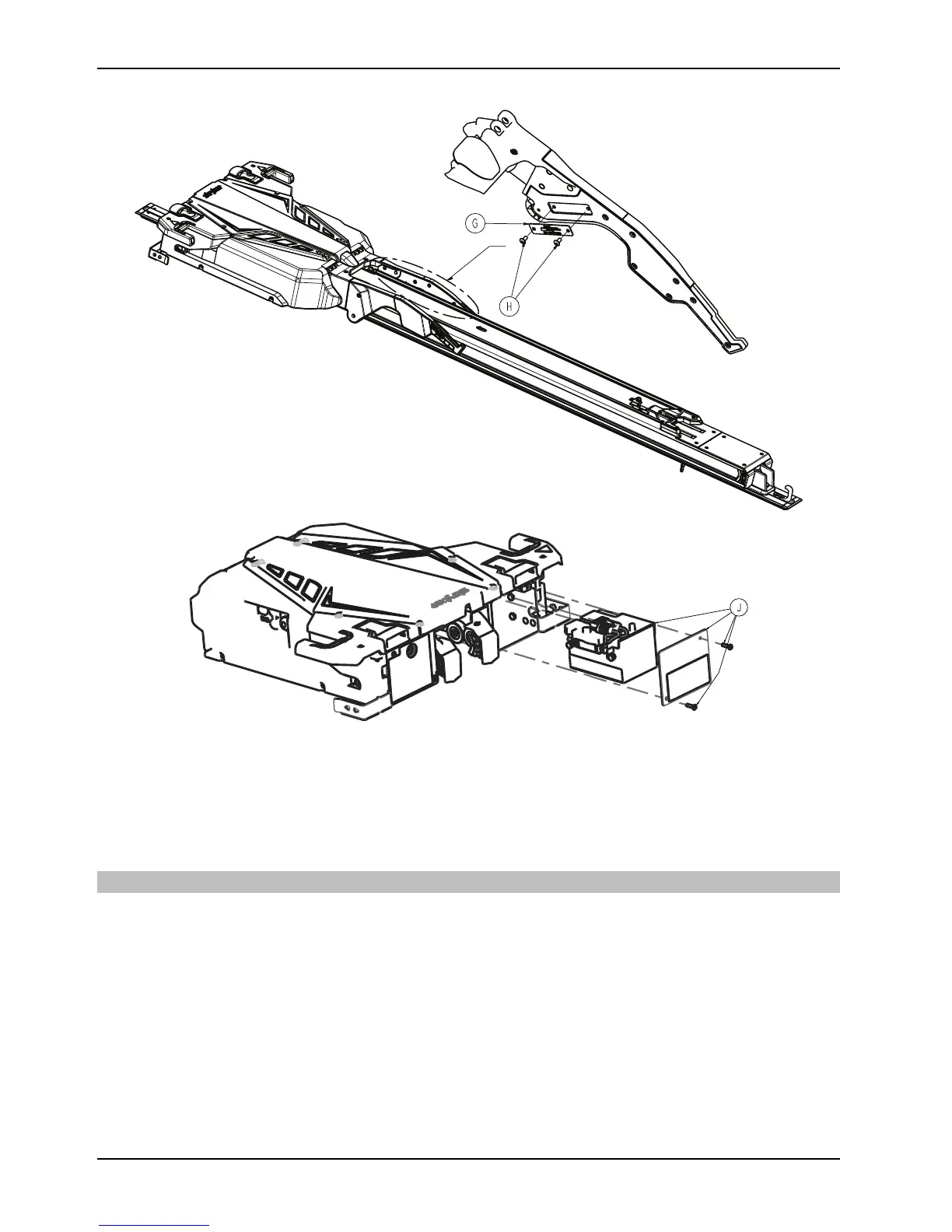

Power-LOAD assembly
1. Cut pieces to desired length to cover void at either end, as needed.
2. Drill .400/.450 diameter hole through 6390-001-107, floor plate, for assembly. Hole to be drilled at pre-machined
countersink locations only.
3. Torque to 60 ± 10 ft-lb
4. Drill .600/.656 diameter hole through 6390-001-107, floor plate, for assembly hole to be drilled at one of the pre-
machined pocket locations only.
Item Number Name
Quantity
A 6390-001-011 Anchor assembly on page 82
1
B 6390-101-012
Transfer assembly on page 90
1
C
6390-001-013 Trolley assembly on page 98
1
D 6390-001-054
Assembly kit, Power-LOAD - 6390-001-
054 on page 81
1
G
6060-090-002 Tag, serial number
1
H 0025-079-000 Dome head rivet 2
J 639001010026 Battery installation assembly
1
