Stryker 6390 User Manual

88 6390-009-002 REV D www.stryker.com

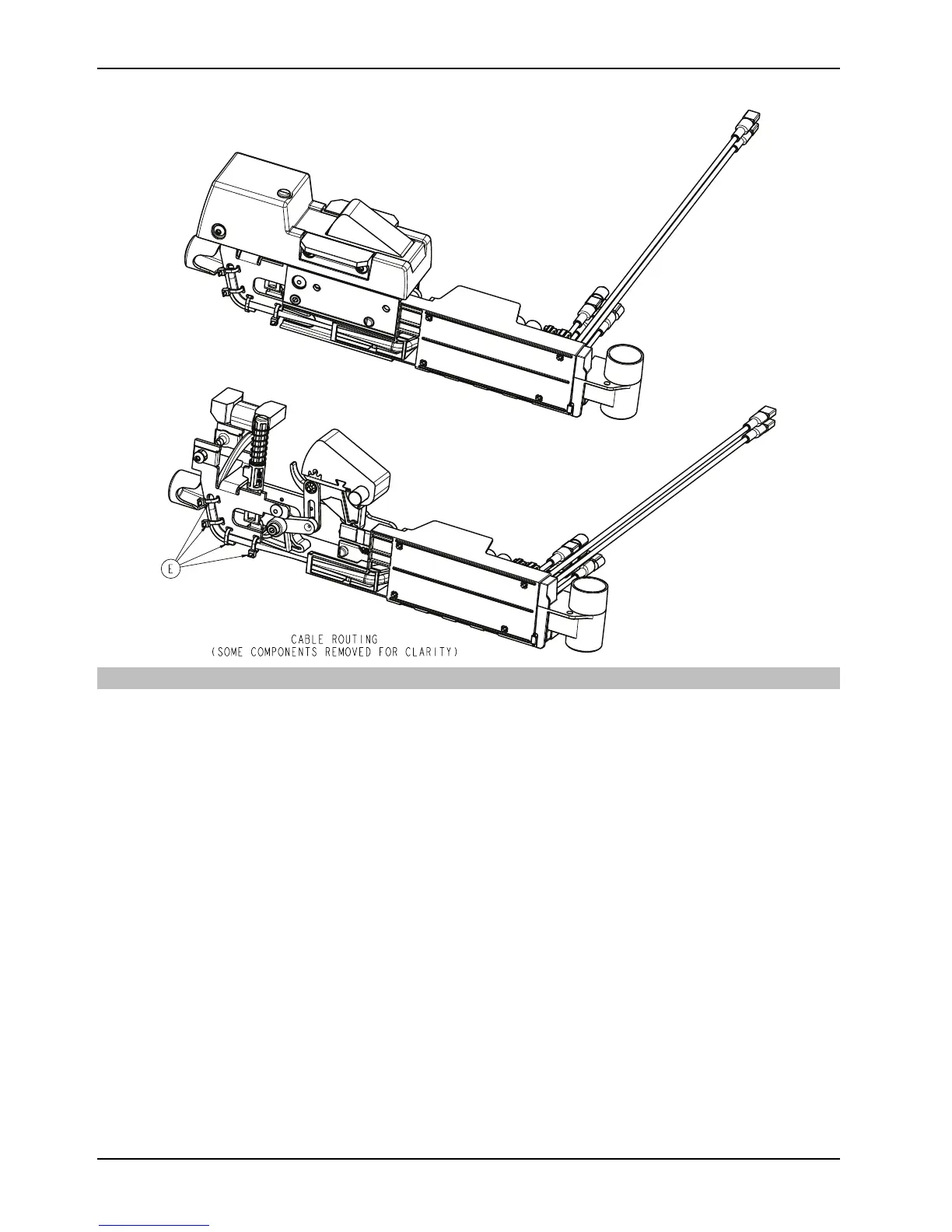

Anchor pawl assembly, head end
Item Number Name
Quantity
A 0004-396-000 Button head cap screw 2
B 0004-665-000 Button head cap screw
4
C
0018-009-000
Extruded “U’’ nut
2
D 0025-079-000 Dome head rivet
1
E 0038-111-000 Zip tie
4
F 0038-885-000 Pawl return spring 2
G
0038-888-000
Compression, wire
1
H 6390-001-070 Manual release mechanism
1
J 6390-001-071 Anchor housing assembly, head end
1
K 6390-001-112 Anchor pivot pin, threaded
1
L 6390-001-123 Retainer wing 2
M 6390-001-124 Anchor actuator pin, head end
1
N 6390-001-125 Anchor housing, head end
1
P 6390-001-137 Wire protector
1
R 6390-001-147 Inductive primary board
1
T 6390-001-149 Pawl pivot pin
1
U 6390-001-164 Wire management strap, head end
1
