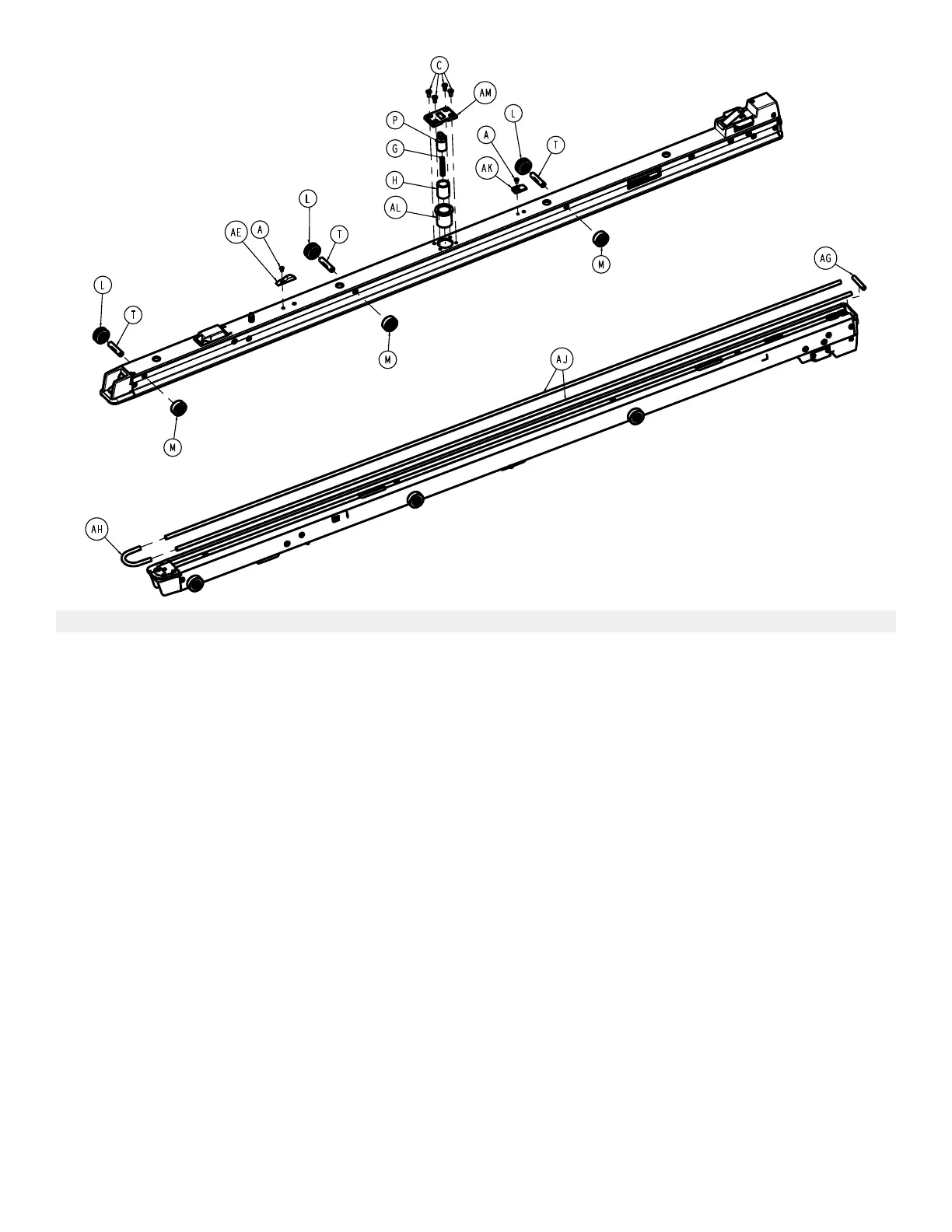

Stryker Power-LOAD 6390 Maintenance Manual

Torque items L and M
to 235-317 in-lb
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0001-193-000 Flat head cap screw 12
B 0001-194-000 Flat head cap screw 4
C 0001-195-000 Flat head cap screw 4
D 0015-087-000 Square nut 2
E 0038-111-000 Cable tie 5
F 0038-887-000 Compression wire 1
G 0038-606-000 Compression wire 1
H 0081-439-000 Bronze bearing 1
J 639002010023
Anchor plunger assembly, middle (page
77)
1
K 639001010024
Anchor pawl assembly, head end (page
74)
1
L 6390-001-025 V-guide roller assembly 3
M 6390-001-027 Flat roller assembly 3
N 6390-101-105 Anchor trigger housing, foot end 1
P 639001010074
Transfer lock pin assembly (page 115) 1
R 639001010100 Machined anchor extrusion 1
T 6390-001-103 Anchor roller axle 3
U 6390-001-104 Anchor trigger 1
V 6390-001-112 Anchor pivot pin, threaded 1
W 6390-001-113 Anchor drive block 3
Y 6390-001-114 Anchor drive rod, medium 1
AA 6390-001-186 Anchor drive rod, long 1
AB 6390-001-120 Wire routing and washer bracket 1
EN 72 6390-309-002 Rev AB.0
