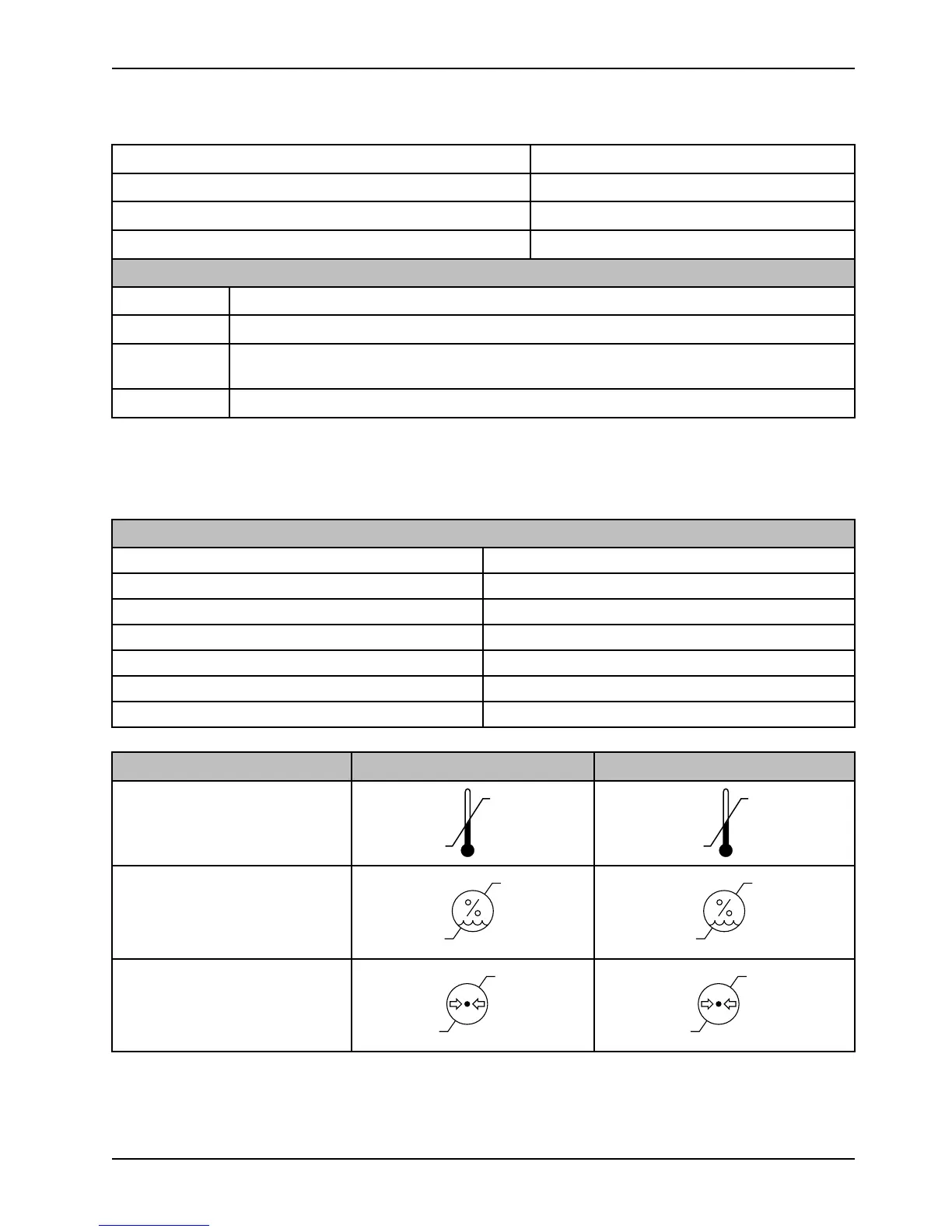

Stryker SV1 Service Manual

www.stryker.com SM-7100 REV 01 7
Introduction
Specifications (Continued)
Backrest angle indicator
0° - 90°
Backrest angle
0° - 65°
Trendelenburg/Reverse Trendelenburg
0° - 12°
Gatch angle
0° - 30°
Electrical requirements
Battery
24 VDC, 10 amps, Model BA1812
Control box
100-240 VAC, 50 Hz - 60 Hz nominal, 5 amps
Electrical
classification
Class 1 when product is plugged into mains power
Internally powered when the product is unplugged
Duty cycle
2 mins of actuation and 18 mins idle
Class I Equipment: Equipment that protects against electrical shock and does not solely rely on basic insulation, but
which includes an additional safety precaution that is provided for the connection of the equipment to the protective
earth conductor in the fixed wiring of the installation that accessible metal parts cannot become live in the event of a
failure of basic insulation.
Compatible mattresses
7002-2-012 2000 mm x 860 mm x 120 mm
7002-2-014 2000 mm x 860 mm x 140 mm
7002-5-012 2000 mm x 860 mm x 120 mm
7002-2-512 2000 mm x 860 mm x 120 mm
7002-2-514 2000 mm x 860 mm x 140 mm
7002-2-514 2000 mm x 860 mm x 120 mm
7002-5-712 2000 mm x 860 mm x 120 mm
Environmental conditions
Operation Storage and transportation
Temperature
(38 °C)
(5 °C)
(50 °C)
(-10 °C)
Relative humidity
90%
20%
90%
20%
Atmospheric pressure
1060 hPa
800 hPa
1060 hPa
800 hPa
