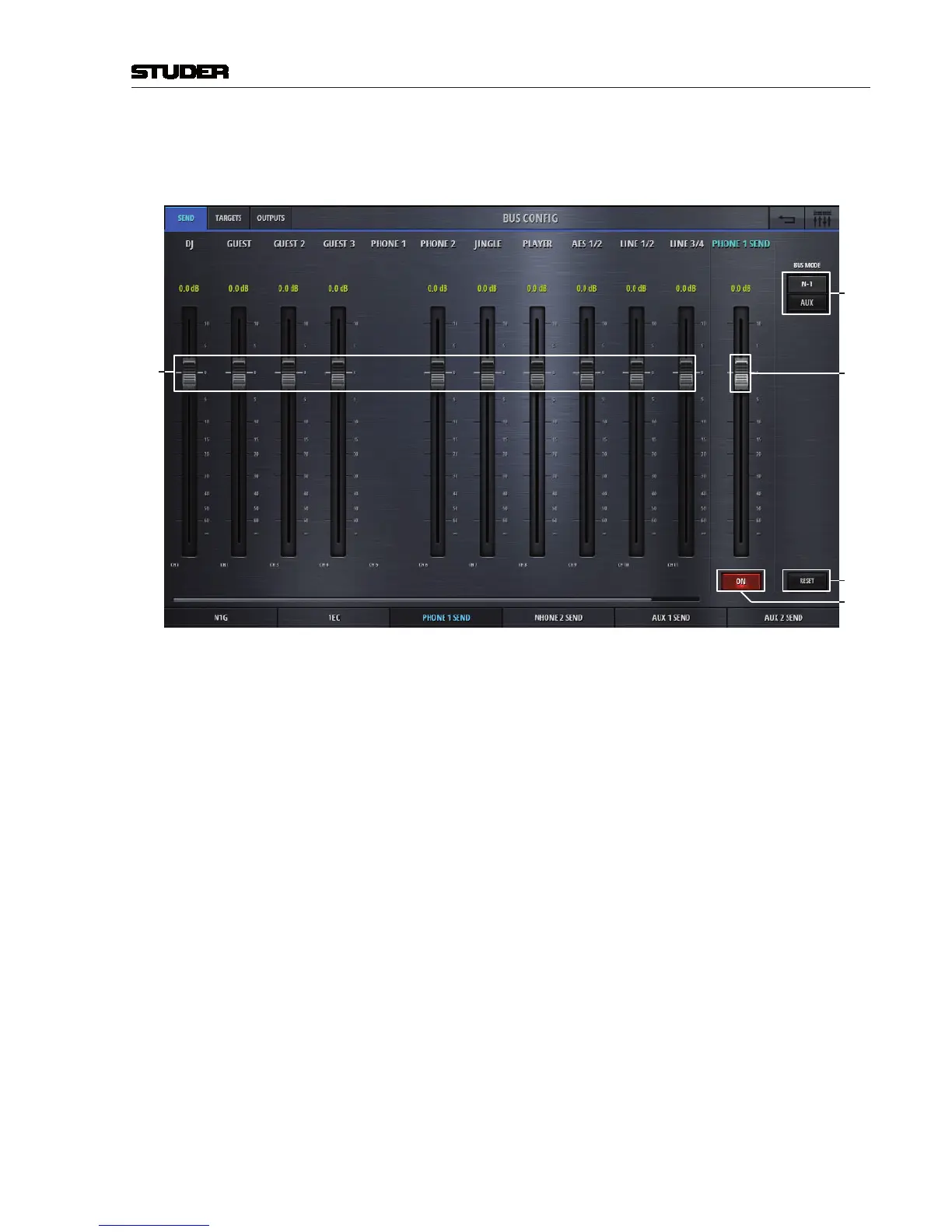

The config page of the N-1 busses Send section holds control elements
necesarry to set the actual send levels of contributing channels - e.g. to set
the mix.
[1]
[5]
[2]
[3]
[4]
[1] Send levels These are the send levels of all input channels to the currrently chosen bus.
Please note that the channel that we are currently configuring cannot be sent
to its own send bus (N-1 concept, also called mix-minus) .
[2] Master Send level Sets the output level of the send bus.
[3] On/Off Switches the output signal of the send bus on and off.
[4] Bus Mode Lets the user select the bus mode that can either be N-1 or Aux.
N-1 : this mode is made for busses that are feeding a return signal to remote
positions. This mode doesn’t allow the input signal of the remote source
to be assigned to the bus. With this bus mode, the remote source (e.g. a
reporter) will never have his own signal in his return feed. This is opti-
mal to prevent echo’s that could be introduced through long distance
signal transmission.
Aux : this is the bus mode that allows all sources to be assigned to the
bus . The user can decide whether the signal should be sent to the bus
either before or after the channals fader. This can be set for each source
individually by chosing Pre or Post with the button on the top. Also
each source has an individual on/off button to select the desired bus
assign (see image below).
[5] Reset Resets all parameters.
