Micro Series
Micro Series 1-67
Document generated:29.06.17
SW V1.1

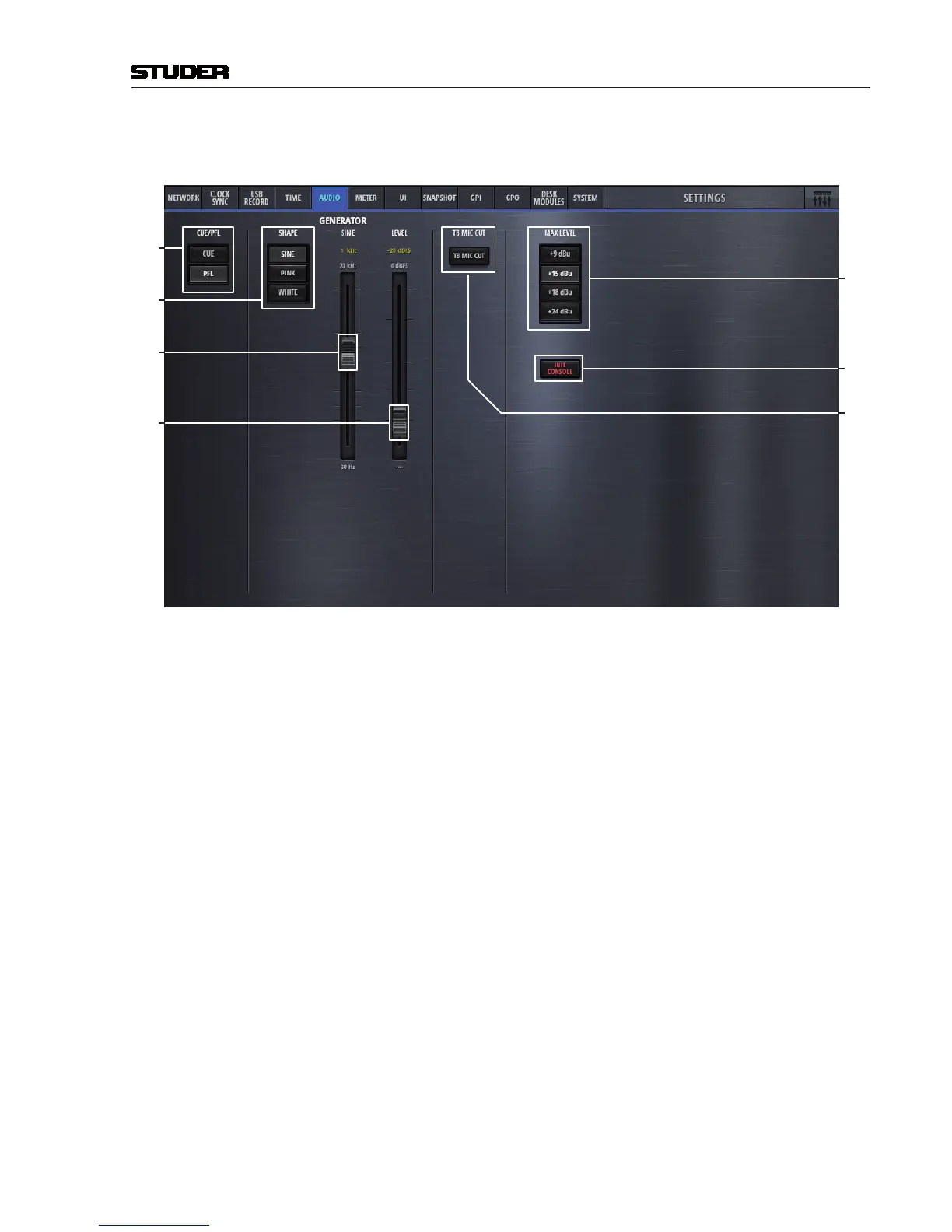

The Audio tab has controls for the PFL mode, internal test tone generator,
setting of the analog I/O ports, TB cut and console initialisation.
[1]
[5]
[2]
[3]
[4]
[6]
[7]
[1] CUE/PFL Selects the PFL behaviour. CUE mode lets the operator listen to the post-fader
signals. PFL is pre-fader-listening.
[2] Generator Shape Allows the operator to select either a sine-wave, pink noise or white noise as
the test tone signal.
[3] Frequency This fader controls the sine-wave-generators frequency. The possible fre-
quency range is from 20Hz to 20kHz.
[4] Level The level fader controls the test tone level. It ranges from -infinity to 0dBFS.
[5] Max Level The Max Level setting defines the systems reference line level for 0dBFS.
This is a global setting. But it can also be set on a channel by channel basis.
This setting needs to correspond with the actual level calibration of the ana-
logue input- and output interfaces. As a standard, the Micro Core is shipped
with all analogue levels calibrated to +9dBu. This means that the highest
possible analog signal that leaves the mixer is +9dBu. And it also means, that
signals which are higher than +9dBu will clip the A/D converters.
[6] Init Console The Init button resets all mic gain values in reference to the seleted Max Level
setting.
[7] TB Mic Cut TB Mic Cut is a security feature to prevent a TB signal from going on-air.
The TB Mic Cut function can be activated/deactivated here. As soon as the
TB is activated to anywhere, the associated channel will be cut pre-fader.
This is valid for channels of role DJ, Guest, Input for Send 1..4.
