ME(H4SO)-35
MECHANICAL

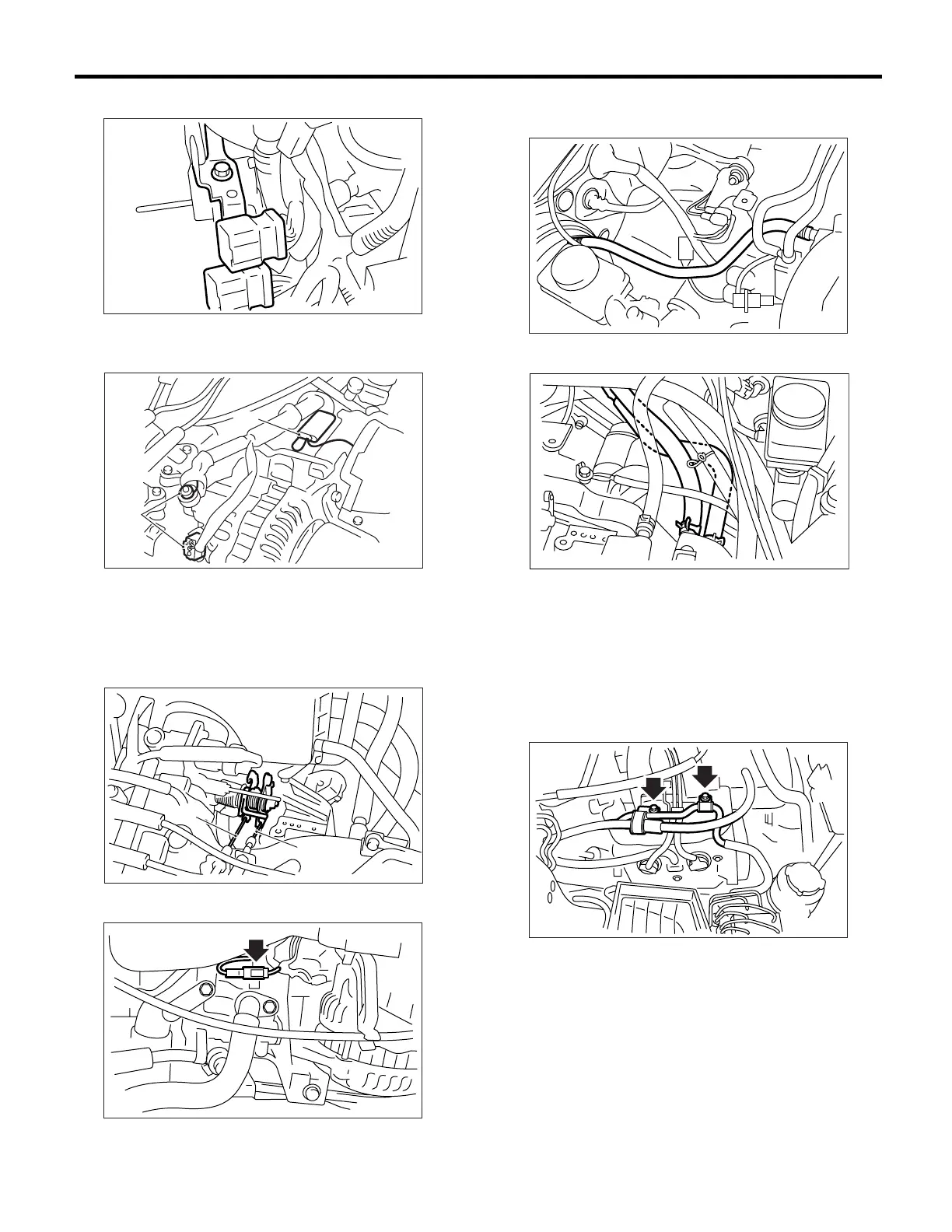

Engine Assembly
(4) Engine harness connectors
(5) Generator connector, terminal and A/C
compressor connector
(6) Accelerator cable (A) and cruise control ca-
ble (B) (Model with cruise control)
(7) Power steering switch connector
13) Disconnect the following hoses.
(1) Brake booster vacuum hose
(2) Heater inlet outlet hose
14) Remove the power steering pump from brack-
et.
(1) Remove the resonator chamber.
(2) Loosen the lock bolt and slider bolt, and
then remove the front side V-belt. <Ref. to
ME(H4SO)-43, FRONT SIDE BELT, REMOV-
AL, V-belt.>
(3) Remove the pipe with bracket.
(A) Generator connector and terminal
(B) A/C compressor connector
FU-00826
ME-00208
(A)
(B)
FU-00251
(B)
(A)
FU-00878
FU-00879
ME-00330
FU-00877
To Next Page
