ME(H4SO)-55
MECHANICAL
Crankshaft Sprocket
17.Crankshaft Sprocket
A: REMOVAL
1) Remove the V-belt. <Ref. to ME(H4SO)-43, RE-
MOVAL, V-belt.>
2) Remove the crankshaft pulley. <Ref. to
ME(H4SO)-45, REMOVAL, Crankshaft Pulley.>
3) Remove the timing belt cover. <Ref. to
ME(H4SO)-47, REMOVAL, Timing Belt Cover.>
4) Remove the timing belt assembly. <Ref. to
ME(H4SO)-48, REMOVAL, Timing Belt Assem-
bly.>
5) Remove the camshaft sprocket. <Ref. to
ME(H4SO)-53, REMOVAL, Camshaft Sprocket.>

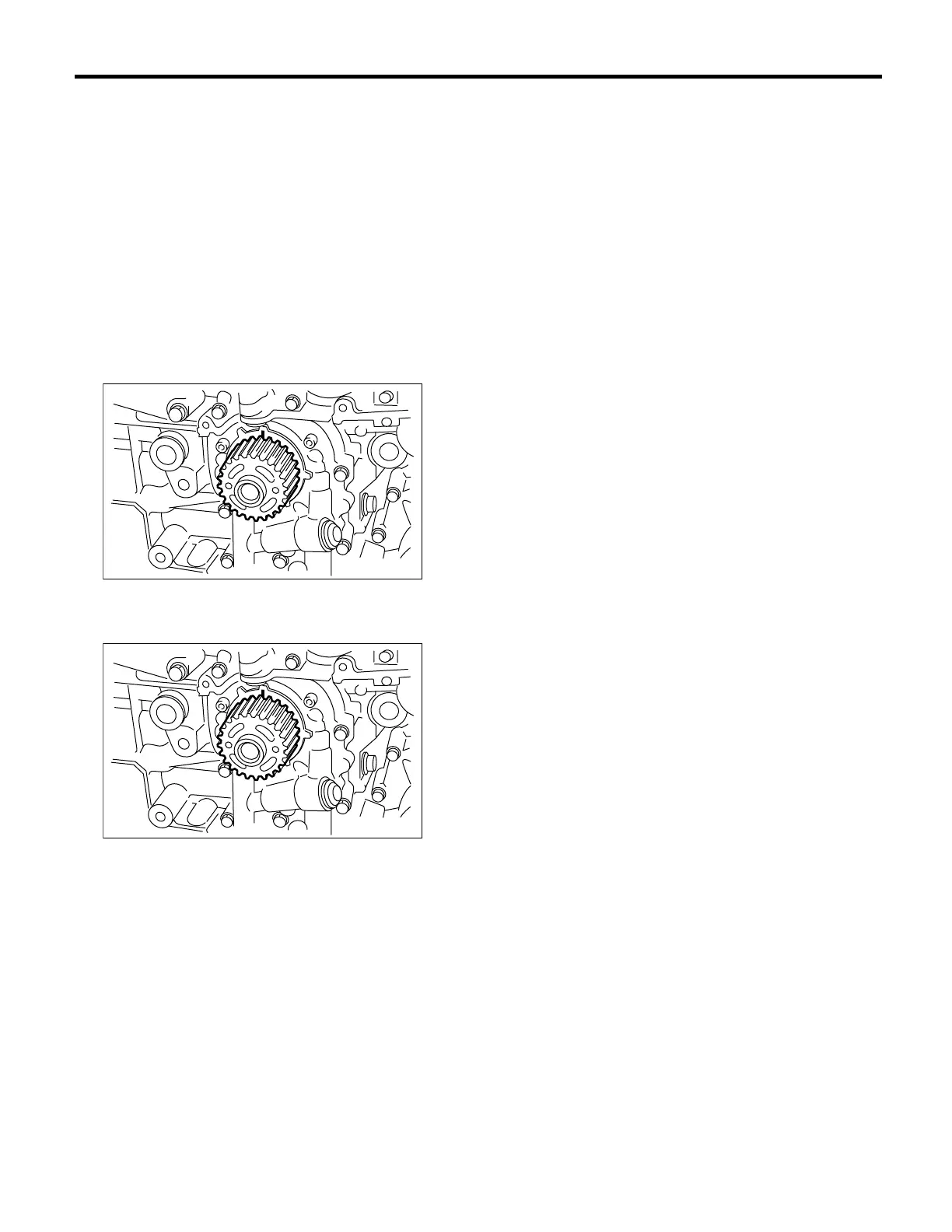

6) Remove the crankshaft sprocket.
B: INSTALLATION
1) Install the crankshaft sprocket.
2) Install the camshaft sprocket. <Ref. to
ME(H4SO)-53, INSTALLATION, Camshaft
Sprocket.>
3) Install the timing belt assembly. <Ref. to
ME(H4SO)-49, INSTALLATION, Timing Belt As-
sembly.>
4) Install the timing belt cover. <Ref. to ME(H4SO)-
47, INSTALLATION, Timing Belt Cover.>
5) Install the crankshaft pulley. <Ref. to
ME(H4SO)-45, INSTALLATION, Crankshaft Pul-
ley.>
6) Install the V-belt. <Ref. to ME(H4SO)-43, IN-
STALLATION, V-belt.>
C: INSPECTION
1) Check the sprocket teeth for abnormal wear and
scratches.
2) Make sure there is no free play between sprock-
et and key.
3) Check the crankshaft sprocket notch for sensor
for damage and contamination of foreign matter.
ME-00252
ME-00252
