Subaru Impreza 2004 - Radiator Sub Fan and Fan Motor

CO(H4SO)-24
COOLING
Radiator Sub Fan and Fan Motor
10.Radiator Sub Fan and Fan
Motor

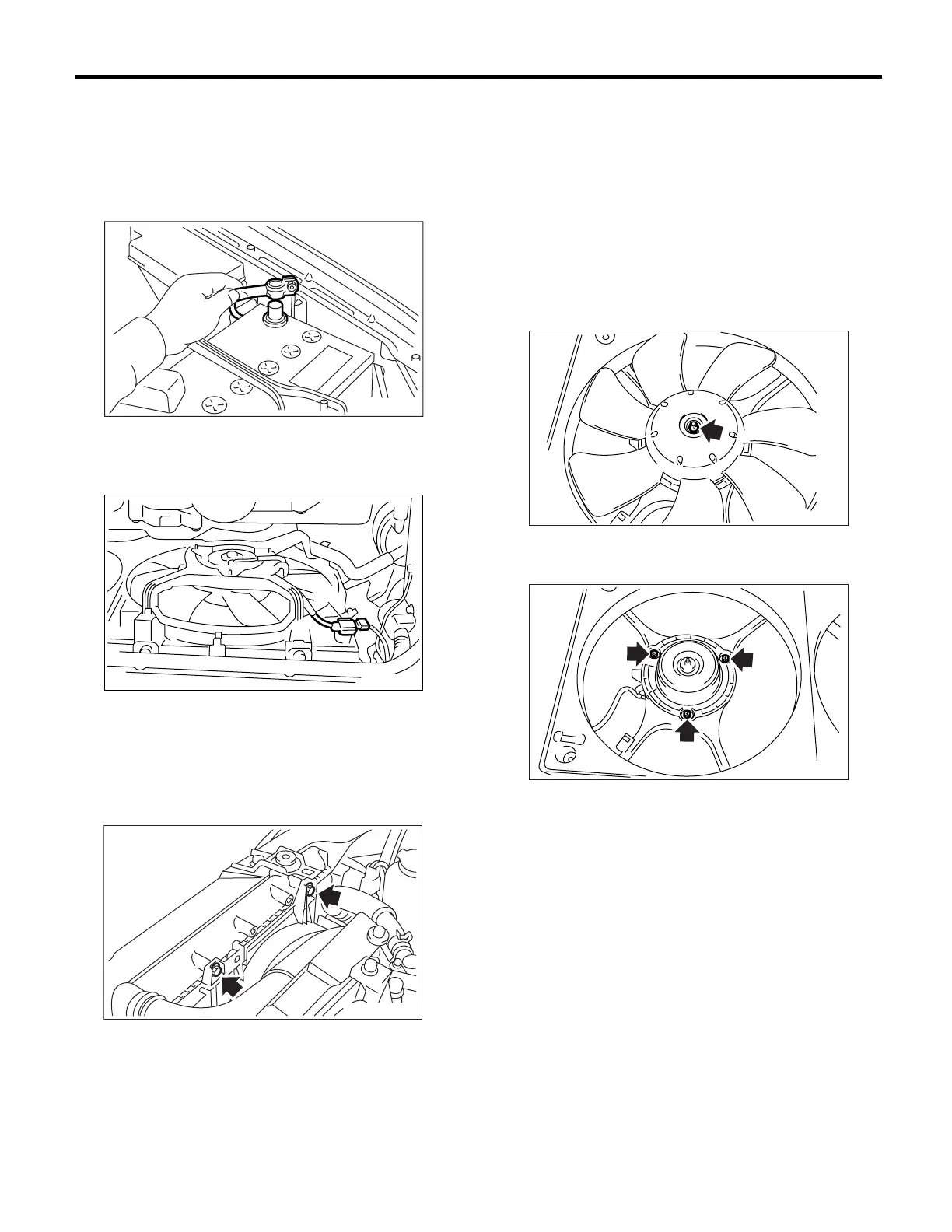

A: REMOVAL
1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Lift-up the vehicle.
4) Remove the under cover.
5) Disconnect the connector of sub fan motor (B).
6) Remove the ATF hose from clips of radiator sub
fan motor assembly. (AT model)
7) Lower the vehicle.
8) Remove the air intake duct. (2.5 L model)
9) Remove the bolts which hold the radiator sub fan
shroud to radiator.
10) Remove the radiator sub fan motor assembly
through the under side of vehicle.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Refer to COMPONENT for tightening torque. <Ref.
to CO(H4SO)-3, COMPONENT, General Descrip-
tion.>
C: DISASSEMBLY
1) Remove the clip which holds the motor connec-
tor onto shroud.
2) Remove the nut which holds the fan itself onto
fan motor.
3) Remove the bolts which install the fan motor
onto shroud.
D: ASSEMBLY
Assemble in the reverse order of disassembly.
NOTE:
Refer to COMPONENT for tightening torque. <Ref.
to CO(H4SO)-3, COMPONENT, General Descrip-
tion.>
FU-00009
CO-00225
(B)
CO-00101
CO-00049
CO-00050
