Subaru Impreza 2004 - Radiator Main Fan and Fan Motor

CO(H4SO)-23
COOLING
Radiator Main Fan and Fan Motor
9. Radiator Main Fan and Fan
Motor
A: REMOVAL

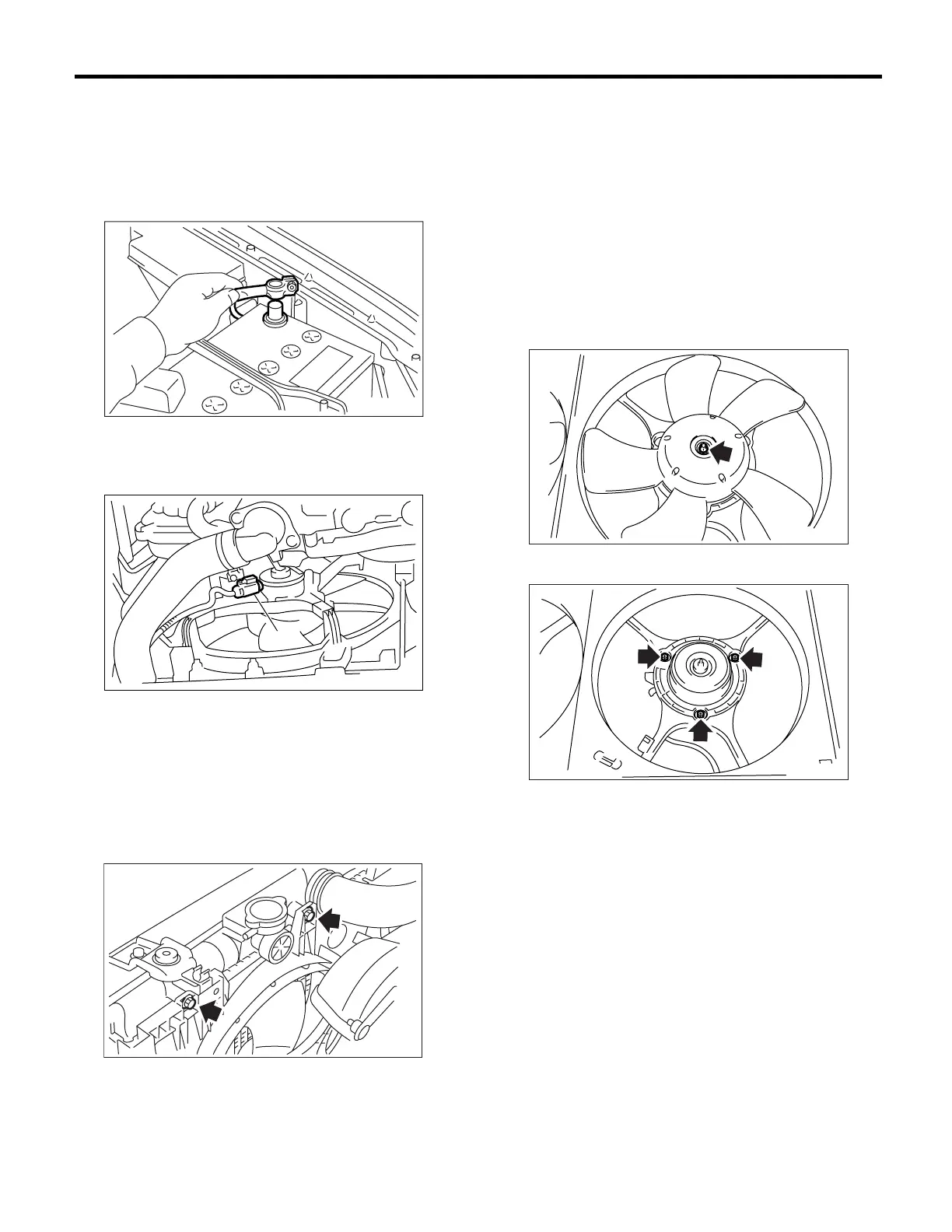

1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Lift-up the vehicle.
4) Remove the under cover.
5) Disconnect the connector of main fan motor (A).
6) Remove the ATF hose from clip of radiator main
fan motor assembly. (AT model)
7) Lower the vehicle.
8) Disconnect the overflow hose.
9) Remove the reservoir tank. <Ref. to CO(H4SO)-
25, REMOVAL, Reservoir Tank.>
10) Remove the bolts which secure the radiator
main fan shroud to radiator.
11) Remove the radiator fan motor assembly.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
• If it is difficult to install the radiator main fan motor
assembly, first loosen the bolts which hold the radi-
ator sub fan motor assembly.
• Refer to COMPONENT for tightening torque.
<Ref. to CO(H4SO)-3, COMPONENT, General De-
scription.>
C: DISASSEMBLY
1) Remove the nut which holds the fan itself onto
fan motor and shroud assembly.
2) Remove the bolts which install the fan motor.
D: ASSEMBLY
Assemble in the reverse order of disassembly.
NOTE:
Refer to COMPONENT for tightening torque. <Ref.
to CO(H4SO)-3, COMPONENT, General Descrip-
tion.>
FU-00009
(A)
CO-00224
CO-00096
CO-00047
CO-00048
