Subaru Impreza 2004 - Timing Belt Cover

ME(H4SO)-47
MECHANICAL
Timing Belt Cover
14.Timing Belt Cover
A: REMOVAL
1) Remove the V-belt. <Ref. to ME(H4SO)-43, RE-
MOVAL, V-belt.>
2) Remove the crankshaft pulley. <Ref. to
ME(H4SO)-45, REMOVAL, Crankshaft Pulley.>
3) Remove the timing belt cover (LH).
4) Remove the front timing belt cover.
B: INSTALLATION
1) Install the front timing belt cover.
Tightening torque:
5 N·m (0.5 kgf-m, 3.6 ft-lb)
2) Install the timing belt cover (LH).
Tightening torque:
5 N·m (0.5 kgf-m, 3.6 ft-lb)
3) Install the crankshaft pulley. <Ref. to
ME(H4SO)-45, INSTALLATION, Crankshaft Pul-
ley.>
4) Install the V-belt. <Ref. to ME(H4SO)-43, IN-
STALLATION, V-belt.>
C: INSPECTION
Make sure the cover is not damaged.

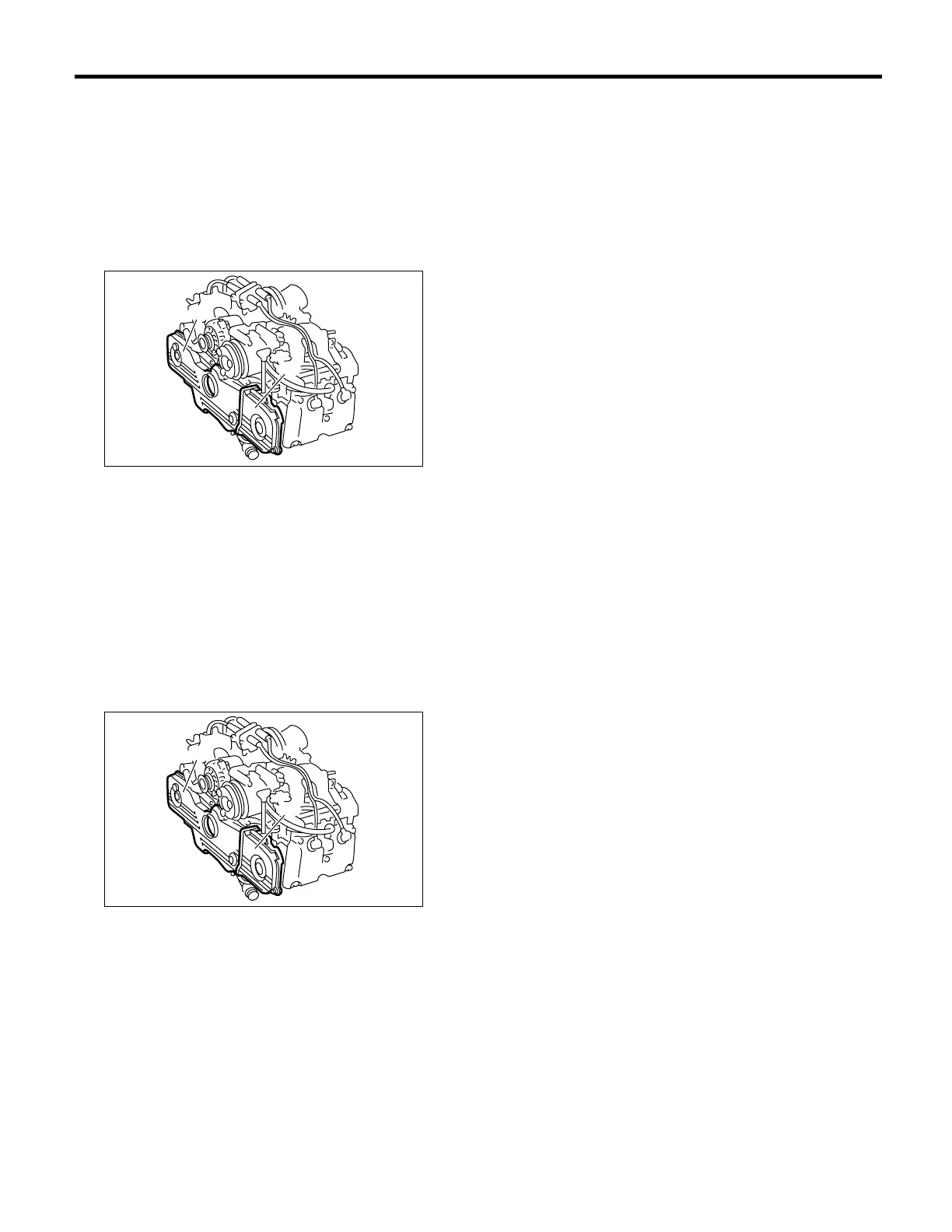

(A) Timing belt cover (LH)
(B) Front timing belt cover
(A) Timing belt cover (LH)
(B) Front timing belt cover
ME-00229
(A)
(B)
ME-00229
(A)
(B)
