FU(H4SO)-15
FUEL INJECTION (FUEL SYSTEMS)
Throttle Body

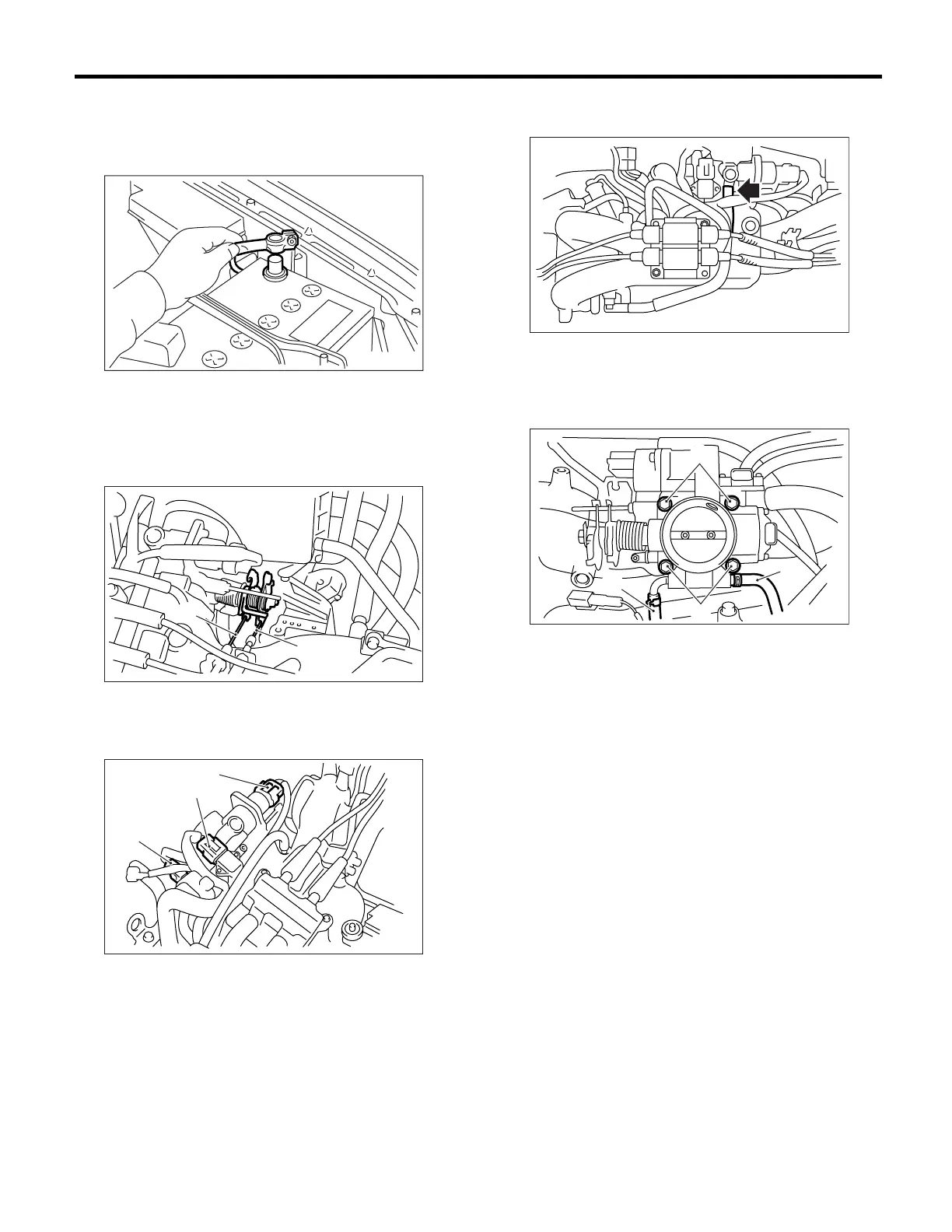

2. Throttle Body
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the air cleaner case. <Ref. to
IN(H4SO)-5, REMOVAL, Air Cleaner Case.>
3) Disconnect the accelerator cable (A).
4) Disconnect the cruise control cable (B). (With
cruise control model)
5) Disconnect the connectors from the idle air con-
trol solenoid valve, throttle position sensor and
manifold absolute pressure sensor.
6) Disconnect the air by-pass hose from throttle
body. (1.6 L model)
7) Disconnect the engine coolant hoses (A) from
throttle body.
8) Remove the bolts (B) which install the throttle
body to intake manifold.
B: INSTALLATION
1) Install in the reverse order of removal.
NOTE:
• Replace the gasket with a new one.
• For tightening torque, refer to “COMPONENT”.
<Ref. to FU(H4SO)-3, COMPONENT, General De-
scription.>
2) Adjust the accelerator cable play. <Ref. to
SP(H4SO)-9, INSTALLATION, Accelerator Control
Cable.>
(A) Throttle position sensor
(B) Manifold absolute pressure sensor
(C) Idle air control solenoid valve
FU-00009
FU-00251
(B)
(A)
FU-00378
(B)
(A)
(C)
FU-00957
FU-00253
(B)
(B)
(A)
(A)
