FU(H4SO)-53
FUEL INJECTION (FUEL SYSTEMS)
Fuel Filler Pipe
22.Fuel Filler Pipe

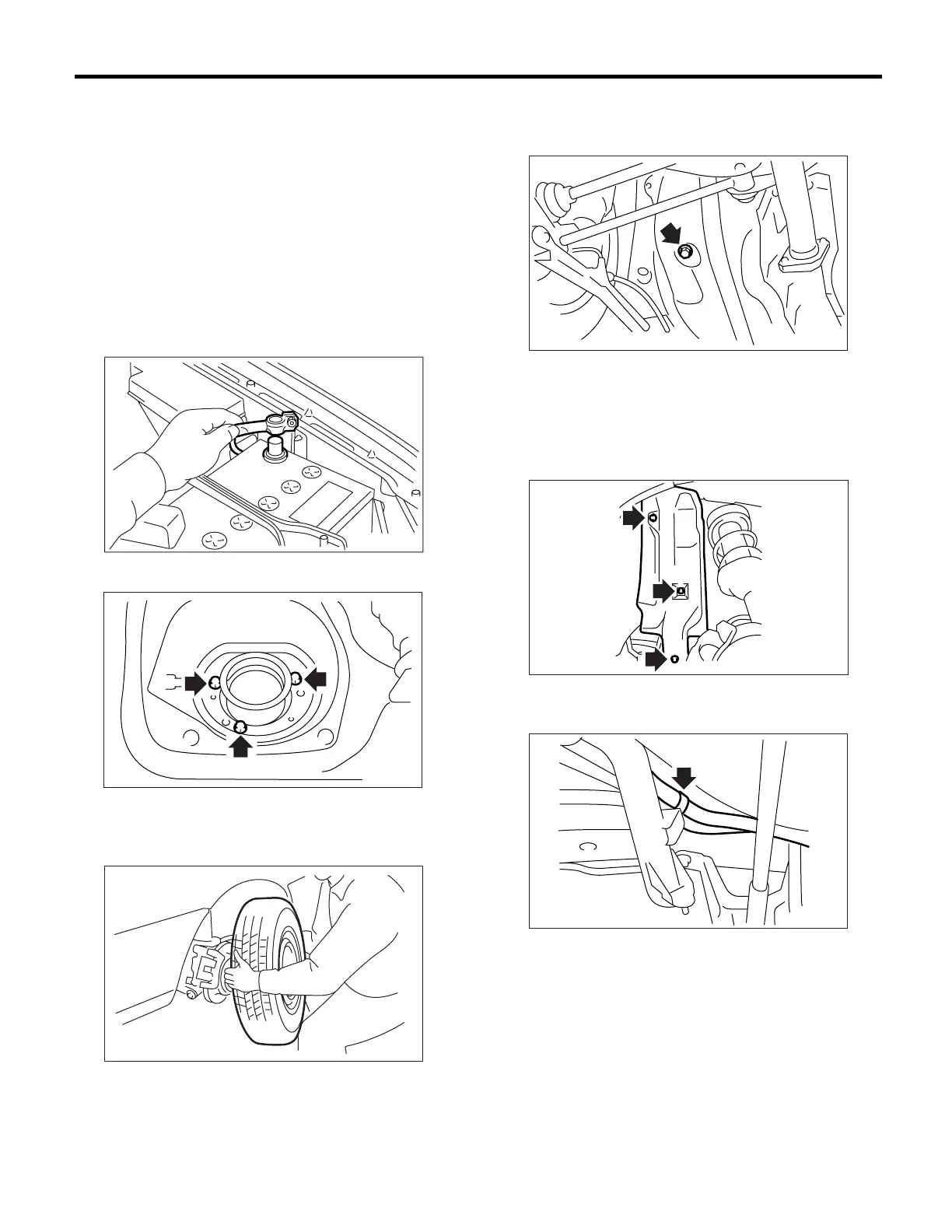

A: REMOVAL
WARNING:
• Place “NO FIRE” signs near working area.
• Be careful not to spill fuel.
1) Set the vehicle on a lift.
2) Release the fuel pressure. <Ref. to FU(H4SO)-
50, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
3) Open the fuel filler flap lid and remove the fuel
filler cap.
4) Disconnect the ground cable from battery.
5) Remove the screws holding packing in place.
6) Loosen the rear wheel nuts RH.
7) Lift-up the vehicle.
8) Remove the rear wheel RH.
9) Drain fuel from the fuel tank. Set a container un-
der the vehicle, and then remove the drain plug
from fuel tank.
10) Tighten the fuel drain plug, and then install the
front tank cover RH.
Tightening torque:
26 N·m (2.7 kgf-m, 19.2 ft-lb)
11) Remove the fuel filler pipe protector.
12) Separate the evaporation hoses from the clip of
fuel filler pipe.
FU-00009
FU-00095
FU-00096
FU-00898
FU-00947
FU-00098
To Next Page
