FU(H4SO)-54
FUEL INJECTION (FUEL SYSTEMS)
Fuel Filler Pipe

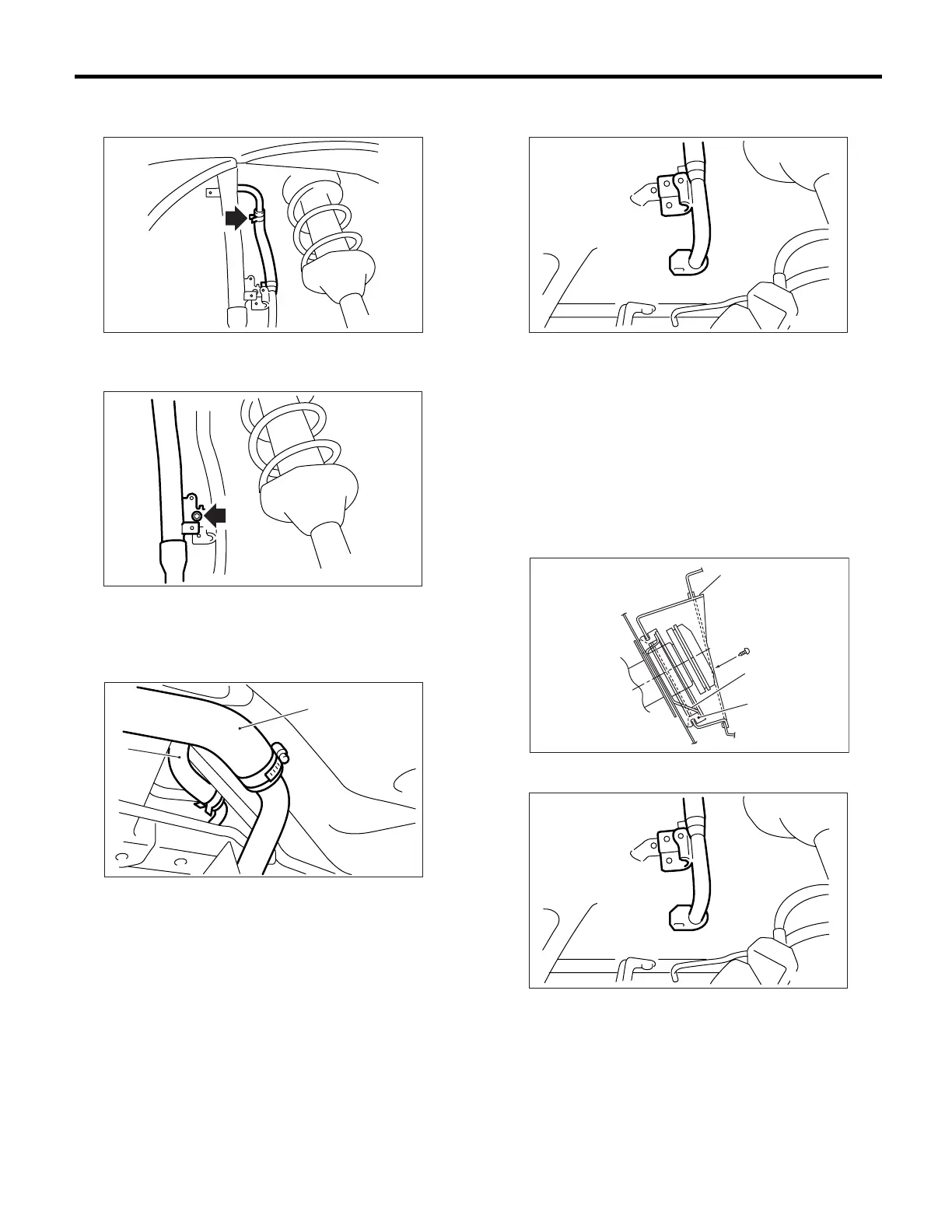

13) Disconnect the air vent hose from fuel filler
pipe.
14) Remove the bolts which hold the fuel filler pipe
bracket on body.
15) Loosen the clamp and separate the fuel filler
hose (A) from fuel filler pipe.
16) Move the clip and separate the air vent hose
(B).
17) Remove the fuel filler pipe to the under side of
vehicle.
18) Remove the air vent pipe together with clip
from body.
B: INSTALLATION
1) Hold the fuel filler flap open.
2) Set the fuel saucer (A) with rubber packing (C),
and then insert the fuel filler pipe into hole from in-
ner side of apron.
3) Align the holes in fuel filler pipe neck, and then
set the cup (B) and tighten screws.
NOTE:
If the edges of rubber packing are folded toward in-
side, straighten it with a screwdriver.
4) Install the air vent pipe.
FU-00099
FU-00100
(A)
(B)
FU-00101
FU-00102
FU-00103
(A)
(C)
(B)
FU-00102
