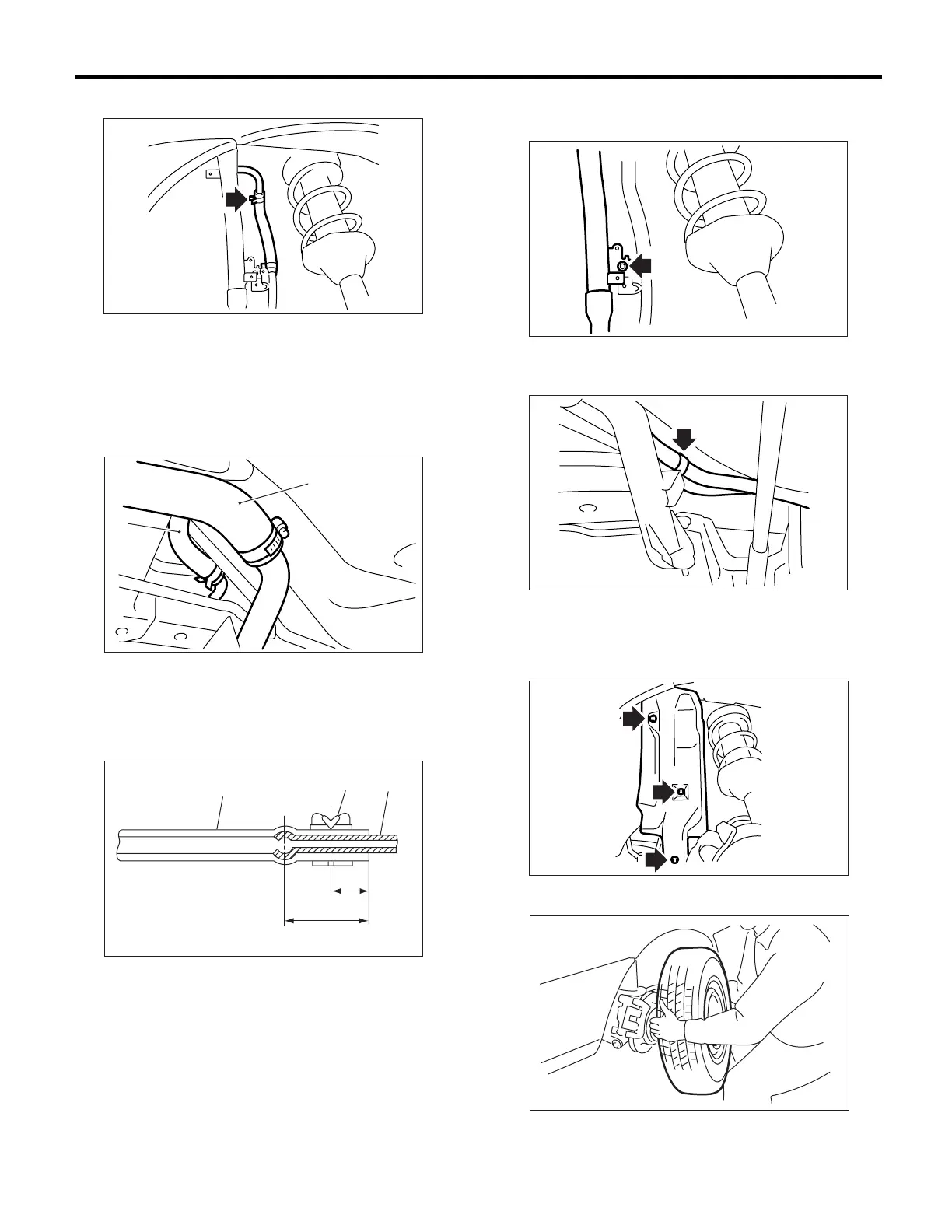

FU(H4SO)-55
FUEL INJECTION (FUEL SYSTEMS)
Fuel Filler Pipe
5) Connect the air vent hose to the fuel filler pipe.
6) Insert the fuel filler hose (A) approx. 35 to 40 mm
(1.38 to 1.57 in) over lower end of fuel filler pipe,
and then tighten the clamp.
CAUTION:
Do not allow clips to touch the air vent hose (B)
and rear suspension crossmember.
7) Insert the air vent hose approx. 25 to 30 mm
(0.98 to 1.18 in) into the lower end of air vent pipe,
and then hold the clip.
L = 27.5
±
±±
±
2.5 mm (1.083
±
±±
±
0.098 in)
8) Tighten the bolt which holds the fuel filler pipe
bracket on body.
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.4
ft-lb)
9) Hold the evaporation hoses onto clip of fuel filler
pipe.
10) Install the fuel filler pipe protector.
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.4
ft-lb)
11) Install the rear wheel RH.
12) Lower the vehicle.
13) Tighten the wheel nuts.
(1) Hose
(2) Clip
(3) Pipe
FU-00099
(A)
(B)
FU-00101
FU-00104
(1)
(2)
L/2
L
(3)
FU-00100
FU-00098
FU-00947
FU-00096
