EC(H4SO)-6
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)
Canister
5. Canister

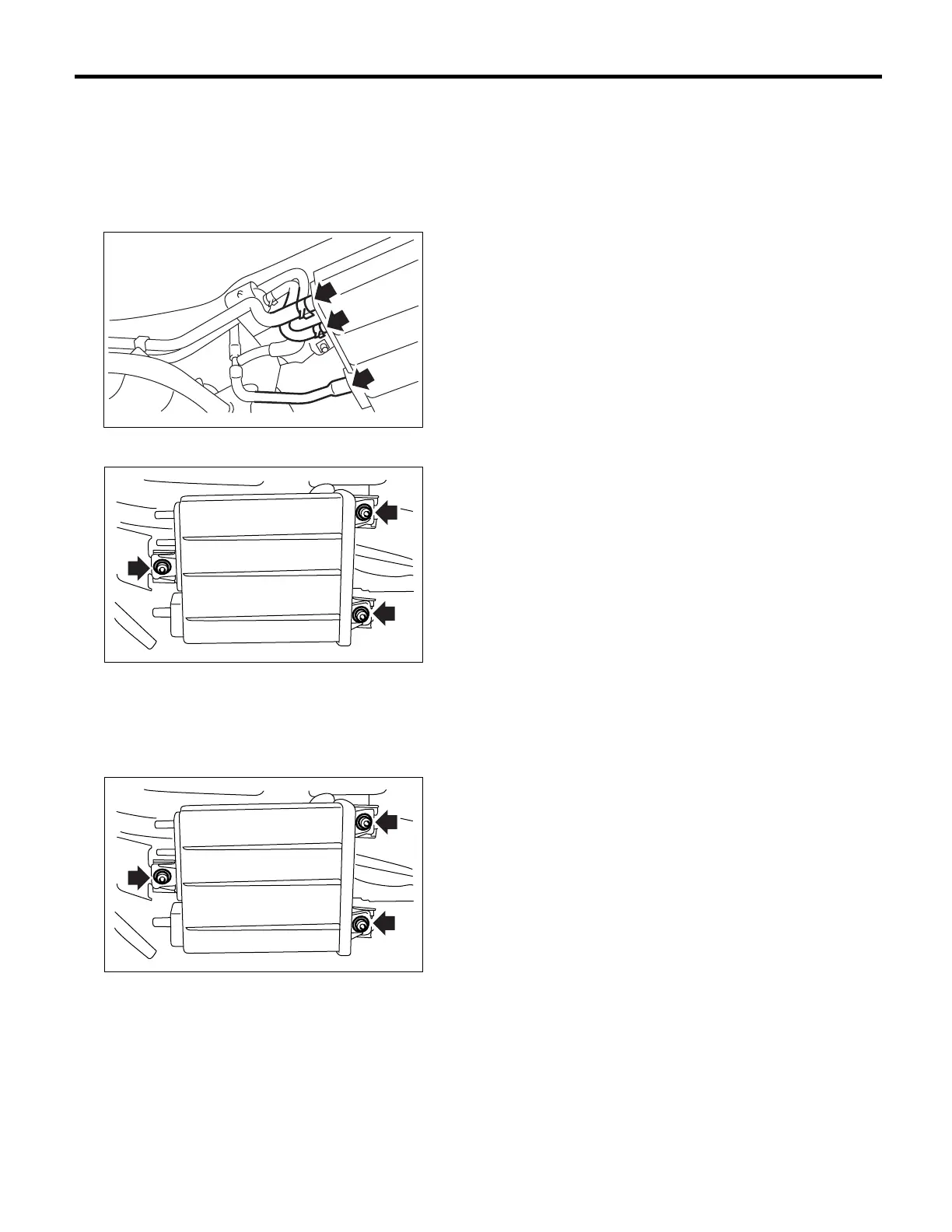

A: REMOVAL
1) Lift-up the vehicle.
2) Loosen the two clamps which hold the two can-
ister hoses, and then disconnect the three evapo-
ration hoses from canister.
3) Remove the canister from body.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
23 N·m (2.3 kgf-m, 17 ft-lb)
C: INSPECTION
Make sure the canister and canister hoses are not
cracked or loose.
EC-00012
EC-00013
EC-00013
