LU(H4SO)-15
LUBRICATION
Oil Pan and Strainer
5. Oil Pan and Strainer
A: REMOVAL
1) Set the vehicle on a lift.
2) Remove the front wheels.
3) Disconnect the ground cable from battery.
4) Remove the air intake duct and air cleaner case.
<Ref. to IN(H4SO)-6, REMOVAL, Air Intake Duct.>
and <Ref. to IN(H4SO)-5, REMOVAL, Air Cleaner
Case.>
5) Remove the resonator chamber. <Ref. to
IN(H4SO)-7, REMOVAL, Resonator Chamber.>
6) Remove the pitching stopper.
7) Remove the radiator upper brackets.
8) Support the engine with a lifting device and wire
ropes.
9) Lift-up the vehicle.
CAUTION:
When lifting up the vehicle, rise up the wire
rope together.
10) Remove the under cover.
11) Drain the engine oil.
Set a container under the vehicle, and then remove
the drain plug from oil pan.
12) Remove the front and center exhaust pipes.
<Ref. to EX(H4SO)-6, REMOVAL, Front Exhaust
Pipe.> and <Ref. to EX(H4SOw/oOBD)-6, RE-
MOVAL, Front Exhaust Pipe.>
13) Remove the nuts which install the front cushion
rubber onto front crossmember.
14) Remove the bolts which install the oil pan on
cylinder block while raising up engine.

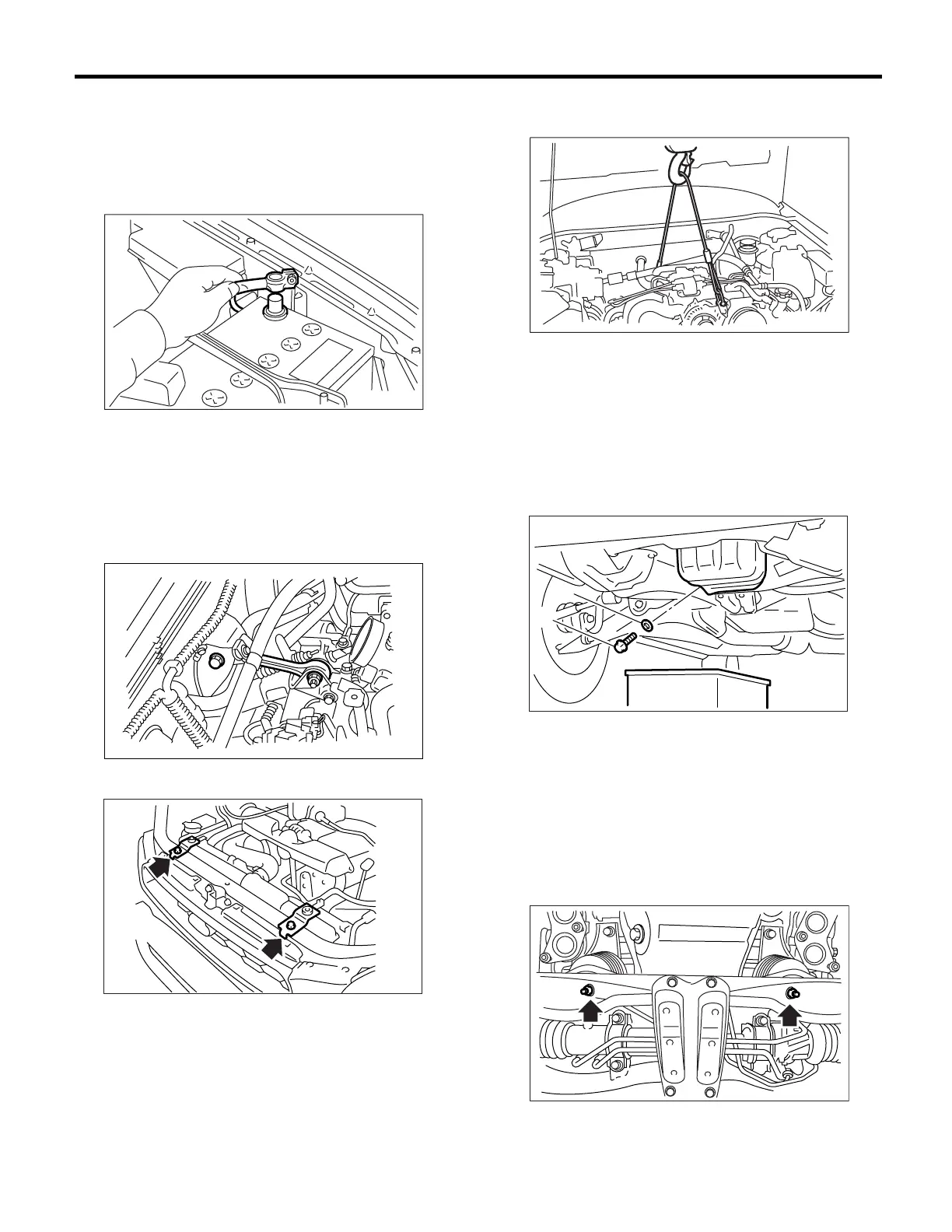

FU-00009
ME-00213
LU-00027
(A) Gasket
(B) Drain plug
LU-00028
LU-00029
(B)
(A)
LU-00030
