SC(H4SO)-13
STARTING/CHARGING SYSTEMS
Generator

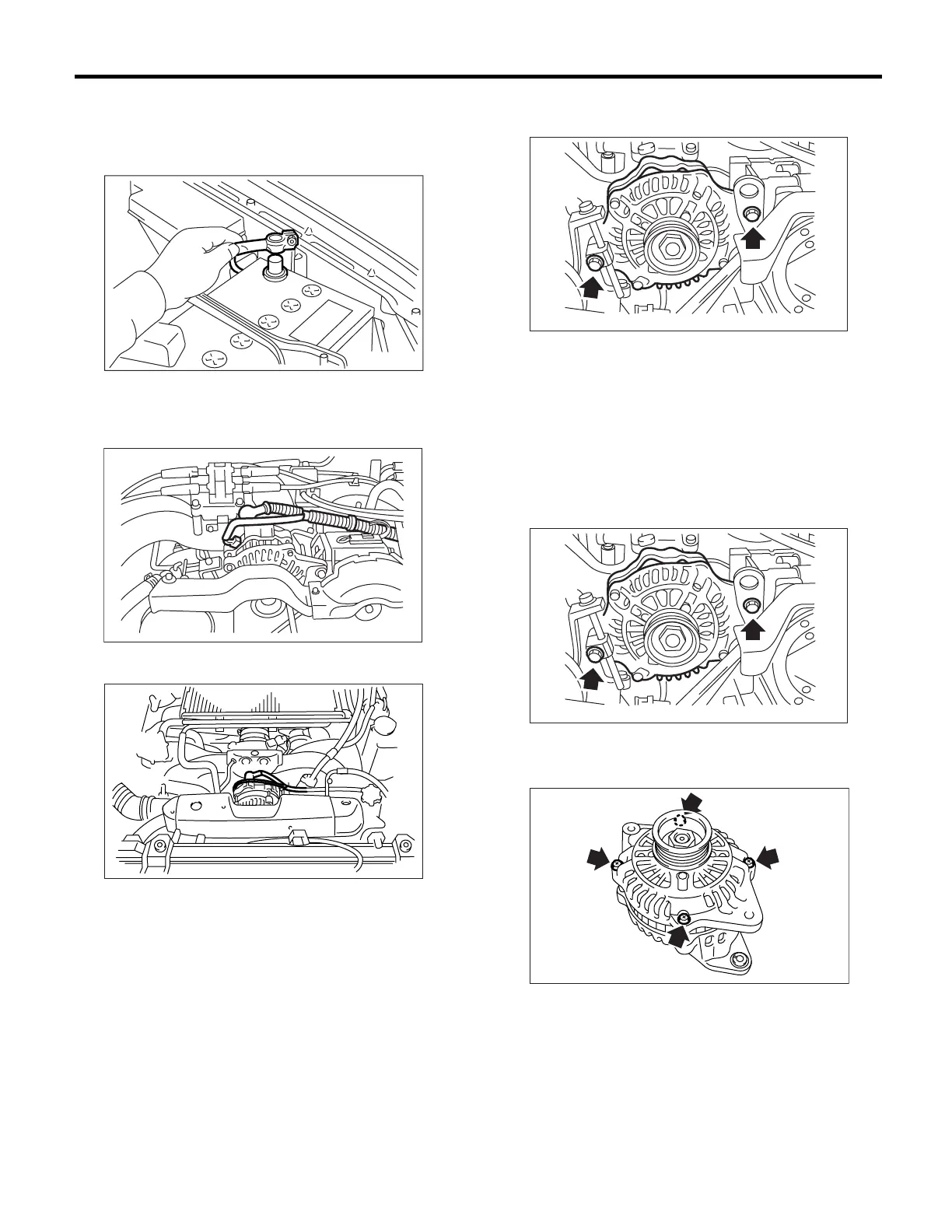

3. Generator
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Disconnect the connector and terminal from
generator.
• NON-TURBO MODEL
• TURBO MODEL
3) Remove the V-belt cover.
4) Remove the front side V-belt.
<Ref. to ME(H4SO)-43, FRONT SIDE BELT, RE-
MOVAL, V-belt.> or <Ref. to ME(H4DOTC)-54,
FRONT SIDE BELT, REMOVAL, V-belt.>
5) Remove the bolts which install generator onto
bracket.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
25 N·m (2.5 kgf-m, 18.1 ft-lb)
CAUTION:
Check and adjust the V-belt tension. <Ref. to
ME(H4SO)-44, INSPECTION, V-belt.> or <Ref. to
ME(H4DOTC)-55, INSPECTION, V-belt.>
C: DISASSEMBLY
1) Remove the four through-bolts.
FU-00009
SC-00029
SC-00143
SC-00032
SC-00032
SC-00078
To Next Page
