IN(H4SO)-4
INTAKE (INDUCTION)
Air Cleaner Element
2. Air Cleaner Element
A: REMOVAL
1) Remove the air intake duct from air cleaner
case.
2) Remove the bolt (A) which secures the air clean-
er case to stay.
3) Remove the clip (B) above the air cleaner case.
4) Remove the air cleaner element.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
• Fasten with a clip after inserting the lower tab of
case.
• Refer to “COMPONENT” for tightening torque.
<Ref. to IN(H4SO)-2, COMPONENT, General De-
scription.>
C: INSPECTION
Replace if excessively damaged or dirty.

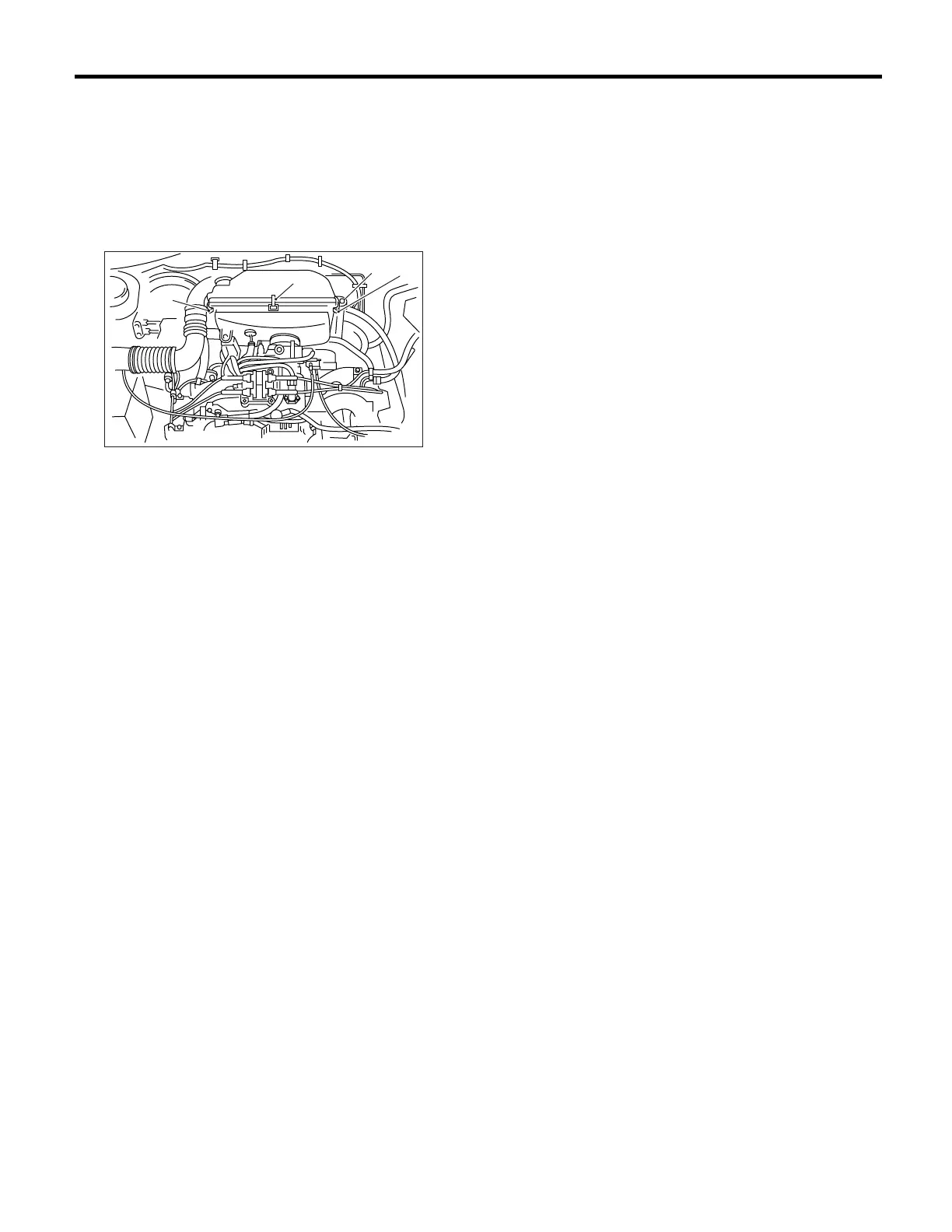

IN-00039
(B)
(B)
(B)
(A)
