FU(H4SO)-29
FUEL INJECTION (FUEL SYSTEMS)
Camshaft Position Sensor
6. Camshaft Position Sensor
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Disconnect the connector from the camshaft po-
sition sensor.
3) Remove the bolt which installs the camshaft po-
sition sensor to the camshaft position sensor sup-
port.
4) Remove the bolt which installs the camshaft po-
sition sensor support to the camshaft cap LH.
5) Remove the camshaft position sensor and cam-
shaft position sensor support as a unit.
6) Remove the camshaft position sensor itself.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
For tightening torque, refer to “COMPONENT”.
<Ref. to FU(H4SO)-3, COMPONENT, General De-
scription.>

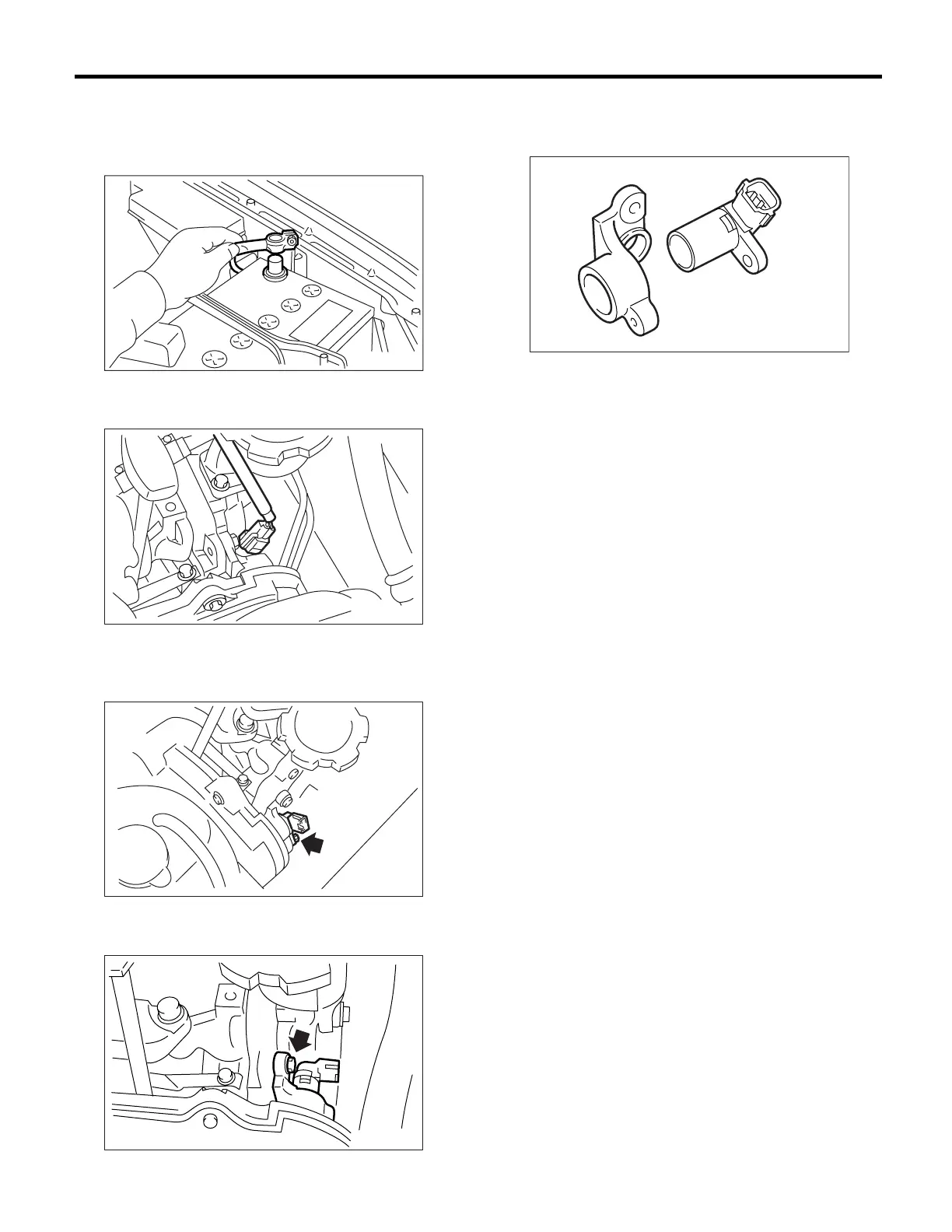

FU-00009
