LU(H4SO)-11
LUBRICATION
Oil Pump
4. Oil Pump

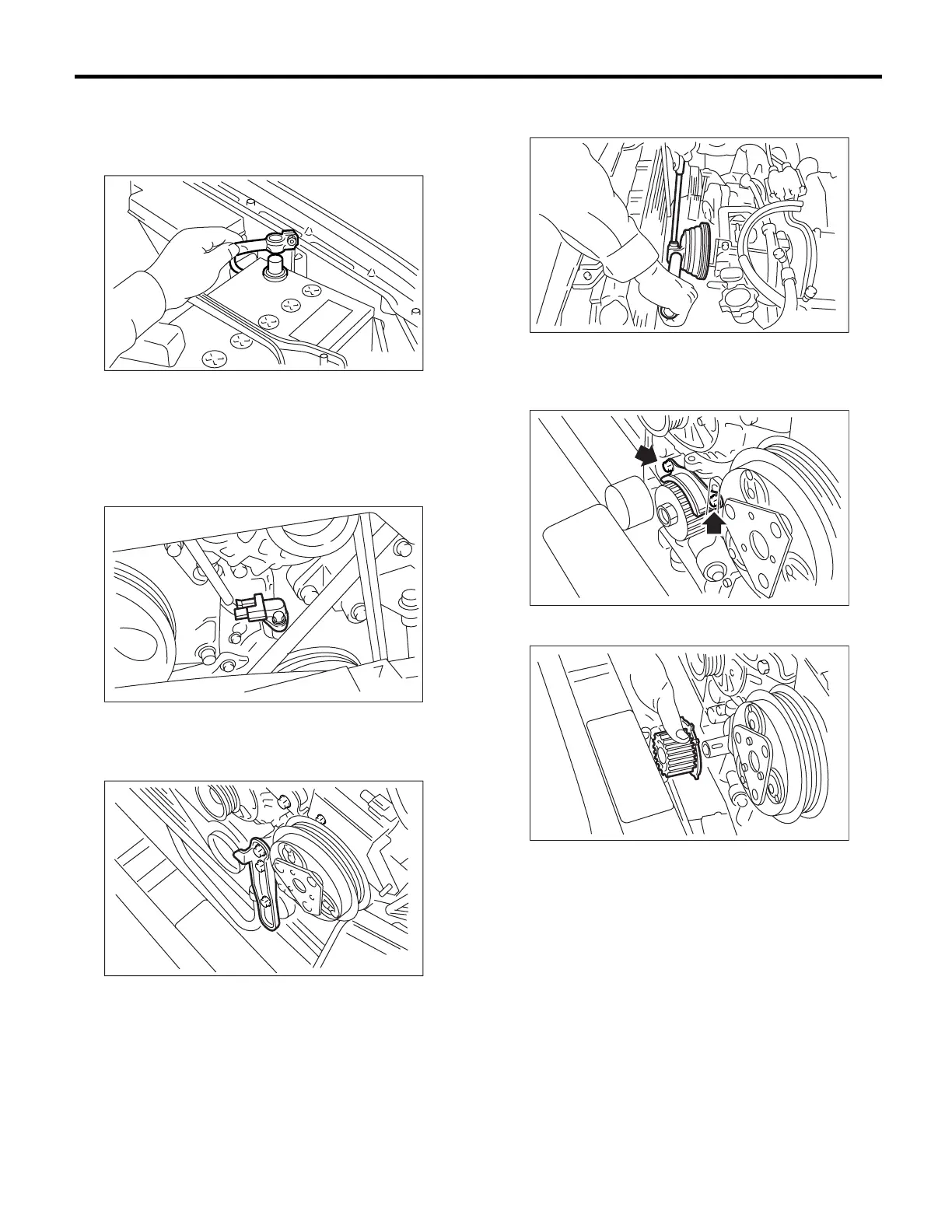

A: REMOVAL
1) Disconnect the ground cable from battery.
2) Lift-up the vehicle.
3) Remove the under cover.
4) Lower the vehicle.
5) Remove the radiator. <Ref. to CO(H4SO)-19,
REMOVAL, Radiator.>
6) Remove the crankshaft position sensor.
7) Remove the V-belts.
<Ref. to ME(H4SO)-43, REMOVAL, V-belt.>
8) Remove the belt tensioner.
9) Remove the crankshaft pulley by using ST.
ST 499977400 CRANKSHAFT PULLEY
WRENCH (1.6 L and 2.0 L
models)
ST 499977100 CRANKSHAFT PULLEY
WRENCH (2.5 L model)
10) Remove the water pump. <Ref. to CO(H4SO)-
15, REMOVAL, Water Pump.>
11) Remove the timing belt guide. (MT model)
12) Remove the crankshaft sprocket.
13) Remove the bolts which install the oil pump
onto cylinder block.
