CO(H4SO)-15
COOLING
Water Pump
5. Water Pump
A: REMOVAL
1) Remove the radiator. <Ref. to CO(H4SO)-19,
REMOVAL, Radiator.>
2) Remove the V-belts.
<Ref. to ME(H4SO)-43, REMOVAL, V-belt.>
3) Remove the timing belt.
<Ref. to ME(H4SO)-48, TIMING BELT, REMOV-
AL, Timing Belt Assembly.>
4) Remove the automatic belt tension adjuster.
5) Remove the belt idler No. 2.
6) Remove the camshaft sprocket (LH) by using
ST.
ST 18231AA010 CAMSHAFT SPROCKET
WRENCH
NOTE:
Also the CAMSHAFT SPROCKET WRENCH
(499207100) can be used.
7) Remove the belt cover No. 2 (LH).
8) Remove the tensioner bracket.
9) Disconnect the hose from water pump.
10) Remove the water pump.
B: INSTALLATION
1) Install the water pump onto cylinder block (LH).
NOTE:
• Replace the gasket with a new one.
• When installing the water pump, tighten the bolts
in two stages in alphabetical sequence as shown in
the figure.

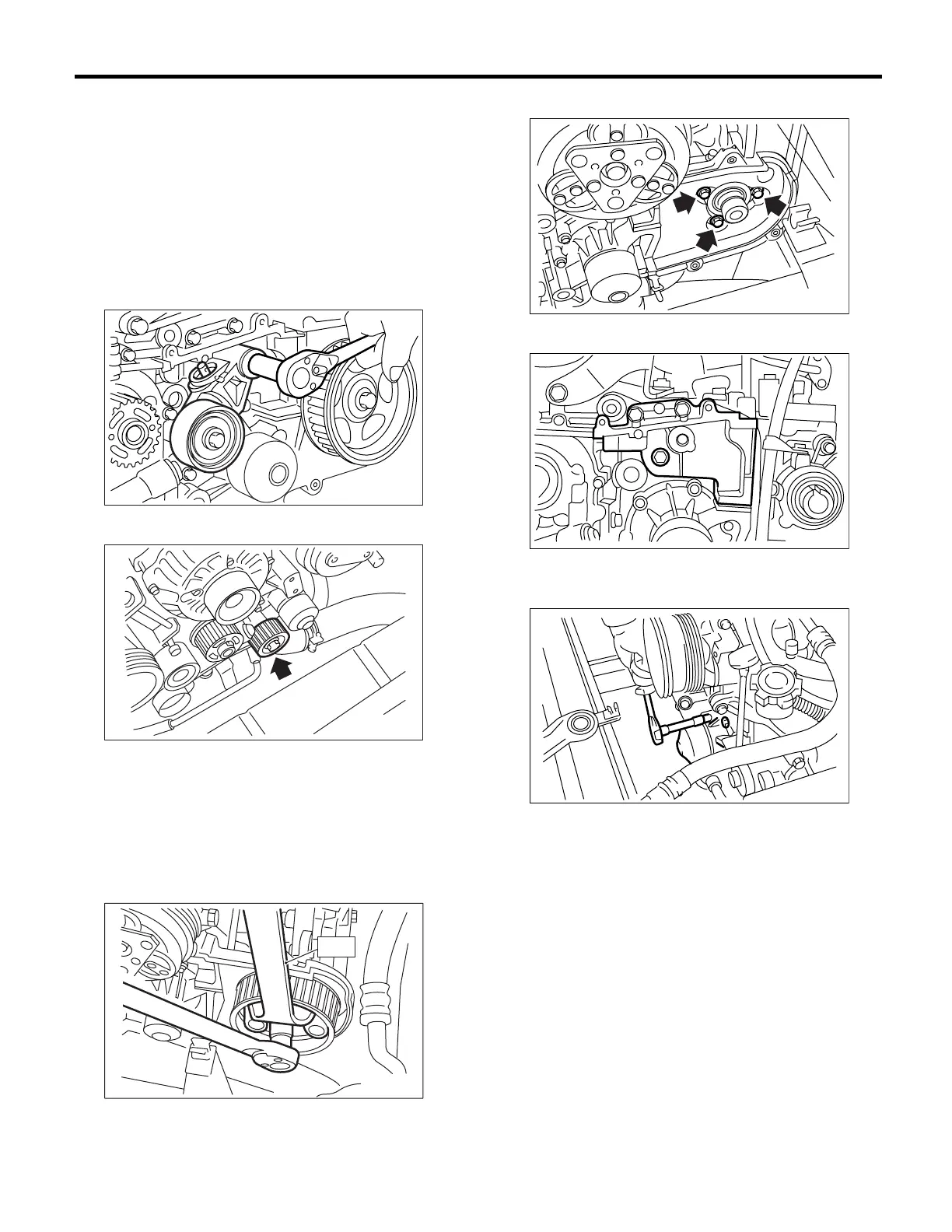

CO-00016
CO-00017
CO-00018
ST
CO-00019
CO-00020
CO-00021
