FU(H4SO)-59
FUEL INJECTION (FUEL SYSTEMS)
Fuel Level Sensor
24.Fuel Level Sensor
A: REMOVAL
WARNING:
• Place “NO FIRE” signs near working area.
• Be careful not to spill fuel.
NOTE:
Fuel level sensor is built in the fuel pump assembly.
1) Remove the fuel pump assembly. <Ref. to
FU(H4SO)-57, REMOVAL, Fuel Pump.>
2) Disconnect the connector from fuel pump brack-
et.
3) Remove the bolts which install the fuel level sen-
sor on mounting bracket.
B: INSTALLATION
Install in the reverse order of removal.

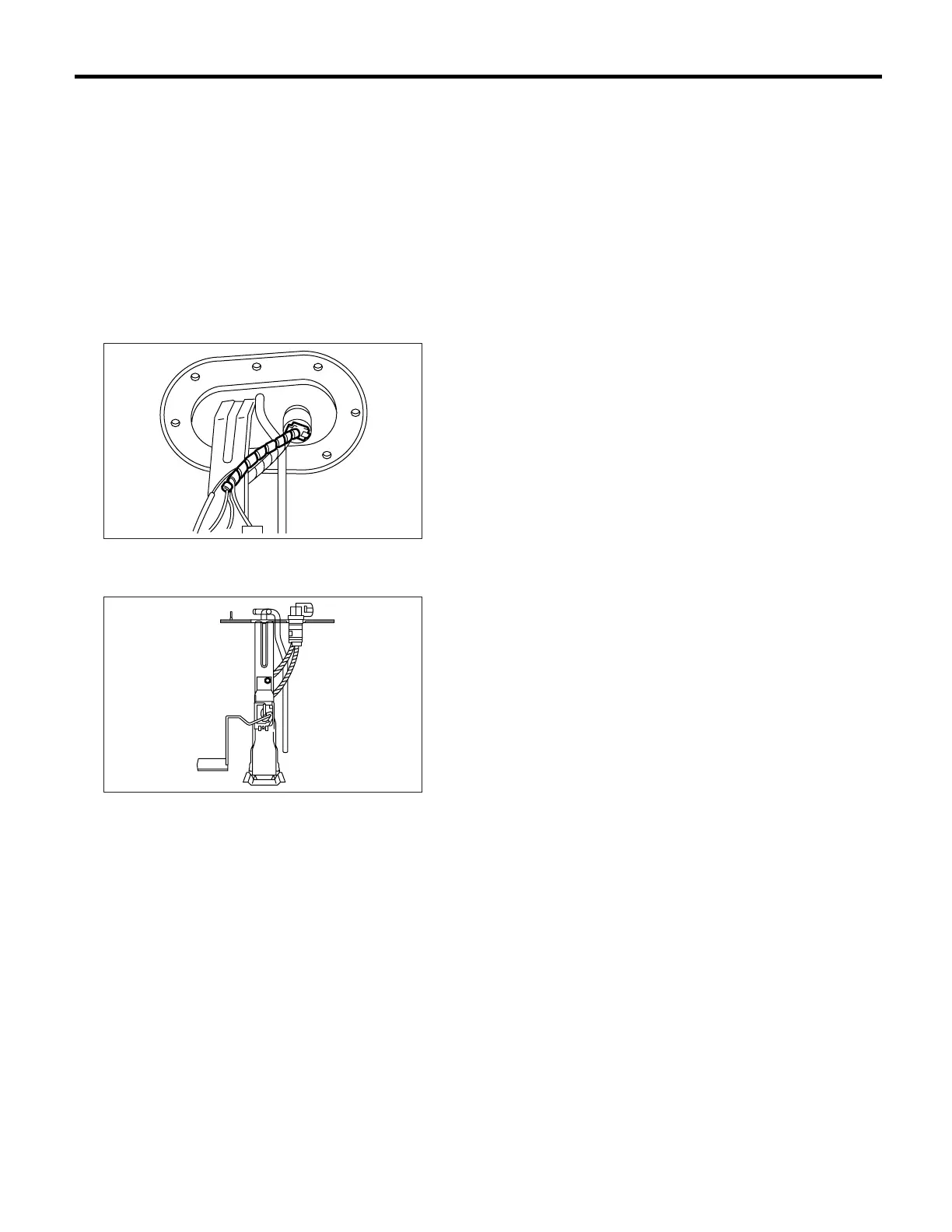

FU-00903
FU-00904
