FU(H4SO)-58
FUEL INJECTION (FUEL SYSTEMS)
Fuel Pump
B: INSTALLATION
Install in the reverse order of removal. Do the fol-
lowing:
NOTE:
Replace the gasket with a new one.
(1) Ensure the sealing portion is free from fuel or
foreign particles before installation.

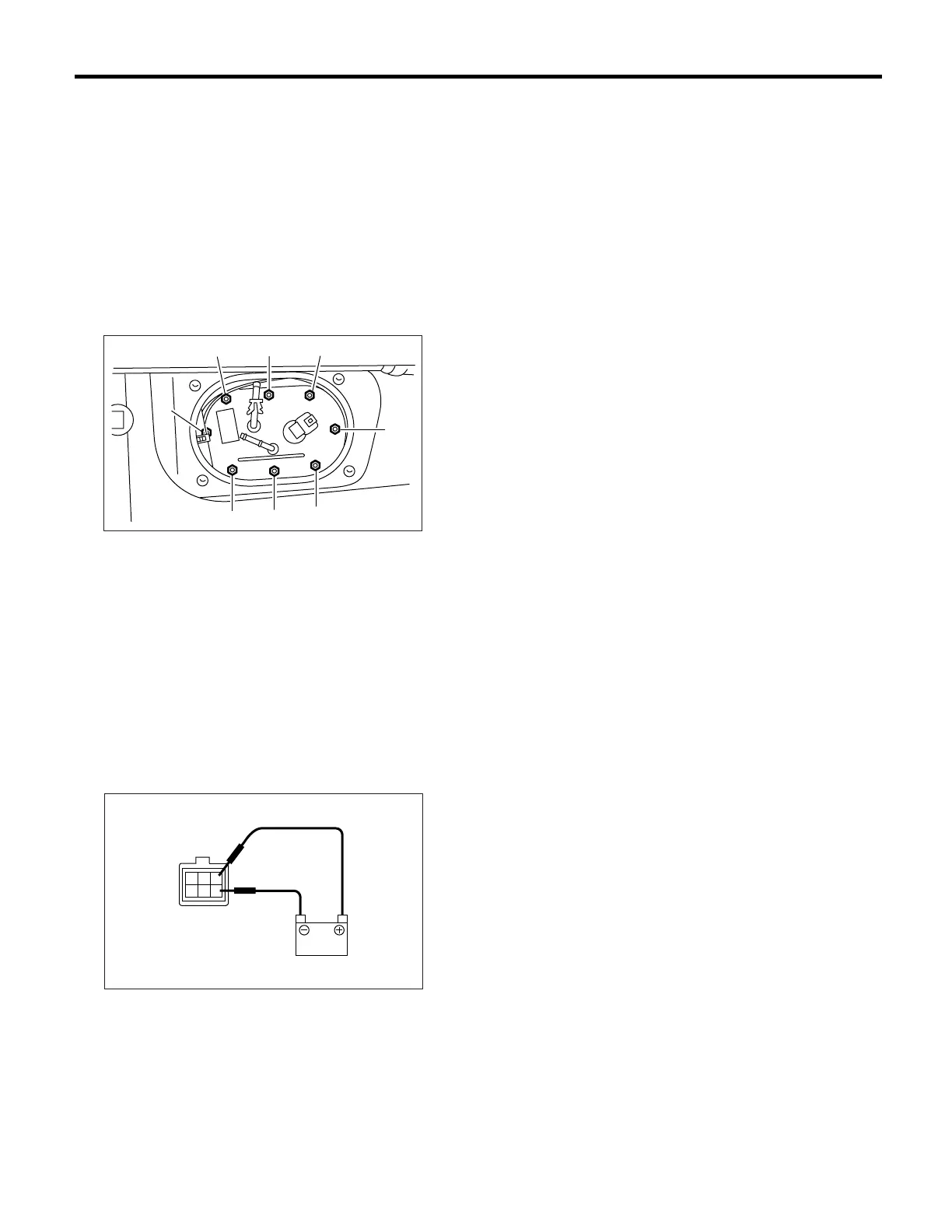

(2) Tighten the nuts to specified torque in alpha-
betical sequence as shown in the figure.
Tightening torque:
4.4 N·m (0.45 kgf-m, 3.3 ft-lb)
C: INSPECTION
Connect the lead harness to connector terminal of
fuel pump, and then apply the battery power supply
to check whether the pump operates.
WARNING:
• Wipe off the fuel completely.
• Keep the battery as far apart from fuel pump
as possible.
• Be sure to turn the battery supply ON and
OFF on battery side.
• Do not run the fuel pump for a long time un-
der non-load condition.
FU-00902
(A)
(G)
(H)
(F)
(B)
(D)
(C)
(E)
FU-00949
2
1
6
5
4
3
