EX(H4SO)-6
EXHAUST
Front Exhaust Pipe

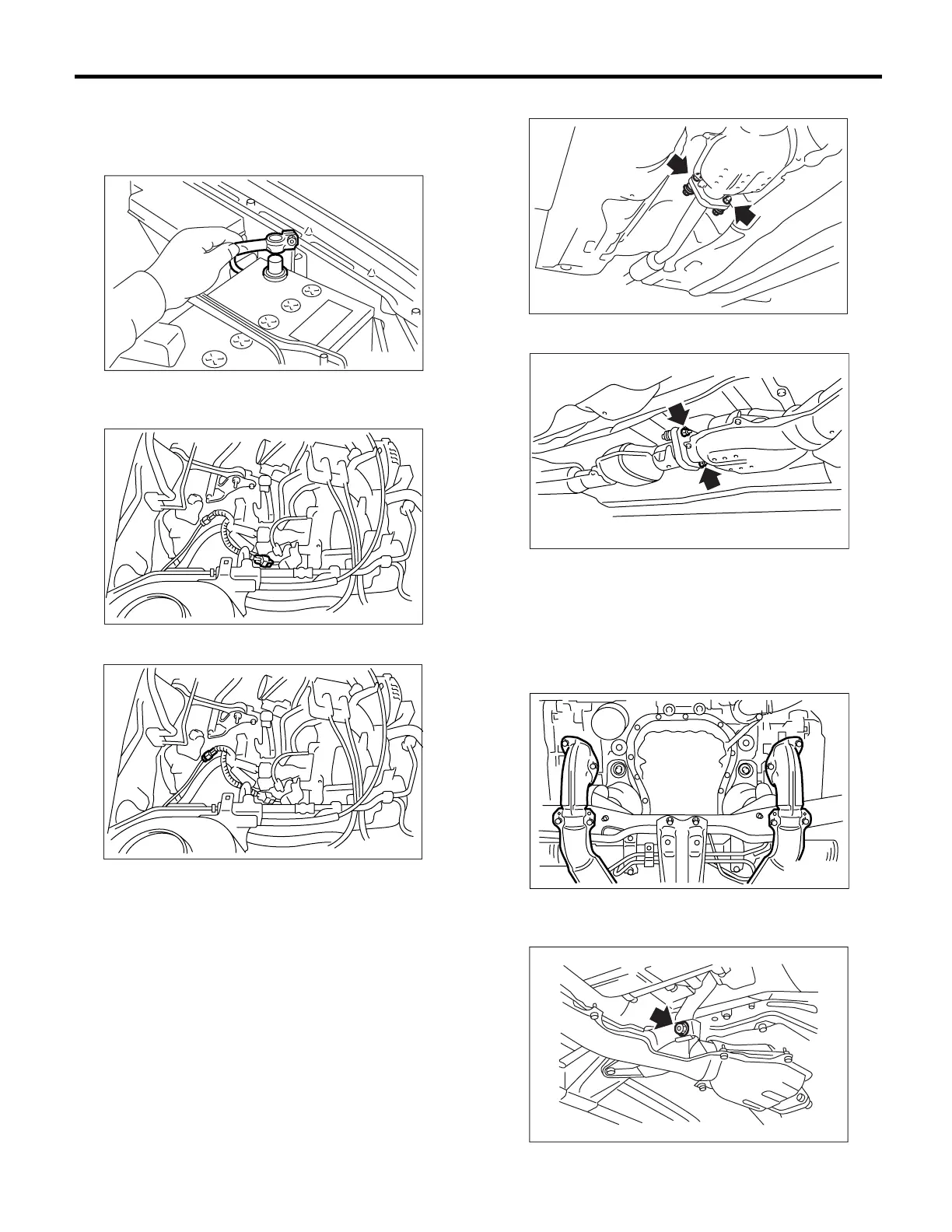

2. Front Exhaust Pipe
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Disconnect the front oxygen (A/F) sensor con-
nector.
3) Disconnect the rear oxygen sensor connector.
4) Lift-up the vehicle.
5) Separate the front and center exhaust pipe as-
sembly and rear exhaust pipe.
CAUTION:
Be careful, the exhaust pipe is hot.
• 1.6 L
• 2.0 L
6) Remove the under cover.
7) Remove the nuts which hold the front exhaust
pipe onto cylinder heads.
CAUTION:
Be careful not to pull down the front and center
exhaust pipe assembly.
8) Remove the bolt which installs the front and cen-
ter exhaust pipe assembly to hanger bracket.
FU-00009
EX-00029
EX-00030
EX-00125
EX-00031
EC-00009
EX-00038
To Next Page
